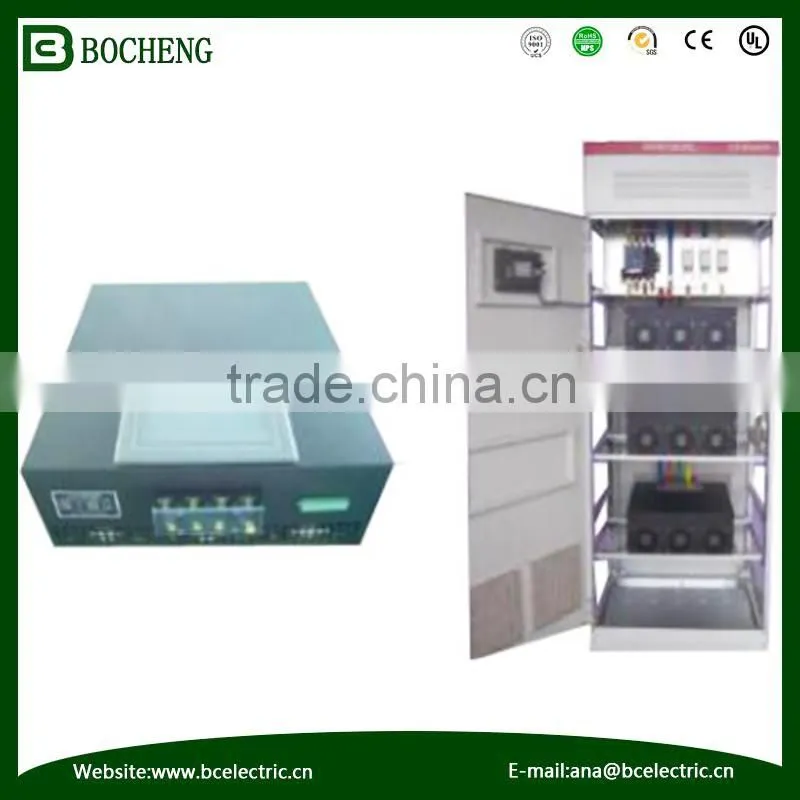

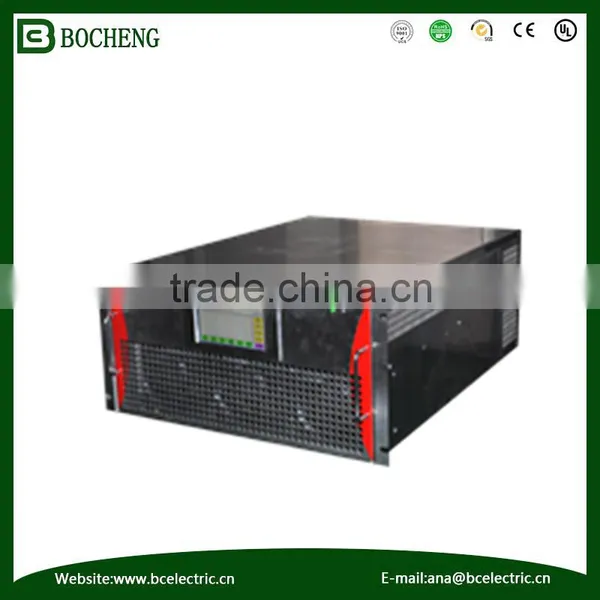

Active Power Filter Module Active Filter

Active Power Filter Module Active Filter photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BoCheng
Model Number:
BC-A-50-03-0.4-m
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name BoCheng
Model Number BC-A-50-03-0.4-m
Type Other, APF filter
Transfer Function High Pass
Package Type Surface Mount
Nominal Center Frequency 50/60Hz
3dB Bandwidth 3.75
Insertion Loss 100db
Input Impedance 50ohm
Stopband Attenuation 0-80dB
Product Description

APF advantage

Core of the main control system and the superior performance of the AC system by the new technology, combined with LiangKen company for many years experience in the application and the user views developed, the performance indicators have reached international advanced level leading, especially in small volume, low power consumption, advanced algorithms and high stability, and a variety of design and application program is well known in the industry, the product has made a number of core technology patent. Is one of the biggest high and low voltage complete set factory, switch factory, instrumentation, electrical equipment, transformers and other manufacturers of the most ideal choice.

Active power filter is a closed type indoor equipment, through the real-time detection of the load current waveform, get the need to compensate the harmonic current component and the reverse, triggered by the IGBT control, to infuse the reverse current to the power supply system, filter out (offset) harmonic function, guarantee power system safe and effective operation. Requirements for active power filter with advanced technology, the production technology is mature and reliable, easy installation and maintenance.

Protective Measures

Rapid melting protection

Over voltage protection

Voltage, current hardware,

software dual protection

Over temperature protection switch

Equipment soft start function

Certifications

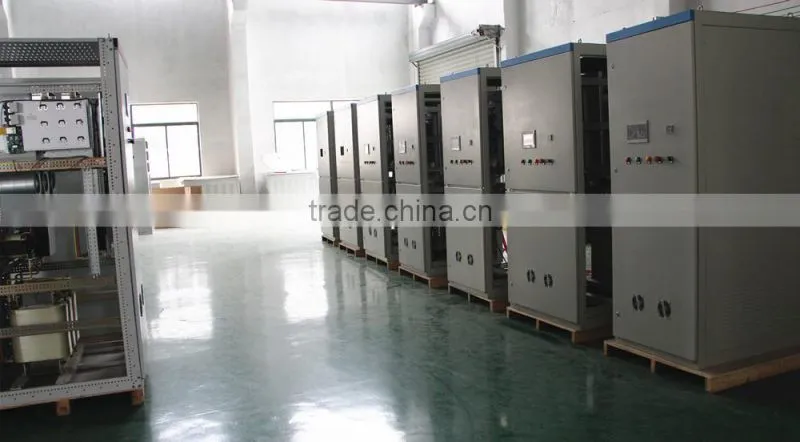

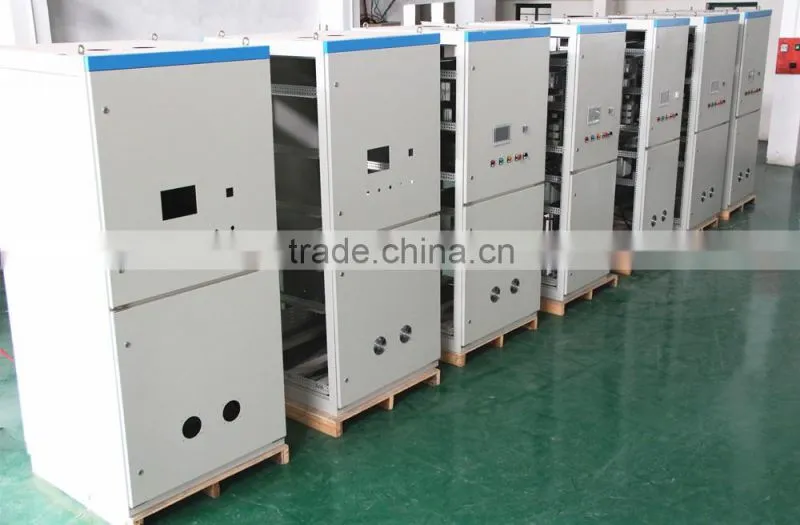

Detailed Images
Packing & Delivery
Our Company
FAQ
