LED panel light assembly line , led lighting units accessories
Detailed Description
This is abdalmonem from Egypt and I would like to customize "LED panel light assembly line" with the following specifications:
Condition: New
Voltage: 220V
Power(W): 5500
Weight: 4500kg
Dimension(L*W*H): 20000*2100*1800mm
Certification: CE/ RoHS
Warranty: 1year
After-sales Service Provided: Engineers available to service machinery overseas
part name: LED panel lights assembly line and led production line equipment
feature: automatic assembly line
available for: led bulbs tube and panel lights
application: for led lights assembly and testing
assembly speed: adjustable
led chips mounting: pick and place machine
solder pasting: high accuracy solder paste printer
led pcba equipment: automatic reflow oven
pcb loading style: automatic pcb magazine loader
led lights assembly style: long assembly belt conveyor

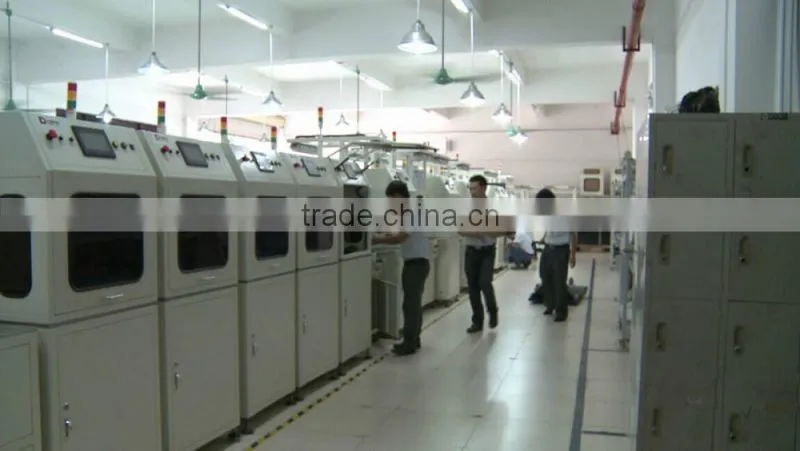

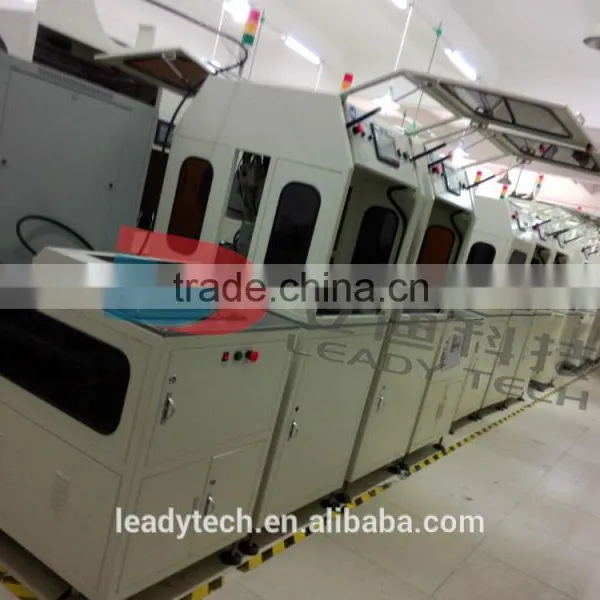

Whole line! LED bulb assembly line machine
Scope:
The assembly line is major for plastic cups, power board, heat cup, led plate, lamp lens. Including red punching, glue dispensing, thermal grease, screw locking, soldering, tunnel oven drying, high voltage test (bad products removed), FCT test, test, assembled bulb etc. work station. The device also has the advantages of high voltage test, FCT test data upload computer storage, production quantity counting, production data analysis. The whole line is controlled by industrial computer, through the TCP protocol, local area network for each site data collection and control.

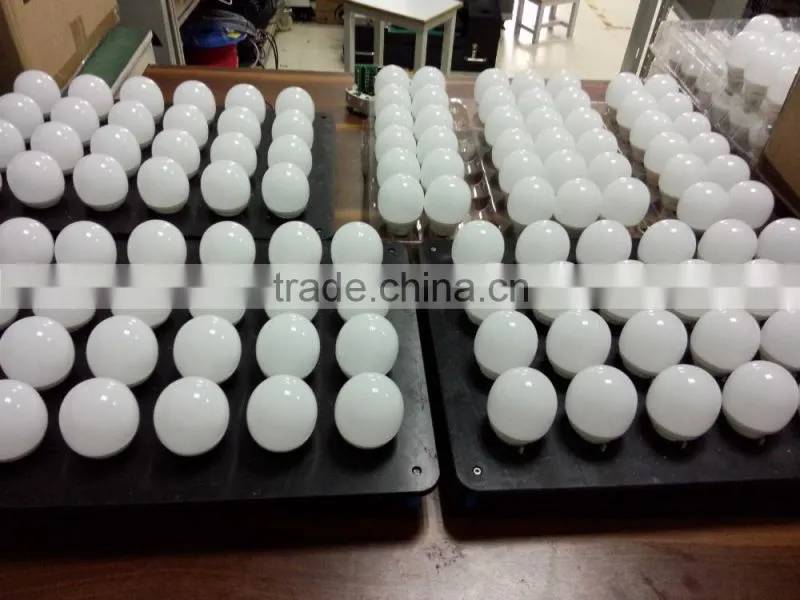

Apply for large power LED bulb lamp (such as :A60) assembly.
Specificton:
Outline Size :(L*W*H) 700*900*2000mm
:(X*Y*Z) 250*250*100mm
Diver Type :4axis servo motor
Coordinate Precision XYZ:±0.02mm
Positioning R Axis:±0.05°
Slide Guide: import side screw rod
Control:PC control sys
Program:256 groups,400dot /groups
Voltage:220VAC,50HZ
Power:20KW--50KW
Air Pressure:0.6Mpa
Remark: line length according to customized module quantity
