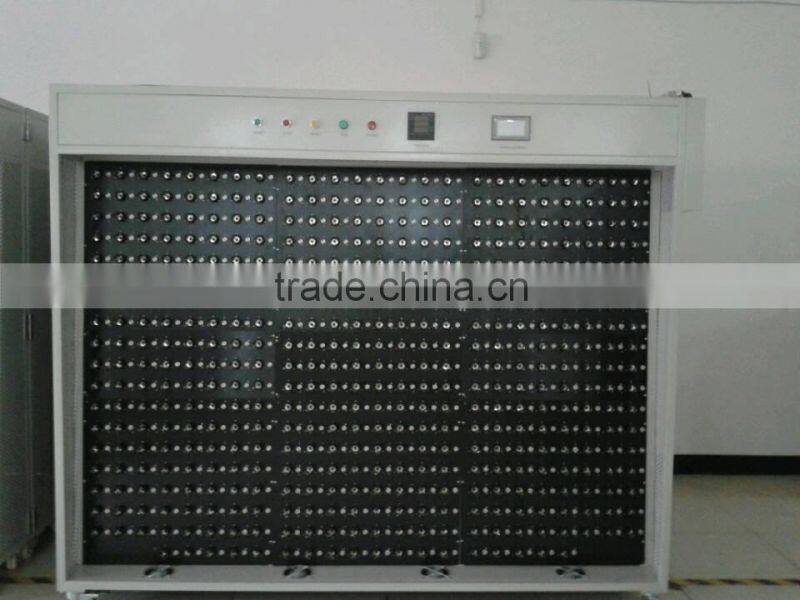

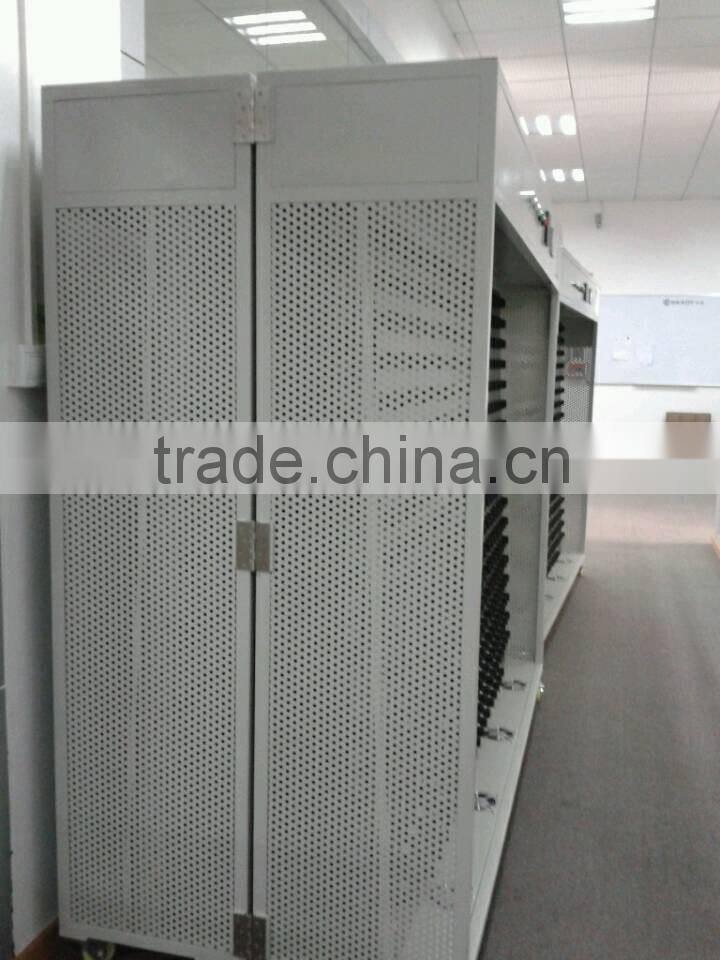

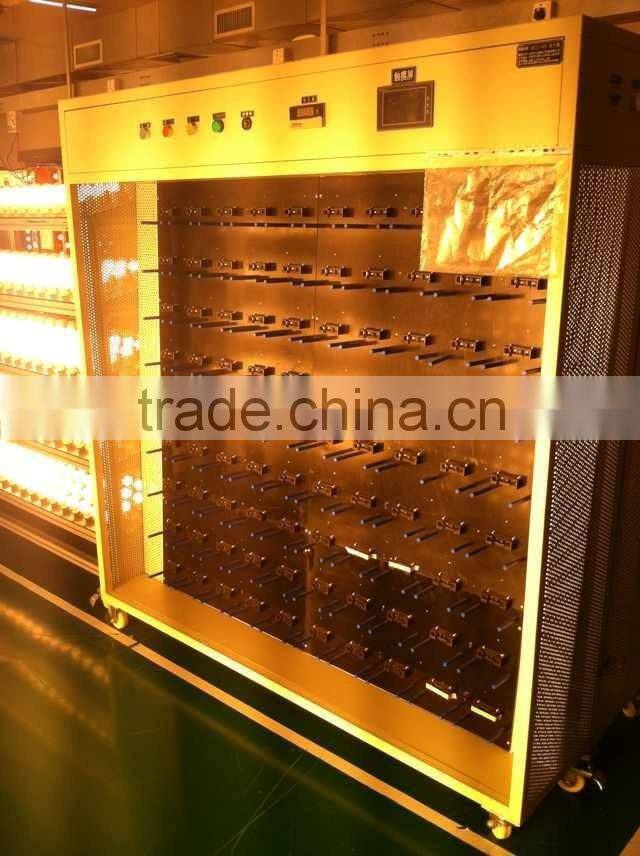

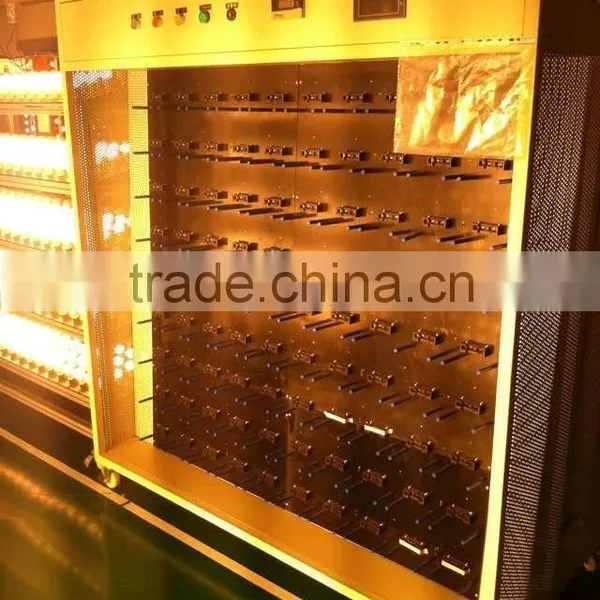

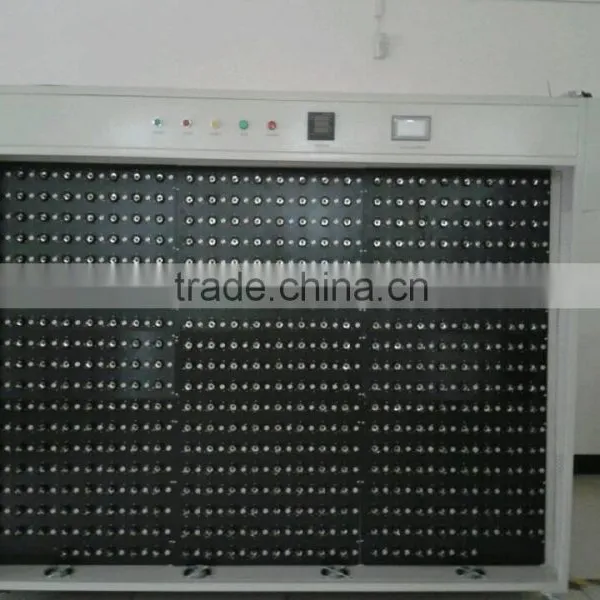

LED T5/T8/T10 tube light aging line
Used for LED bulbs finished products inspection aging through high voltage, normal voltage, low voltage, roaming and fluctuation voltage ,impact functions,high temperature zones to observe whether shortcircuit, capacitance burst and
black points will occur. Also used for inspecting the simulation daily use of LED lamp cycling circuit and roaming seasoning area. The power system uses frequency conversion speed regulation system, which is of low noise, easy for operation.
|
adopt Taiwan brand 1500w east cropland motor, WPS80 type 1:6 0 of the speed reducer, the domestic well-known brand 2 HP's island converter, frequency conversion stepless speed regulation, linear speed 1 -5 m/min can be adjusted. |
Totally five voltage regulators,each 10kw , the effective voltage area altogether designs seven zones, voltage regulator three of them 0-- 250 v adjustable, two of them voltage regulator 0-- 300 v adjustable
This system uses electric heated bars complete, a period of two pieces of 2000 w/set of electrothermal heating plate, temperature from room temperature - 60 degree, adjustable ,digital temperature control instructions.
Set any zone as cycling control zone. Shock-time by the PLC microcomputer control.
Digital display is used for voltage temperature control instructions , the whole system USES the Chinese brand xinjie PLC control, voltage regulator five, using a distribution control cabinet installed beside the machine with urgent stop switch convenient to stop in time
|
Aging about 1680 pieces LED bulbs once a time , aging time is about 6 MINUTES, According to work 10 hours every day calculation, a day of production for 21840 pieces of LED bulbs.
|
