Help CenterFully Automatic Screw Locking Machine for Electric Products Assembly
Related Products

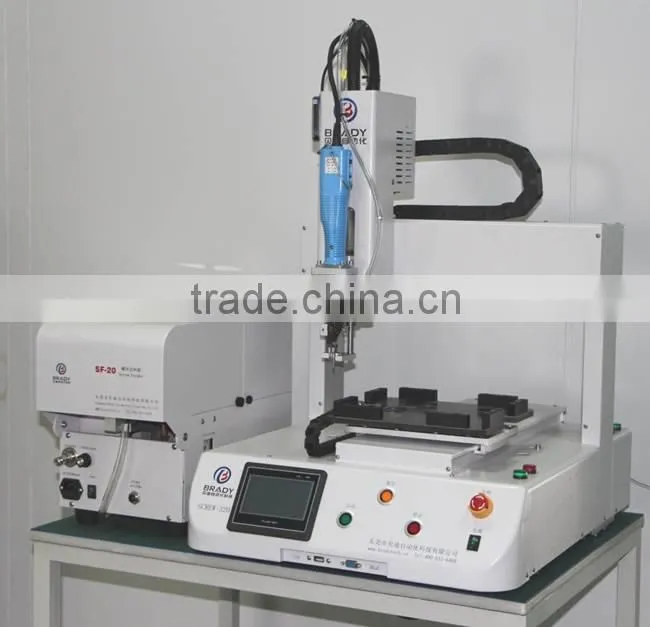

fully automatic screw locking machine for electric products assembly
screw locking machine for electric products assembly features:
1,High precision
2,the special design ensures the stableness during locking the screw
3,with strong adsorption power
4,can accurately Locking each of the screws
1,Reduce cost:Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency
2, efficiency: Fastening two kinds of screws at the same time,higher efficiency ,3600-4000pcs screw per hour. no waiting
3,More relax: single equipment for single worker, Just finished loading
4,Reliability:,Automatic alarm system, working >20 hours
5,Generality: Touch screen display programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management
Specifications
| Working area X/Y/Z(mm) | OB-SL331 X axle 300* Y axle 300*Z axle 100mm | X axle 500*Y axle 300*Z axle 100mm |
| speed(mm/sec) | 0.1~800/400 | |
| Repeat accuracy | ±0.02mm | |
| Program recording mode | 100 set,4000 points(USB support copy) | |
| Display model | Teaching pendant LCD(320*240) or touch screen | |
| Motor system | Japan precision micro-stepper motor | |
| Drive mode | timing belt + screw rod +guide rail | |
| power | AC110V/220V 300W(internal switch) | |
| I/O signal | 12 Inputs/12 Outputs | |
| Control | RS232 | |
| Edit model | Teach pendant | |
| Working environment Temperature | 5-40℃ | |
| Working environment Humidity: | 20-90% | |
| Suite model | M1.2-M3.0 | |
Instructions
- Strong suction mouth, to ensure that suck up the screw
- after each screws, at the same time of carrying up the screwing head, The second screw was sent to the jig, no need hand grasp screws, which can greatly improve the efficiency of assembly
- Quickly rule out the screw failure, continue to work directly in the original error point
- Strong commonality.Small volume, can cooperate with production line operation, convenient replacement products. According to coordinates setting , and also can be read CAD document complete setting .
- screws finish up, with sound, light alarm, convenient loading screw
- Using electronic sensors system for feeding ,no repeat feed, with fast back screw function.
automatic screw locking machine for electric products assembly applicable subject:
Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.
