Remote control socket wireless socket power outlet
Tech Intro
Self-powered remote control wireless socket requires no battery and no wire. It uses the unique energy harvesting technology and ultra-low-power wireless technology with worldwide patents pending.
When users press the button, energy converting module inside will change the mechanical energy into electric energy. Then the wireless module of the button sends the signals to receiver. The receiver receives the signals and react.
Advantages
It is designed with the character of conciseness and compactness and can be used with lamps, fans, space heaters, and other electronic devices. You can turn off the devices by remote control. And there are many advantages as follows.
1. no battery, no wire
2. work with radio frequency, 433MHz
3. easy to setup, and easy to use
4. stable performances
5. support remote wireless control
6.70 meters long range in the open area
7. products with top quality
8. 5 years of R&D experience of energy harvesting
9. plug it into any power outlet and make it instantly smarter
10 . shell with flame-resistant material
Specification
Socket |
Receiver |
Transmitter |
|
Power Supply |
AC 180-260V 50/60Hz |
Self-powered |
|
Operating Temperature |
-10℃~+50℃ |
-40℃~+60℃ |
|
Range(Open Field) |
70 meters |
||
RF Frequency |
433MHz |
||
Operating force |
|
<4N |
|
Current |
16A |
- |
|
Dimension |
53 X 95 X 29MM |
Φ66 X 23 MM |
|
Stand-by power |
<700mW |
- |
|
Load Power |
<3,000W |
- |
|
Dimensions |
|
|
|
Plug & Socket Type |
AU, EU, UK, US |
||
Grounding |
Standard grounding |
||
Type |
Plug with socket |
||
Product Material |
ABS |
||
Operation
Please confirm that you have turned off the power before removing or changing the socket.
Make sure that the load power is lower than 3000W
The metallic wall plate will decrease the operating range.

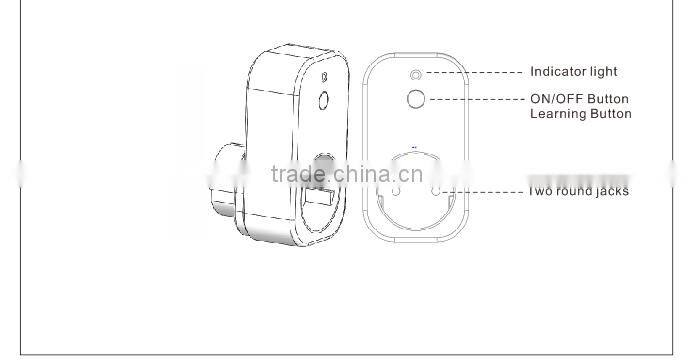

Socket
Turn off the power
- Connect the socket to the outlet on the wall and it is ready for working if the indicator light is on.
- Plug into the jacket of the socket with household appliance.
- Short press the transmitter, you can have remote control to turn on or turn off the power which the socket supplies.

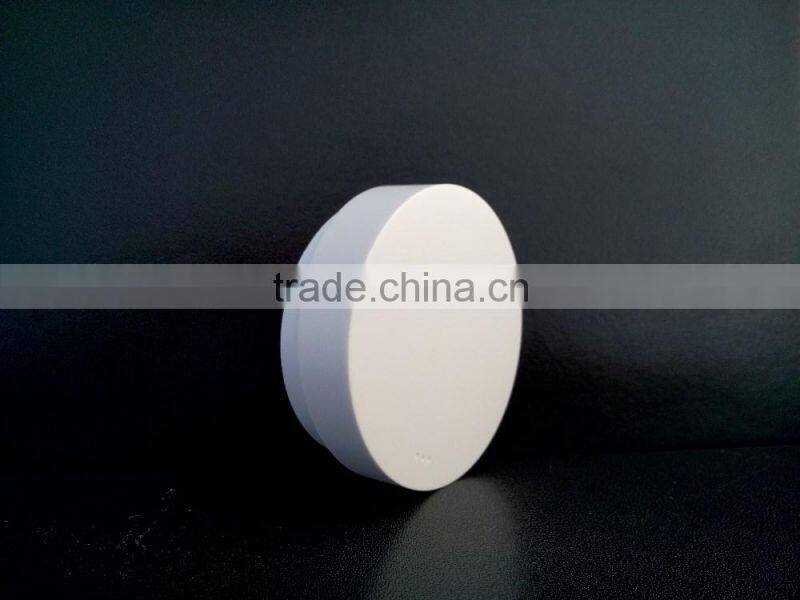

Remote control transmitter
Have a test before mounting the transmitter
1 Mount the transmitter with adhesive pad
Peel away one side of the adhesive pad,
Stick the adhesive pad on the back of the transmitter
Peel away the other side of the adhesive pad
Press the transmitter onto the desired positions for about 30 seconds
2 Mount the transmitter with screws and mounting base

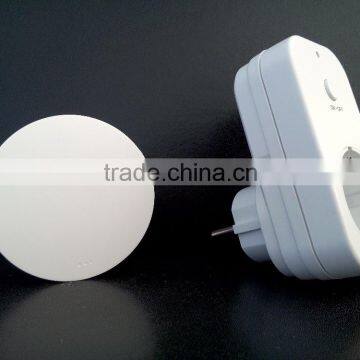

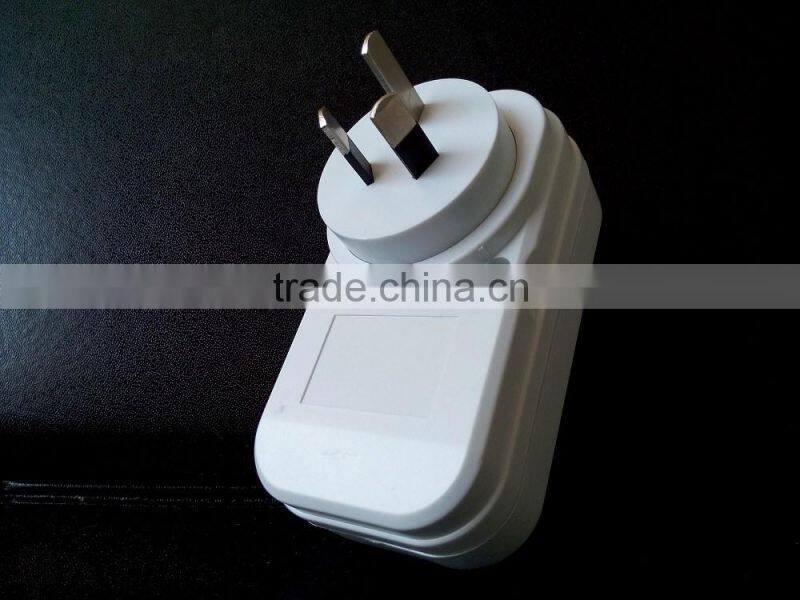

Pictures
