Specifications
Carbon fiber pipe decorative lighting:1.Temperature range: 200
2.Standard: UL 1441
3.Usage: lighting, household appliances

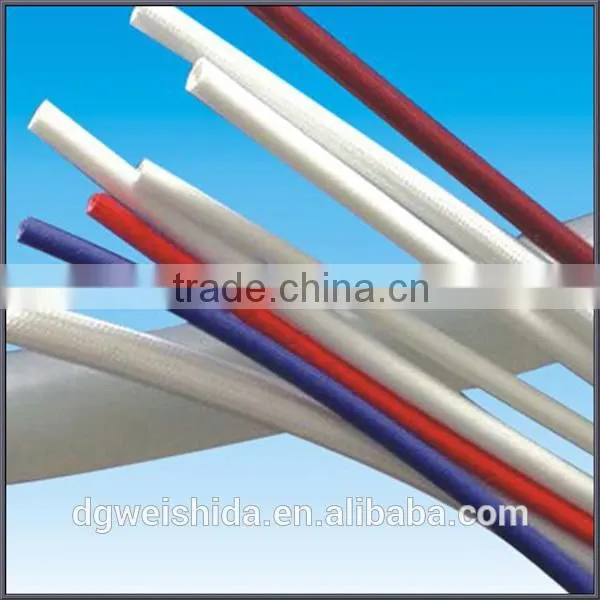

Carbon fiber air intake pipe for household appliances is adopt excellent materials,it is braided into tubes with non-alkali glassfiber,and then painted with Acrylic Resin,it is widely used in insulating protection of F Grade electrical machinery,home appliance,electric & heat equipment,special lightware etc.
Product Dimensions:
SIZE (mm) |
Inside diameter Tolerance (mm) |
Wall Thickness (mm) |
Unitlength (m) |
0.8 |
0.8+0.2/-0.1 |
0.30±0.05 |
100 |
1.0 |
1.0+0.2/-0.1 |
0.30±0.05 |
100 |
1.5 |
1.5+0.2/-0.1 |
0.30±0.05 |
100 |
2.0 |
2.0+0.2/-0.1 |
0.30±0.05 |
100 |
2.5 |
2.5+0.2/-0.1 |
0.30±0.05 |
100 |
3.0 |
3.0+0.3/-0.1 |
0.30±0.05 |
100 |
3.5 |
3.5+0.3/-0.1 |
0.30±0.05 |
100 |
4.0 |
4.0+0.3/-0.1 |
0.40±0.05 |
100 |
4.5 |
4.5+0.3/-0.1 |
0.40±0.05 |
100 |
5.0 |
5.0+0.35/-0.15 |
0.40±0.05 |
100 |
5.5 |
5.5+0.35/-0.15 |
0.40±0.05 |
100 |
6.0 |
6.0+0.35/-0.15 |
0.40±0.05 |
100 |
7.0 |
7.0+0.35/-0.15 |
0.40±0.05 |
50 |
8.0 |
8.0+0.5/-0.2 |
0.40±0.05 |
50 |
9.0 |
9.0+0.5/-0.2 |
0.40±0.05 |
50 |
10.0 |
10.0+0.5/-0.2 |
0.50±0.05 |
50 |
11.0 |
11.0+0.6/-0.3 |
0.50±0.05 |
50 |
12.0 |
12.0+0.6/-0.3 |
0.50±0.05 |
50 |
Specification:
Continuous Operating Temperature |
-60°C~+200°C |
Temperature Endurance |
200°C±2°C 168≥1/2Original voltage |
Aging Test |
260°C, 6hour, No carck |
Cold Bend |
No carck |
Horizontal Flame Test |
> 30 second |
Flame Retardance (VW-1) |
> 30second |
Volume Resistivity |
10" Ωcm |
Submerge Water Test |
No stickness, deforming, inteneration |
We can customised as per your requirements!
