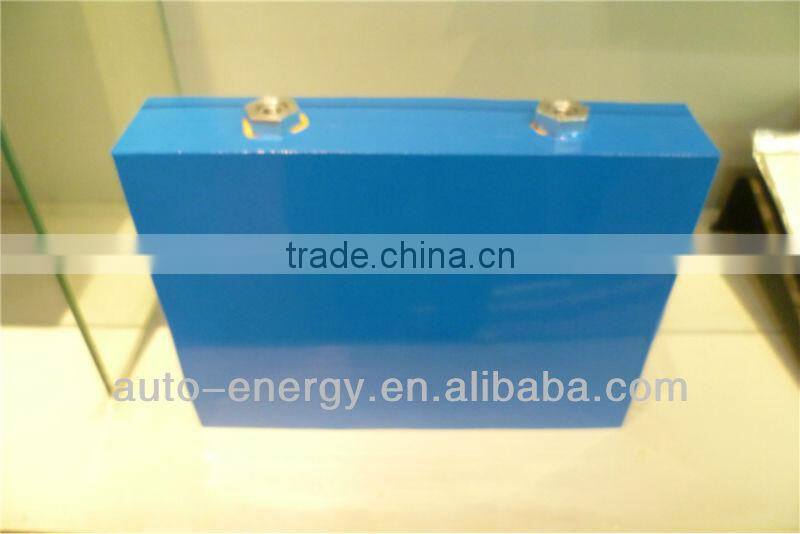

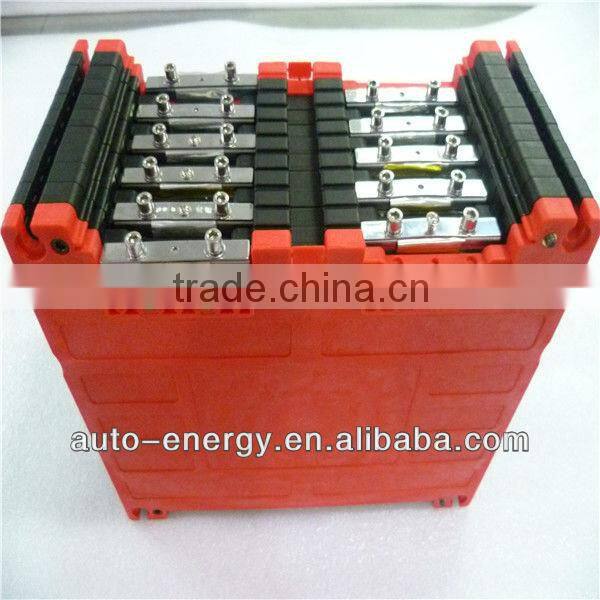

24V 100Ah Electric Car LiFePO4 Battery Pack for Storage Power Use

Negotiable MOQ: 20 Packs (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AET

Model Number:

24V100AH

Shenzhen Xinyongfeng Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AET

Model Number 24V100AH

Type Li-Ion

Nominal Voltage Other, 24V

Size Other, 165(T)*250(W)*315(H)(mm)

Nominal Capacity 100AH

24V 100Ah electric car LiFePO4 battery pack for storage power use

Item	Basic parameters
Model	24V100AH
Material of Anode/Cathode	LiFePO4/Graphite
Size	165(T)×250(W)×315(H)(mm)
Weight	About 21.2Kg
Nominal capacity	100Ah
Nominal Voltage	24V
Internal resistance	≤8mΩ
Energy density	≥130Wh/kg at 0.2CDC
Volumetric energy density	≥220WH/L at 0.2CDC
Discharge cut-off voltage	16V
Charge voltage	29.2V
Standard charging	0.2C constant current charge to 29.2V, then constant voltage 29.2V charge till charge current decline to≤0.05C
Standard discharging	0.2C CC discharge to 16V.
Low temperature performance	0.2C capacity higher than 70% of nominal capacity under -20°C
High temperature performance	0.5C capacity higher than 98% of nominal capacity under 55°C
Standard charge/discharge cycle life	Cycle life of standard charge/discharge capacity after 2000 cycles greater than 80% of initial capacity
Max .continual charge current	100A ( 1C)
Max. continual discharge current	200A (2C)
Max. Charge/discharge pulse current (10S)	400A (4C)
Operating temperature	Charging: 10~45°C, Discharging:-20~55°C
Storage temperature	Less than 1 year: 0~25°C Less than 3 months:-10~45°C
