Cylindrical battery manufacturers 3.2V 50AH high discharge rate battery with 300A continous 1000A peak current

FOB Price

USD $1 - $1.05 / Ampere

2500 Amperes(Min.Order)

Supply Ability 50000 Ampere / Amperes per Month
Port shenzhen/HK
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	AET	Model Number:	3.2V50AH
Usage:	Other, Car,Starting,HEV,EV	Voltage:	Other, 3.2V	Sealed Type:	Sealed
Maintenance Type:	Free	Size:	55(diameter)*380( Height)	Weight:	<1850g
Nominal Capacity:	50ah

Product Description

Super Power Batteries (Lithium Batteries) Manufacturer

---Shenzhen Auto-Energy Technology Co.,Ltd

Winding structure ,natural close fit,strong seismic resistance.
Zero dust, zero burr, to eliminate safety hidden trouble from source
Super performance in rate discharging
360 degree in any display, high space utilization
Long cycle life ,super cell consistency

1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car

2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair

3. E-tool: electric drill, electric saw, lawn mower and so on

4. Remote control cars, boat, aircraft, toys

5. Solar and wind power generation energy storage devices, Telecom base Station

6. Small medical equipment and portable equipment

Weight	Approx.1.80kg	Case material	Stainless Steel
Positive electrode	Lithium iron phosphate	Negative electrode	Graphite
Nominal voltage	3.2V	Nominal capacity	50AH
Impedance	≤2mΩ	Max. charge voltage	3.65V

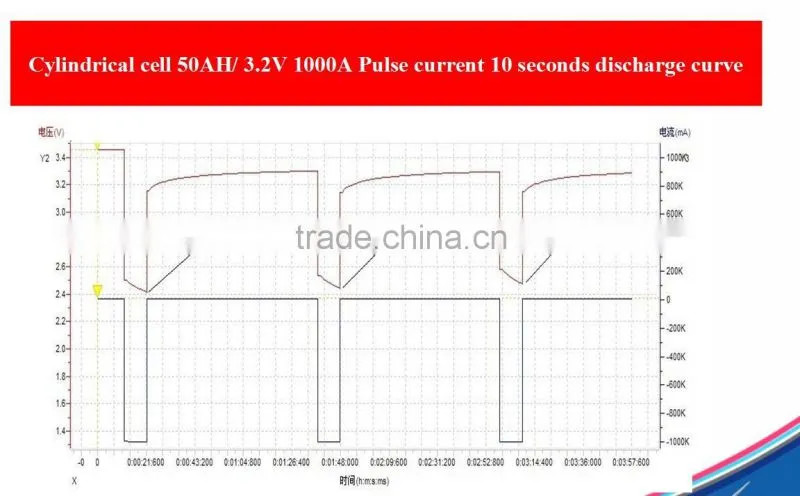

Continual charge current	100A	Max.pulse charge current(10s)	1000A

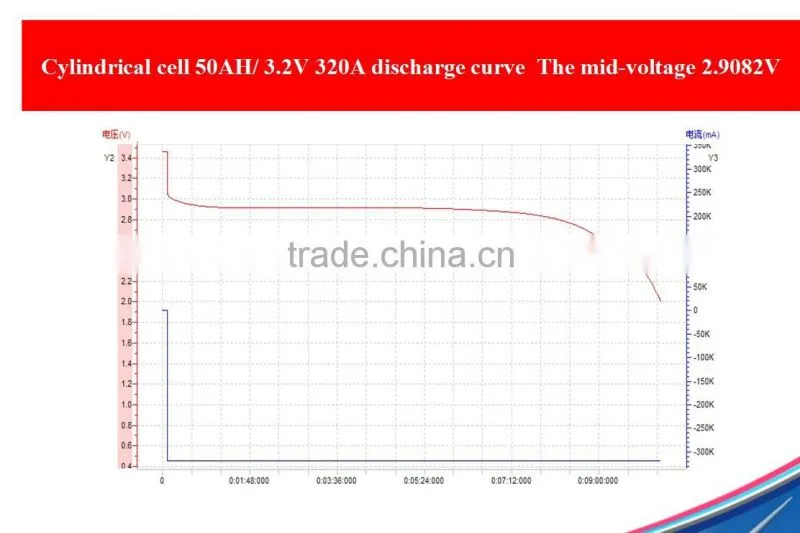

Max. discharge current	300A	Operating Temperature	Charging: 10~45℃, Discharging:-20~55℃
Cycle life at 20 °C and 100% DOD(1C charge; 1C discharge)		>2000cycles to 80% nominal capacity
Cycle life at 20 °C and 100% DOD(1C charge; 1C discharge)		>3000cycles to 60% nominal capacity

Our typical product ( battery is customized from 10-300ah for cell!!!)

No	Model	Nominal capacity (AH)	Nominal voltage (V)	Size (mm)	Cycle life
1	LFP10215160P	20AH	3.2V	10215160	³ 2000
2	LFP10460320P	100AH	3.2V	10460320	³ 2000
3	LFP15210260P	60AH	3.2V	15210260	³ 2000
4	LFP10320230P	50AH	3.2V	10320230	³ 2000
5	LFP20320230P	100AH	3.2V	20320230	³ 2000
6	LFP18460320P	200AH	3.2V	18460320	³ 2000
7	LFP380380S	20AH	3.2V	Diameter38*H380	³ 2000
8	LFP75380S	100AH	3.2V	Diameter75*H380	³ 2000
9	LFP55380S	50AH	3.2V	Diameter55*H380	³ 2000
10	LMT55380S	45AH	2.4V	Diameter55*H380	³ 20000
11	LFPT55380S	45AH	1.8V	Diameter55*H380	³ 20000
12	12V100AH	100AH	12V	70340295	³ 1500
14	48V50AH	50AH	48V	260380260	³ 1500
15	LMO55200S	30AH	3.7V	Diameter55*H200	³ 1000

OEM Service

What we can do:

1. All of our products have proceeded comprehensive testing before shippment;

2. Support imprint your logo on products;

3. OEM orders are warmly welcome!

Warranty and Return:

1. All products have been tested before ship out;

2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)

3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.

Should the battery or similar product be of interest to you, please contact me for further details including price.
