Specifications
24V rechargeable lifepo4 battery pack for e-bike1,more than 2000cycles life
2,high energy density
3,super capacitor ,safe
24V rechargeable lifepo4 battery pack for e-bike
1,more than 2000cycles life
2,high energy density
3,super capacitor ,safe
Material system ( included LFP/LMO/NCM) ,dimension and performance parameter can be customized.
24V 200Ah technical spec.
Item |
Basic parameters |
Model |
24V200AH |
Material of Anode/Cathode |
LiFePO4/Graphite |
Size |
405(T)×340(W)×295(H)(mm) |
Weight |
≤40kg |
Nominal capacity |
200Ah |
Nominal voltage |
24V |
Internal resistance: |
≤8mΩ |
Energy density |
≥130Wh/kg at 0.2CDC |
Volumetric energy density |
≥220WH/L at 0.2CDC |
Discharge cut-off voltage |
16V |
Charge voltage |
29.2V |
Standard charging |
0.2C constant current charge to 29.2V, then constant voltage 29.2V charge till charge current decline to≤0.05C |
Standard discharging |
0.2C CC discharge to 16V. |
ntinual charge current |
1C |
Max. continual discharge current |
2C |
Max. Charge/discharge pulse current |
4C |
Operating temperature |
Charging: 10~45°C |
Storage temperature |
Less than 1 year: 0~25°C Less than 3 months: -10~45°C |
High temperature performance |
0.5C capacity higher than 98% of nominal capacity at 55°C |
Low temperature performance |
0.2C capacity higher than 70% of nominal capacity at -20°C |
Standard charge/discharge cycle life |
Cycle life of standard charge/discharge capacity after 2000 cycles greater than 80% of initial capacity |
Battery Features:
1.Long life, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
Applications:
1. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.
2. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.
3. Power Supply: communication base station power supply, utility power supply, communication industry,
emergency power supply and other system standby power etc.
What we can do:
1. All of our products have proceeded comprehensive testing before shippment;
2. Support imprint your logo on products;
3. OEM orders are warmly welcome!
Warranty and Return:
1. All products have been tested before ship out;
2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)
3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.

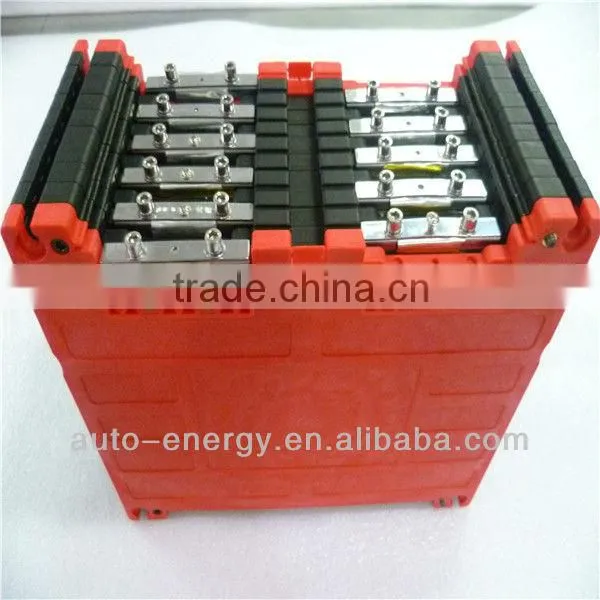

Pictures show:
