Specifications
Powerful 12 volt 100AH LifePO4 electronic car battery pack1,12v 100ah li-ion ev battery pack
2,Cycle life: 2000 times
Powerful 12 volt 100AH LifePO4 electronic car battery pack
1,12v 100ah li-ion ev battery pack
2,Cycle life: 2000 times
Item |
Basic parameters |
Model |
12V100AH |
Material of Anode/Cathode |
LiFePO4/Graphite |
Size |
70(T)×340(W)×295(H)(mm) |
Weight |
≤12kg |
Nominal capacity |
100Ah |
Nominal voltage |
12V |
Internal resistance: |
≤8mΩ |
Energy density |
≥130Wh/kg at 0.2CDC |
Volumetric energy density |
≥220WH/L at 0.2CDC |
Discharge cut-off voltage |
8.0V |
Charge voltage |
14.6V |
Standard charging |
0.2C constant current charge to 14.6V, then constant voltage 14.6V charge till charge current decline to≤0.05C |
Standard discharging |
0.2C CC discharge to 8.OV. |
ntinual charge current |
1C |
Max. continual discharge current |
2C |
Max. Charge/discharge pulse current |
4C |
Operating temperature |
Charging: 10~45°C |
Storage temperature |
Less than 1 year: 0~25°C Less than 3 months: -10~45°C |
High temperature performance |
0.5C capacity higher than 98% of nominal capacity at 55°C |
Low temperature performance |
0.2C capacity higher than 70% of nominal capacity at -20°C |
Standard charge/discharge cycle life |
Cycle life of standard charge/discharge capacity after 2000 cycles greater than 80% of initial capacity |
Product Characteristics:
· Soft pack, barren liquor ,excellent security, need not safety valve
· Long cycle life, high energy density,good cell consistency
· Low internal resistance, low self-discharge rate
· Superior performance in rate discharging
· 360 degree in any display, high space utilization
· Wide operating temperature : -20-55 degree
Applications:
1. Portable set: fishing devices.
2. EV: pure electric car, pure electric bus, hybrid electric vehicles, hybrid electric bus, recreational vehicles, chill cars.
3. Storage: solar and wind complementary stored energy streetlights, energy storage systems, household energy storage.
4. Power Supply: communication base station power supply, utility power supply, communication industry, emergency power supply and other system standby power etc.
Picture showing:

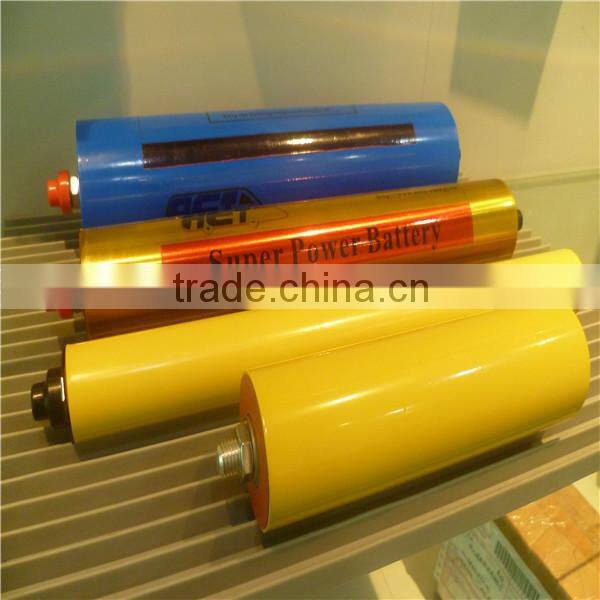

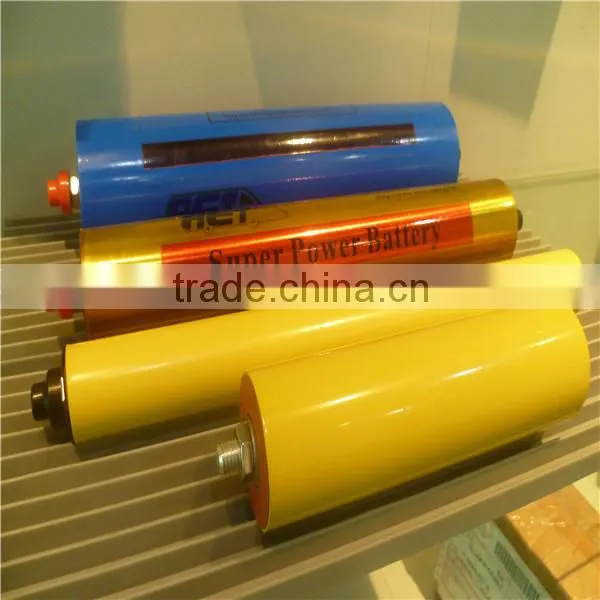

1,lifepo4 battery cells with different capacities

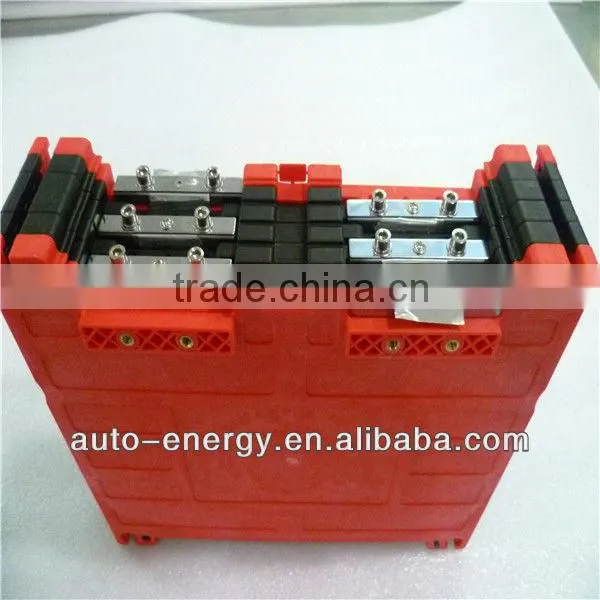

Lifepo4 battery pack cylindrical cells connected in series and parallel

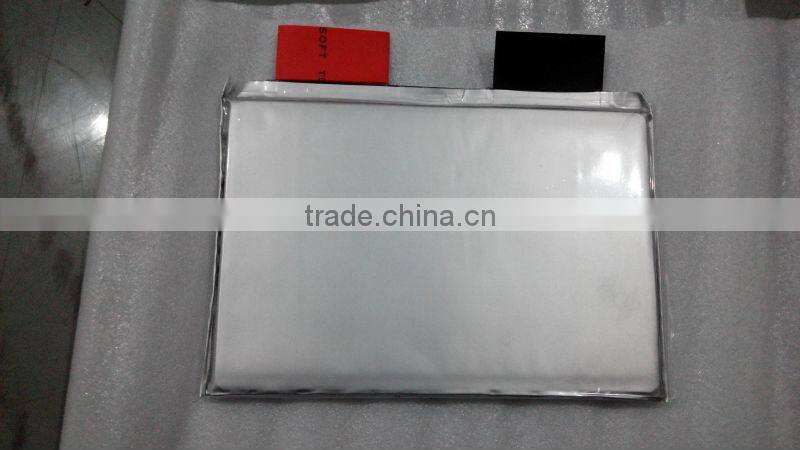

3.2v 100ah pouch single cells
