120v rechargeable battery lifepo4 with capacity and size can be customized/ 120v battery pack

Specifications

120v rechargeable battery pack
2000times at 0.2CDC
24 month warranty

Super Power Batteries (Lithium Batteries) Manufacturer---Shenzhen Auto-Energy Technology Co.,Ltd

•

  P

•   Soft pack,  barren liquor ,excellent security, need not safety valve

  · Large capacity . long cycle life, high energy density

  · Low internal resistance,  low self-discharge rate

  · Superior performance in rate discharging

  · 360 degree in any display, high space utilization

  · Wide operating temperature : -20-55 degree



• 1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car

  2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair

  3. E-tool: electric drill, electric saw, lawn mower and so on

  4. Remote control cars, boat, aircraft, toys

  5. Solar and wind power generation energy storage devices, Telecom base Station

  6. Small medical equipment and portable equipment










  Weight	Approx.1.80kg	Case material	Red-black plastic case
  Positive electrode	Lithium iron phosphate	Negative electrode	Graphite
  Nominal voltage	3.2V	Nominal capacity	50AH
  Impedance	≤2mΩ	Max. charge voltage	3.65V
  Continual charge current	100A(2C)	Max.pulse charge current(10s)	500A(10C)
  Max. discharge current	300A(3C)	Operating Temperature	Charging: 10~45℃, Discharging:-20~55℃
  Cycle life at 20 °C and 100% DOD(1C charge; 1C discharge)		>2000cycles to 80% nominal capacity
  		>3000cycles to 60% nominal capacity



















  Our typical product ( battery is customized from 10-300ah for cell!!!)



No	Model	Nominal capacity  (AH)	Nominal voltage (V)	Size (mm)	Cycle life
1	LFP10215160P	20AH	3.2V	10*215*160	³ 2000
2	LFP10460320P	100AH	3.2V	10*460*320	³ 2000
3	LFP15210260P	60AH	3.2V	15*210*260	³ 2000
4	LFP10320230P	50AH	3.2V	10*320*230	³ 2000
5	LFP20320230P	100AH	3.2V	20*320*230	³ 2000
6	LFP18460320P	200AH	3.2V	18*460*320	³ 2000
7	LFP380380S	20AH	3.2V	Diameter38*H380	³ 2000
8	LFP75380S	100AH	3.2V	Diameter75*H380	³ 2000

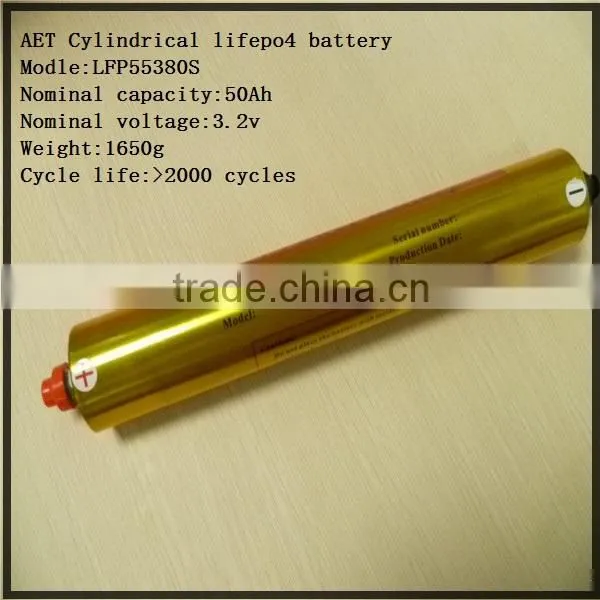

9	LFP55380S	50AH	3.2V	Diameter55*H380	³ 2000
10	LMT55380S	45AH	2.4V	Diameter55*H380	³ 20000
11	LFPT55380S	45AH	1.8V	Diameter55*H380	³ 20000
12	12V100AH	100AH	12V	70*340*295	³ 1500
14	48V50AH	50AH	48V	260*380*260	³ 1500
15	LMO55200S	30AH	3.7V	Diameter55*H200	³ 1000





What we can do:

1. All of our products have proceeded comprehensive testing before shippment;

2. Support imprint your logo on products;

3. OEM orders are warmly welcome!

Warranty and Return:

1. All products have been tested before ship out;

2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)

3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.







Should the battery or similar product be of interest to you, please contact me for further details including price.
