Specifications
lithium titanate battery pack for EV HEV UPS Energy storage1,20000 cycles life span
2, -20'C-60'C work temp
3,MSDS/UN38.3
lithium titanate battery pack for EV HEV UPS Energy storage
Item |
Basic parameters |
|
Model |
LMT55380S |
|
Material of Anode/Cathode |
LiMnO2/Li4Ti5O12 |
|
Size (Diameter*Height)) |
Φ55*H345mm(without terminals) |
|
Weight |
≤1850g |
|
Nominal capacity |
45Ah |
|
Nominal voltage |
2.4V |
|
Internal resistance: |
≤2mΩ |
|
Energy density |
≥60Wh/kg at 0.2CDC |
|
Volumetric energy density |
≥130WH/L at 0.2CDC |
|
Discharge cut-off voltage |
1.5V |
|
Charge voltage |
3.0V |
|
Standard charging |
0.2C constant current charge to 3.0V, then constant voltage 3.0V charge till charge current decline to≤0.05C |
|
Standard discharging |
0.2C CC discharge to 1.5V. |
|
Max .continual charge current |
135A(3C) |
|
Max. continual discharge current |
135A(3C) |
|
Max. Charge/discharge pulse current |
1000A |
|
Operating temperature |
Charging: 10~45°C |
|
Storage temperature |
Less than 1 year: 0~25°C |
|
High temperature performance |
0.5C capacity higher than 98% of nominal capacity at 55°C |
|
Low temperature performance |
0.2C capacity higher than 70% of nominal capacity at -20°C |
|
Standard charge/discharge cycle life |
Cycle life of standard charge/discharge |
We are the unique golf cart battery manufacturer in China of highcapactiy cylindrical battery 10-100AH for cell!!! diffrent types of battery series which contain LFP, LMO ,NMC, LTO .We can customizeproducts according to your performance parameters.
The most reasonable structure decides the future of power battery!!!
As well , you are welcomed to visit our website: to know us more.

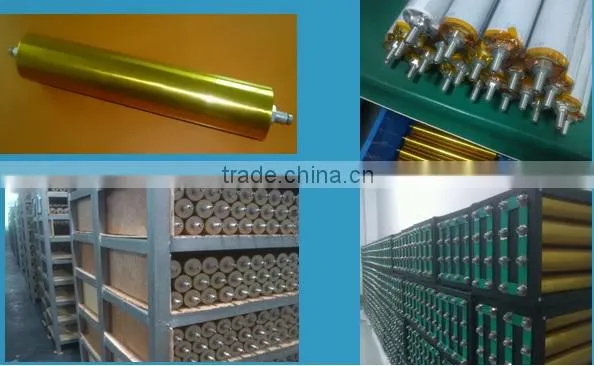

Pictures show:
What we can do:
1. All of our products have proceeded comprehensive testing before shippment;
2. Support imprint your logo on products;
3. OEM orders are warmly welcome!
Warranty and Return:
1. All products have been tested before ship out;
2. All products have 1 year warranty. ( We will Changing or Refunding our products if problems appearanced in 1 year, in the case of correct operation according to the technical specification.)
3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.
