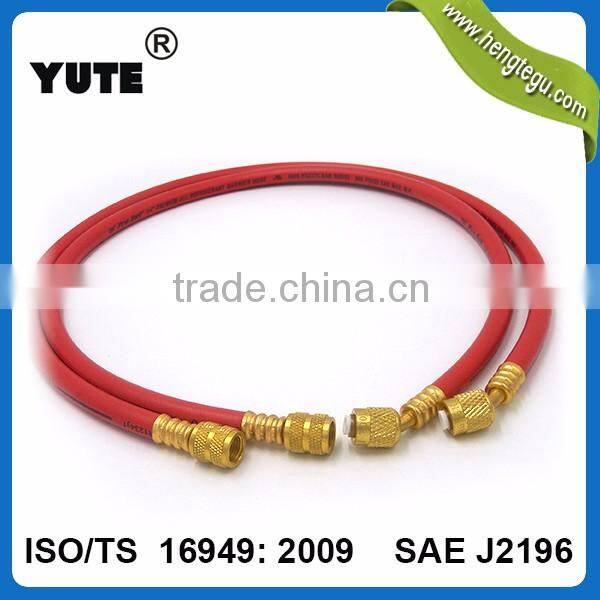

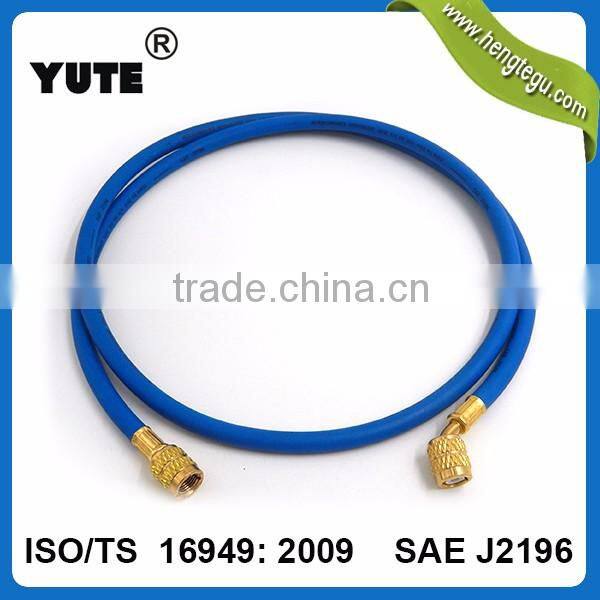

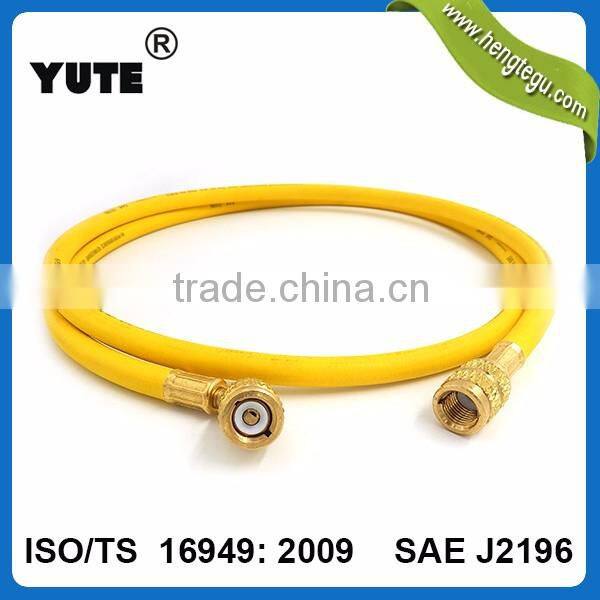

SAE J2196 YUTE 1/4 inch standard R134a refrigerant charging hose with fittings
Applications :
Deisgned for charging/recovery of refrigerant (R12 ,R22 ,R134a, R410a, R502, R404, R407, R1234yf) for wide range of automobile/household/precision air conditioning applications .
Construction:
Barrier: Ageing resistant high performance nylon
Tube: Refrigerant resistant synthetic rubber with low permeability
Reinforcement: High tensile braided fibers
Cover: Weather resistant and aging resistant synthetic rubber with red/blue/yellow/black
Temparature Range:-30°C~+110°C
Standards: SAE J2196 / 2888
Specifications:
ITEM |
I.D |
O.D |
Working pressure |
Burst pressure |
Weight |
Application |
|||
mm |
mm |
PSI |
Bar |
PSI |
Bar |
Ib/ft |
Kg/m |
||
CH-H001 |
5.5 |
11.5 |
500 |
35 |
2500 |
175 |
0.07 |
0.115 |
R12,R22,R502,R404 |
CH-H002 |
5.5 |
11.5 |
600 |
41 |
3000 |
205 |
0.07 |
0.115 |
R134a |
CH-H003 |
5.5 |
11.5 |
800 |
55 |
4000 |
275 |
0.07 |
0.115 |
R410a |
CH-H004 |
5.5 |
11.5 |
800 |
55 |
4000 |
275 |
0.08 |
0.120 |
R1234yf |

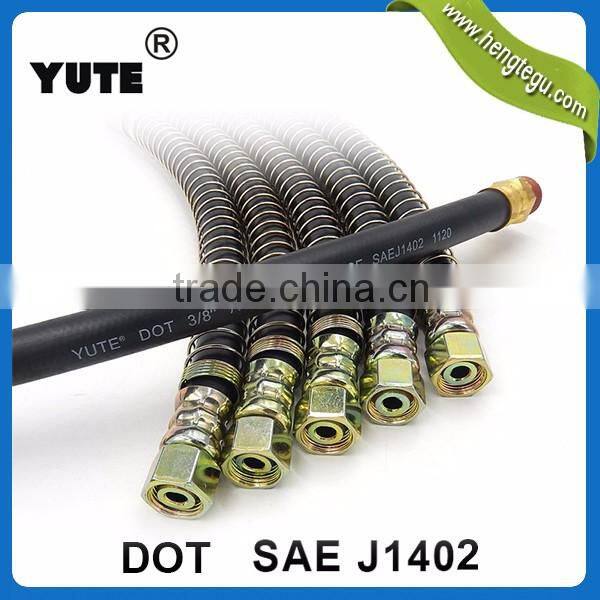

Fuel Hose / Brake Hose

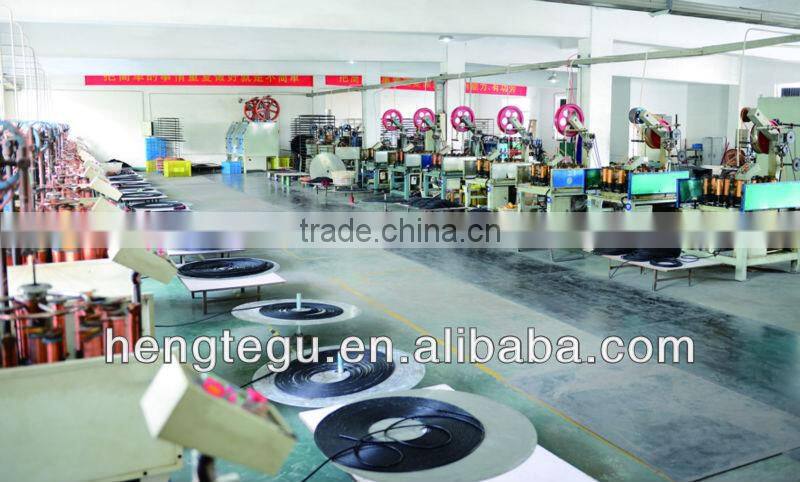

Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.
At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerantion charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification.
Test Instrument
- Customized of kind specification according to customer's requirement.
- Can provide OEM service .
- Accept a small trial order.
- Delivery time:15 days.
Question: What kind of payment your company accept? |
Answer: T/T, L/C, West Union, Paypal etc . |
Question: How do you guarantee the quality? |
|
Answer: We have strict quality management system, thorough check products before packing . |
Question: Can you send samples for testing? |
Answer: Yes.We can provide free samples for testing. |
