Home > Products > Promotion Items > Low Permeability 1/4 Inch Sae J30 r9 Gasoline Rubber Hose for Auto Parts
Low Permeability 1/4 Inch Sae J30 r9 Gasoline Rubber Hose for Auto Parts
- ningbo/shanghai
- T/T D/P D/A Credit Card
You May Like
-
1/8 Inch Sae J30 r9 Oil Resistant Automotive Hose for Fuel Systems Parts
-
Best Selling Heat Resistance Sae J30 r9 Auto Oil Hose for Fuel Machine
-
HOT Product Sae J30 r9 Oil Resistant Automotive Hose for Fuel System
-
High Quality 3/16 Inch Sae J30 r9 Gasoline Rubber Hose Delivery Fuel Oil
-
ISO/TS 16949 5/16" x 100' Smooth Wrapped Volvo Parts Diesel Fuel Hose
-
w p 300 Psi b p 1200 Psi 6mm Fuel Oil Rubber Hose for Fuel Machine
Product Details
| Type | Fuel Pump | Size | 1/4'' | |
| Car Make | Diesel Car | OE NO. | 1264704175 | |
| Place of Origin | Zhejiang, China | Brand Name | YUTE | |
| Model Number | OEM | Warranty | 5 Years |
Product Description

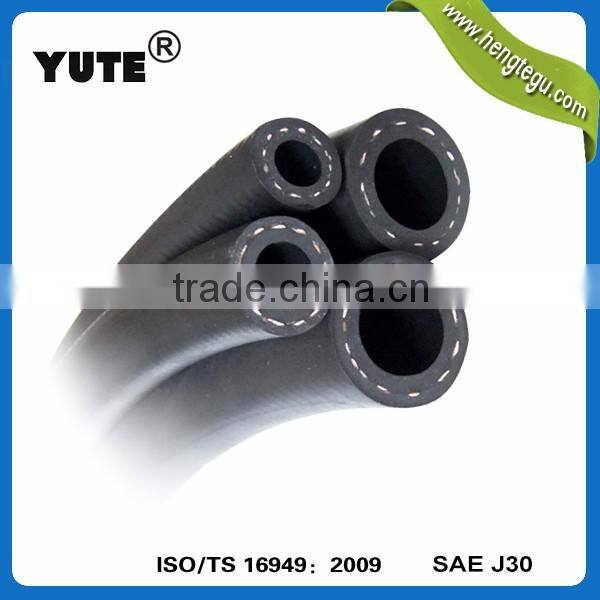

low permeability 1/4 inch sae j30 r9 gasoline rubber hose for auto parts
Specifications( sae j30 r9 gasoline rubber hose ) | |
Tube: Fuel and oil resistant smooth bore
Reinforcement: High tensile braided textiles
Cover: Resistant to chemical attack or swelling by gasoline,oxidized gasoline,E85 gasoline anddiesel fuel | Standard: SAE J 30R6/R7/R9/R10 DIN 73379 Type 2A |
Marking: Manufacture’s identification/Fuel hose/Size/Standard/W.P and B.P | |
Working Temperature: -40℃~ +120℃ (-40 F ~ +248F) | |
Packaging: 20 meters/roll or according to customer’s requirements | |
Applications: Designed for conveying gasoline E-85 gasoline,diesel and bio-diesel fuel in Automobile industry | |
Sizes and performance parameters :
NO | I.D | Refer to O.D | Working pressure | Burst pressure | approximate Weight | |||||
(inch) | (mm) | (inch) | (mm) | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |
sae j30 r9 gasoline rubber hose
Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.
At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerant charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification
Q1:Where is the main market in your products? |
A: Europe,South America, North America,Southeast Asia |
Q2:Do you have passed any certificate? |
A: ISO/TS 16949:2009,3C,RoHS |
Q3:How long is the warranty of the sae j30 r9 gasoline rubber hose? |
A:The warranty is 5 years. |
1.Free samples can be sent for testing |
2.Accept OEM service and small trail order |
3.Your inquiry related to our products or prices will be replied in 8 hrs |
4. Well-trained and experienced staffs to answer all your inquires in fluent English |
5.Distributorship are offered for your unique design and some our current model and specification |
6.Protection of your sales area ideas of design and all your private information |
How to contact us ?
Send the inquiry details in the below for free samples ,
click "Send" now !
Contact Us
- Yuyao Hengtegu Auto Parts Factory
- Contact nameMark Zhu Chat Now
- Phone86-574-62056851
- AddressNO.108 Xiaolingtou,Linshan Town, Ningbo, Zhejiang
