Sae J30 High Performance High Pressure Reinforced Rubber Fuel Hose

FOB Price

US$ 1.17 - 1.39 / Meter

1000 Meters(Min. Order)

Port ningbo/shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	YUTE
Model Number	Customized

Product Description

sae j30 high performance high pressure reinforced rubber fuel hose

Product Description

Specifications( sae j30 r9 standard rubber fuel hose )

Tube:

Fuel and oil resistant smooth bore

Reinforcement:

High tensile braided textiles

Cover:

Resistant to chemical attack or swelling by gasoline,oxidized gasoline,E85 gasoline anddiesel fuel

Standard:

SAE J 30R6/R7/R9/R10

DIN 73379 Type 2A

Marking:

Manufacture’s identification/Fuel hose/Size/Standard/W.P and B.P

Working Temperature:

-40℃~ +120℃

(-40 F ~ +248F)

Packaging:

20 meters/roll or according to customer’s requirements

Applications:

Designed for conveying gasoline E-85 gasoline,diesel and bio-diesel fuel in Automobile industry

Sizes and performance parameters :

NO	I.D		Refer to O.D		Working pressure		Burst pressure		approximate Weight
NO	(inch)	(mm)	(inch)	(mm)	MPa	Psi	MPa	Psi	kg/m	lbs/ft
1	1/8	3.2±0.2	0.35	9±0.3	2.06	300	8.27	1200	0.078	0.12
2	5/32	4±0.2	0.4	10±0.3	2.06	300	8.27	1200	0.092	0.14
3	3/16	4.8±0.2	0.43	11±0.3	2.06	300	8.27	1200	0.108	0.16
4	1/4	6.3±0.3	0.5	12.7±0.3	2.06	300	8.27	1200	0.134	0.2
5	5/16	8.0±0.3	0.56	14±0.3	2.06	300	8.27	1200	0.147	0.22
6	3/8	9.5±0.3	0.63	16±0.4	2.06	300	8.27	1200	0.182	0.27
7	15/32	12±0.3	0.75	19±0.5	2.06	300	8.27	1200	0.238	0.35
8	1/2	12.7±0.4	0.78	20±0.5	2.06	300	8.27	1200	0.262	0.39
9	5/8	16±0.4	0.94	24±0.5	1.03	150	4.12	600	0.351	0.52
10	3/4	19±0.4	1.13	28.8±0.5	1.03	150	4.12	600	0.515	0.77
11	1	25.4±0.5	1.38	35±0.6	1.03	150	4.12	600	0.637	0.95

Detailed Images

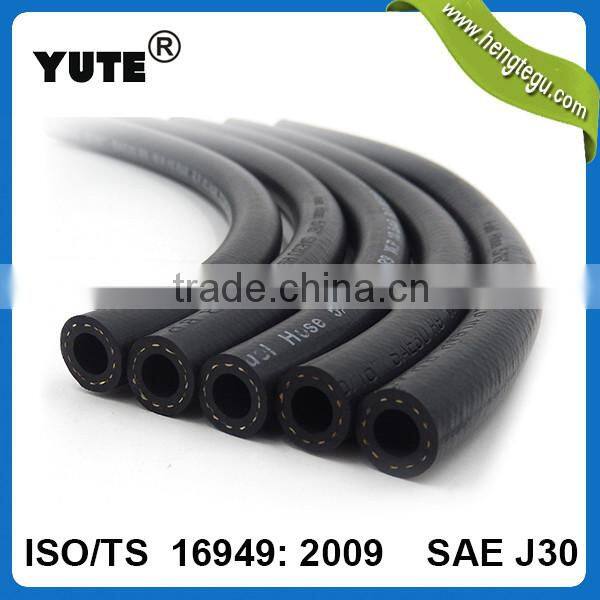

sae j30 r9 standard rubber fuel hose

Packaging & Shipping

Company Information

Yuyao City Hengtegu Auto Parts Factory is located in Linshan Town, Yuyao City, Zhejiang Province, from hangzhou international airport 40 kilometers, traffic is very convenient.Integrates development –manufacturer - sales of professional designer &manufacturer of rubber hose , now has more than 60 employees, including technical personnel more than 30% of the total number of employees, annual output of ten million meters of all kinds of rubber hoses.

At present, the products are widely application in Automobile manufacturers - Auto aftermarket - Engineering machinery - Refrigeration - Welding industry, the main products are: fuel hose,brake hose, EPDM air hose, fuel hose,diesel hose, refrigerant charging hose, air conditioning hose and oxygen/ acetylene hose etc.Products are exported to Europe,American and Southeast Asia market, quality and service well received by customers, in 2013 passed the ISO/TS16949:2009 quality management system certification

Family

Factory

Process flow

Certifications

FAQ

Q1:Where is the main market in your products?

A: Europe,South America, North America,Southeast Asia

Q2:Do you have passed any certificate?

A: ISO/TS 16949:2009,3C,RoHS

Q3:How long is the warranty of the sae j30 r9 standard rubber fuel hose?

A:The warranty is 5 years.
