high quality Metal capacitor pressure sensor
- 5000 Piece / Pieces per Month
- Shanghai port
- T/T Credit Card PayPal
- New 913A0124H01 York FRICK low-pressure pressure sensor, pressure range 0-200psi
- New 913A0124H02 York FRICK high-pressure pressure sensor, pressure range 0-500psi
- HBM S Type S9M Force Load Cell
- HBM CFT+ Force Sensor
- HBM C15 Force Transducer With 4MV/V Signal Output
- HBM CFT Series Piezoelectric Force Transducer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Enbang | Model Number: | EB2088T |
Product Description

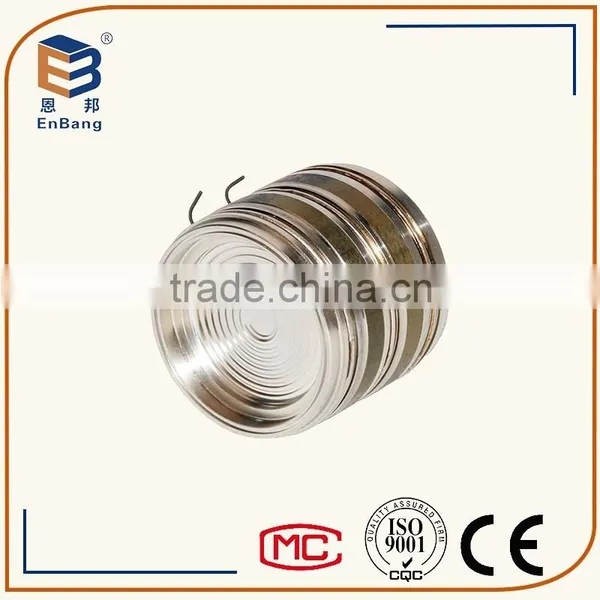

3351 Metal Capacitive Diaphragm
The type 3351 film is a type 1151 metal capacitive pressure sensor core, which is unique in the package and integrated in a sealed chamber, which provides a real time temperature parameter for the digital compensation circuit of the sensor. Therefore, the film can be accurately compensated for temperature. In this way, the transmitter used 3351 capsule, the accuracy level of which can usually reach 0.1.
Type 3351 membrane has all the advantages of type 1151 sensor. If the combination of the digital circuit with the internal package, it can provide the 4-20mA output signal, HART protocol optional. Widely used in chemical, water and electricity, metallurgy and other industrial areas of the capacitive transmitter, which is the core part of the 3351 Series Capsule.
Main features:
Use of advanced customized anaerobic sintering furnace, sensor filled pipe and glass sintering with atmospheric isolation, filled pipe does not produce oxide layer, to avoid the short circuit phenomenon caused by oxide sensor center diaphragm and between the capacitor plates.
Adopt computer control positioning and tensioning technology, make the center diaphragm accurate positioning, moderate tension, accuracy is greatly improved.
Adopt imported high quality material and the center diaphragm filled with silicone oil.
] every film box strictly according to the process after more than 1000 times of fatigue aging test, and ensure the stability of the product by 5 ~ 60MPa bi-directional single overload test and static test.
Type code:
Use the following chart to interpret the type code found on either label.
3351 Technical Specification: | |
Accuracy: | ±0.075%,0.1% 0.2% 0.5% |
Stability: | 0.2% per year |
Temperature range: | (-40~+104)℃ |
Influence of ambient temperature: | Zero error ±0.25%F.S./10℃ |
Span error: | ±0.5%F.S./10℃ |
Code | Model | Measurement Span | Film Thickness | Static Pressure MPa | DR | AP | GP | DP | HP |
1 | 2E | 0-0.16~1kPa | 35.6mm | 2.5 | * |
|
|
|
|
2 | 3E | 0-1~6kPa | 35.6mm | 4 |
|
| * | * | * |
3 | 4E | 0-6~40kPa | 35.6mm | 10 |
| * | * | * | * |
4 | 5E | 0-40~200kPa | 35.6mm |
| * | * | * | * | |
5 | 6E | 0-0.16~1MPa | 37.0mm |
| * | * | * | * | |
6 | 7E | 0-0.4~2.5MPa | 37.4mm |
|
| * | * | * | * |
7 | 8E | 0-1.6~8MPa | 39.0mm |
|
| * | * |
|
|
8 | 9E | 0-4~20MPa | 40.1mm |
|
| * | * |
|
|
9 | 0E | 0-6~40MPa | 40.1mm |
|
|
| * |
|
|
10 | HP4E | 0-6~40kPa | 35.6mm | 25/32 |
|
|
|
|
|
11 | HP5E | 0-40~200kPa | 35.6mm |
|
|
|
|
| |
12 | HP6E | 0-1.6~1MPa | 37.0mm |
|
|
|
|
|
1. What are your main products?
A:We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping.
A: We need to know the following info:
- Medium information (such as Liquid or gas,etc)
- Output signal (such as 4-20mA)
4. What’s your production capacity and can you offer free samples?
A: Our production capacity is about 6,000 pieces per month, we can offer free samples, however ,you need pay for the samples first, and we will return it after you order the bulk orders.
A: For small orders (less than 20 pieces), we can deliver within 7 working days, for bulk orders, we usually need 15 working days Special accessories, order cycle may be longer . But if you need goods urgently, we can arrange expedited production.
A: We accept the payment terms: L/C,TT, Western Union, Money Gram, etc.
Accept: Air,sea and land transportation.
Shanghai enbang Automation Instrument Co., Ltd. (hereinafter referred to as Enbang instrument), has always been committed to in the field of pressure measurement, uphold the spirit of technical innovation and management innovation, with rich sensor R & D and production experience, advanced production and testing equipment and technology, strict testing process sequence, to provide customers with high quality sensors, transmitters and related technical services, superior product quality, perfect service, let us deeply trusted by users.
Enbang instrument advanced experience at home and abroad, to capture a number of technical difficulties in the production of transmitter. Anaerobic type sintering technology, the use of oxide layer problem solve the transmitter pressure sensor filled pipe and glass sintering; pressure sensor and core diaphragm using computer to locate and tensioning technology, the accuracy, static pressure performance and high overload capacity is improved; part of the circuit adopts advanced isolation technique, power supply terminal with isolation transformer and signal terminal with optical coupler isolation. The pressure transmitter has a good anti-jamming capability, to ensure the reliability and stability of the product.
In 10 years, enbang instrument has been with honest and trustworthy, pragmatic, innovative "spirit of enterprise, learning at home and abroad advanced knowledge and technology and business management experience, and constantly improve the management level and the innovation ability of enterprises," excellent products, superior quality, excellent management, excellent service "to meet customer demand, enable us to have a competitive advantage in the sensor industry, provides a guarantee for the sustainable development of enterprises.
