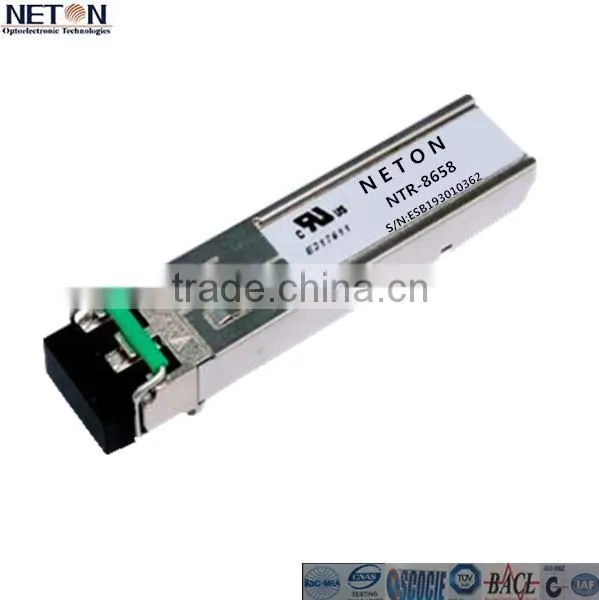

80km 1.25G SFP 1550nm SFP module sfp-ge-lh70-smxxxx-cw
type: sfp module
data rate: 1.25g sfp
distance: 80km lh70
Product Description
Neton ’s NTR-86XX series of transceiver modules are the perfect solution for high-speed communication networks.
NTR-86XX series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
Neton’s NTR-86XX SFP transceivers support data rates up to 1.25Gbps. These modules are fully compliant with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
The family provides a uniform form factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system.
Neton’s NTR-86XX SFP modules have been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Order Information
Type |
Data rate(Mbps) |
Description |
Laser Transmitter |
Encapsulation |
Supply Voltage |
Data Level |
NTR-8631 |
1250 |
SM, 10Km,OC-24 |
1310nm FP Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8632 |
1250 |
SM, 20Km,OC-24 |
1310nm FP Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8634D |
1250 |
SM, 40Km,OC-24 |
1310nm DFB Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8652 |
1250 |
SM, 20Km,OC-24 |
1550nm DFB Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8654 |
1250 |
SM, 40Km,OC-24 |
1550nm DFB Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8656 |
1250 |
SM, 60Km,OC-24 |
1550nm DFB Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
NTR-8658 |
1250 |
SM, 80Km,OC-24 |
1550nm DFB Laser Diode |
SFP,LC |
+3.3V |
LVPECL |
Product Features
1310nm or 1550nm wavelength Laser Transmitter
Up to 80 Km on 9/125μm SMF
Single +3.3V power supply
Extended Operating Temperature Range (-40℃ to +85℃)
Hot-Pluggable electrical interface
Digital diagnostic monitoring
Duplex LC receptacle optical interface
Low power dissipation
Excellent EMI and ESD protection
Compliant with Small Form-Factor Pluggable
(SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3
Application
ATM
Fiber channel
SONET/SDH
Fast Ethernet
Other optic link
1x9 Optic Transceiver Module
Product Series---SFP Transceiver Module
1.What is the warranty for your optical transceivers?
All our products with strict quality control. Optical transceivers have 1 year warranty and 3-5 years for MTBF. Free for maintaining within warranty period. In fact, Our repair rate is almost zero.
2.Are your optical transceivers compatible with Cisco equipment?
Yes.Our optical transceivers can be compatible with Cisco devices.We must 100% test the compatible abilities before leaving our plant as your requires, compatible brand including Cisco,Huawei,Hp,WTD,H3C,JUNIPER,ALCATEL LUSENT,FIBERHOME and son on.
3.I placed an order,who do i call to get tracking information?
Our colleagues of shipping will send you the tracking information immediately after shipping. You can also get the tracking messages from your sales servicer.
4.How do I know NETON parts are good?
We currently are an approved vendor/a gold supplier for Alibaba. We have a number of testing facilities at our disposal and have on-site counterfeit screening capabilities.Our reputation has been built on providing quality parts and customer service you can count on.
5. What's your best advantage in the optical modules line?
achieve various customized requires is our favourate advantage. Because over 20 excellent technicials act as our strong backers.
6.What's your main products?
Our main products are optical transceiver modules, like 1x9, SFP,XFP.
And we can produce all datarate series of modules from DC~2M, 2M~622M,622M~2.5G to 2.5G~40G,
and all kinds of encapsulations from 1x9, SFP,XFP, SFP+ to PON, GPON,GEPON even copper connector and metal 1x9, and WDM from CWDM to DWDM are acceptable,
and single/double/triple transceiver module,single/double/triple transmitter module, single/double/triple receiver module for your various demands.
