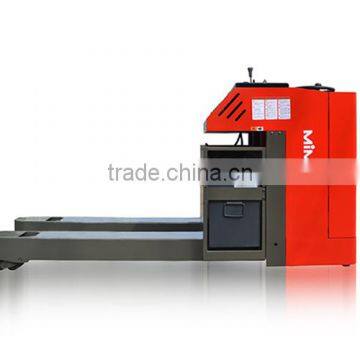

Heavy Duty Pallet Truck 5ton

Heavy Duty Pallet Truck 5ton thumbnail-1
Heavy Duty Pallet Truck 5ton thumbnail-2
Heavy Duty Pallet Truck 5ton thumbnail-3
Heavy Duty Pallet Truck 5ton thumbnail-4
Heavy Duty Pallet Truck 5ton photo-1
Heavy Duty Pallet Truck 5ton photo-2
Heavy Duty Pallet Truck 5ton photo-3
Heavy Duty Pallet Truck 5ton photo-4
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
MIMA
Contact Supplier Request Quote Chat Now
Henan Jingcheng Xiandai Forklift Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai xiamen guangzhou shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name MIMA
Model Number TE50
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 5000kg
Max. Lifting Height 165mm
Min. Lifting Height 0mm
Fork Length 1200mm
Fork Width 235mm
Overall Dimensions 2208x1012x1100mm
Certification CE/ISO9001
After-sales Service Provided No overseas service provided
Product Description

 heavy duty pallet truck 5ton



6T Electric Heavy-Duty Pallet Truck

Name: Electric Heavy-Duty Pallet Truck 5T-6T
Model: TE50, TE60
The rated load capacity is 5000-6000kg, also it can be changed according to special enviroments, it's very popular in heavy-duty industry for material handling solution.
1) Stand-on operation;
2) Hydraulic power-assisted steering system;
3) With large capacity battery;
4) High-strength frame design, suitable for tough workplaces, ensures longer service life;
Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and the truck stops;
5) Excellent performance of getting in and out of empty pallet, greatly increases the operation efficiency;
6) Special pallet truck can be customized according to customer' requirements.
Specifications:
* Wide choice of different load carrying capacities
* Available in normal rates
* Corrosion resistant
* Available in different sizes
* Long lasting durability

ModelTE50
Load capacity Kg5000
Load center mm500
Max. lifting height mm200
Operation typeStanding
Wheel typePolyurethane solid tire
Pedal length mmWithout
Fork size (LxW) mm1200*235
Width of forks (aptotic) mm715
Overall length (The pedal is closed) mm2208
Overall width mm1012
Overall height mm1100
Outside turning radius mm2100
Front wheel to fork tip mm175
BrakeElectromagnetic
Lift speed,laden/unladen mm/s26/34
Lowering speed,laden/unladen mm/s34
Battery weight Kg990
Max. walking speeds Km/h7.0/8.0
Grade abitity %8
Total weight (with battery) Kg~1580
Driving wheel mmΦ343*114
Front wheel mmΦ85*165
Balance wheel mmΦ180*76
Battery V/Ah48/40
Charger V/A48/300
Driving motor Kw5.0
Lifting motor Kw6.3
Battery dimensions l/w/h mm

970*334*590

Our Services



Warranty policy :

If anything go wrong within 12months or 1000 hours , which ever come first from the date of purchase. We will pay for parts to have the repairs conducted ,any shipping expenses will be also paid byus and in return, clients need to give back the parts needed to be exchanged to us, with shipping expenses paid.

If a part is bad and urgent, clients take photos of nameplate, sides of the whole forklift and the bad part, we can send out the part within a day. And if the weight not excess 10KGs, we can deliver parts to clients  by DHL, Fedex or else, if it is heavier, shipped by sea within a day.

We will not be responsible for damage cause by the user or owner or lack of required maintenance or abuse.
