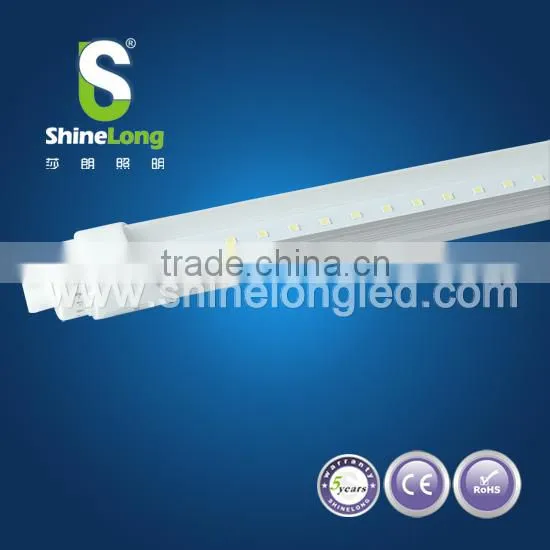

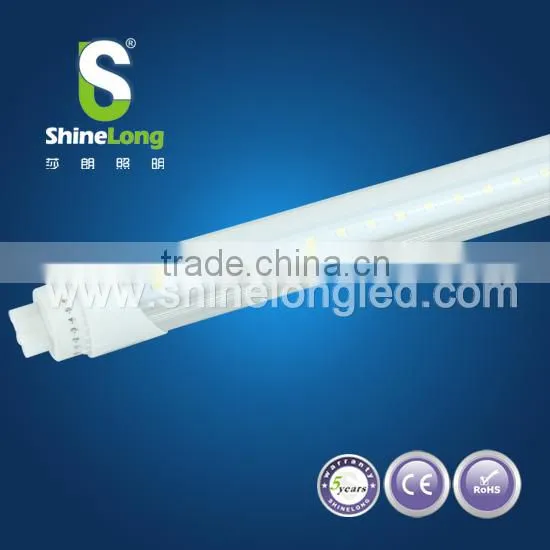

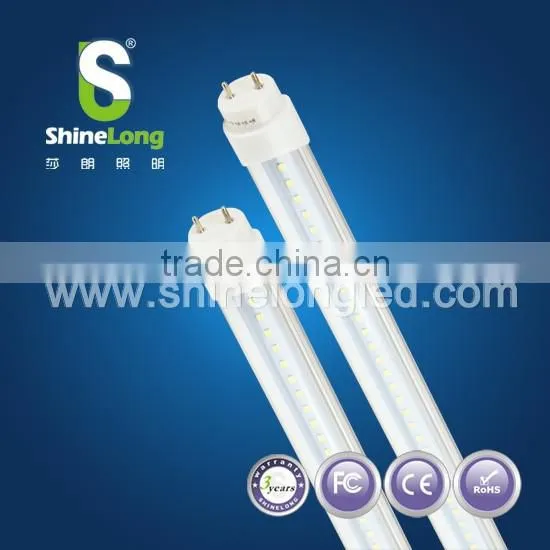

150cm Frosted Rotating End Cap T8 LED Tube 30W in Shenzhen LED Factory

Name: 150cm Frosted Rotating End Cap T8 LED Tube 30W in Shenzhen LED Factory
Brand: ShineLong
SKU: 108333247

US$ 10 - 20 MOQ: 10 Pieces

Key Specifications

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

AC220-240V

Shenzhen Shinelong Technology Corp., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source SMD2835

Warranty(Years) 5

Input Voltage(V) AC220-240V

Lamp Power(W) 30

Lamp Luminous Flux(lm) 2800-3200LM

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 3000-7000k

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Other, Aluminum housing+PC cover

IP Rating Other, IP20

Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE

Place of Origin Guangdong, China

Brand Name ShineLong

Model Number T8

Product Description

New design VDE certificated SMD2835 T8 LED Tube Lighting Features:

Why choose SHINELONG TUBES?

Own designed Isolated TUV/VDE approved drivers;
Own designed Oval Aluminum housing for SMD2835 tube which is best for frosted cover(No shadow);
Drivers with Japanese Rubycon YXJ capacitor and TOSHIBA MOS pipe.
Universal related Input voltage AC220~240V, working for AC90~265V.
3 layers for Insulation for driver, fiberglass sleeve cover wire to avoid the damage;
Safety operating voltage DC36~DC42V;
Constant LED forwarder current 50~55mA during tube operating;(Best design for low LED light decay & long life time);
Special PCB board workable for 1.2m tubes without soldering in the middle;
Using the Lead-free solder wire with REACH standard;
High lumination 0.2W SMD2835 LED and High lumens >20lm/LED;
6063# Aluminum housing for better heat releasing can be self-processed by different lengths.
Own design for Tube shape and product mix;
LED Starter work with LED Tube; (One side AC input normal producing)
Patent designed Al housing and end caps with screw back fixed for easy replacement;
Patent Rotatable end cap ±90° rotatable could be different light emitting directions, R17D end caps can be done;
Special design for passing 4000V Hi-pot testing;
Temperature difference less than 10°C between inside and outside;
Extremely low maintenance;( Safety and cost aspect)
Durable structure and stable performance;
Being reduced 40% heat dissipation, compared with traditional fluorescent lamp;
OEM&ODM offering;
