Help CenterTruck Cover of Pvc Tarpaulin
Related Products
-
High Quality Pvc Tarpaulin of 650gsm for Truck Side WallUS$ 1.65 - 2.5MOQ: 1000 Meters -
Pvc Truck TarpaulinUS$ 1.6 - 3MOQ: 1 Square Meter
-
PVC Coated Tarpaulin Material for Truck TarpaulinUS$ 1.6 - 2.5MOQ: 1500 Meters
-
Pvc Car Cover FabricUS$ 1.6 - 3.5MOQ: 1 Square Meter
-
Container Side Curtain PVC Fabric With AcrylicUS$ 1.6 - 3.05MOQ: 1 Roll
Specifications
1.Polyester:1000d*1000d 20*22 and 30*302.Width:2.5m/3.2m/2.95m
3.Length:as customer
4.Color:as customer
5.Weight:650gsm
Product brief:
A high tenacity polyester scrim is coated on both sides with
a PVC compound that provides weather resistance, smooth
surface, color, and protects the polyester fibers against UV
degradation. The higher quality architectural fabrics have a
topcoat to protect the PVC coating and improve cleanliness
of the surface.
Advantage:
Yilong chooses to use high performance polyester as a standard product line. Polyester fabric is a fire retardant/self-extinguishing and self-cleaning fabric that is the industry standard for quality structures. It passes NFPA701 and ASTM E84 Fire Codes. Pre-constraint technology gives the fabric high tensile strength and gives it the capability to maintain tension in extreme climates. UV inhibitors and other high quality top coats prolong membrane life.Yilong PVC coated fabric share below properties:

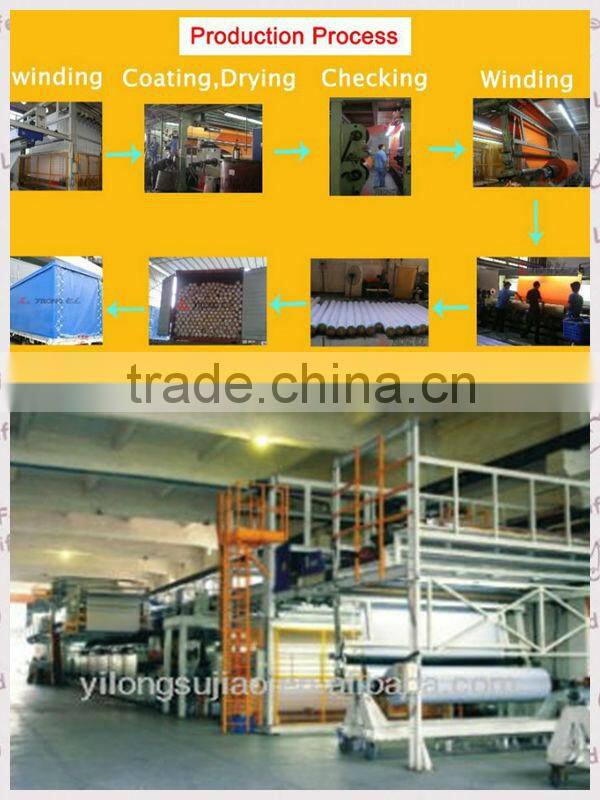

1. Made by knife coating tech
2. High tensile strength
3. Max width 3.7M
4.10year guarantee
5. Versatile Composition
Product index:
1. 10655W2 (used as material of protective cover: truck, train, container, vessel, and cargo)
Fabric Type | |||
REF of fabric |
10655W2 |
||
base fabric |
Polyester A.T. 1100dtex |
||
FINISH |
Lacquered 1 side |
||
Characteristics |
Tolerance |
||
WEIGHT |
650G |
+/- 5% |
|
WIDTH |
98’’/118’’126’’(250cm/300cm/320cm) |
+/- 1% OR +/- 0.05 % |
|
STANDARD PUT UPS |
65 yds / 60 cm |
|
|
COATING |
PVC Warp: 18 threads/in Weft: 18 treads/in |
+/- 5% |
|
COLORS |
13 colors refer to RAL standard |
||
Specifications |
Warp |
Weft |
Tolerance |
RESISTANCE TO INITIATED TEAR |
250N |
250N |
5% |
TENSILE STRENGTH |
2800N / 5 cm |
2400 N/ 5 cm |
5% |
THERMAL STABILITY |
-30°/+70° C |
|
0% |
FLAME RETARDANCY |
B2 |
0% |
|
FASTNESS TO LIGHT |
higher than 6 |
0% |
|
2.20905W2 (used as material of protective cover: truck, train, container, vessel, and cargo)
Fabric Type | ||||
REF of fabric |
20905W2 |
|||
base fabric |
Polyester A.T. 1100dtex |
|||
FINISH |
Lacquered 2 side |
|||
Characteristics |
Tolerance |
|||
WEIGHT |
900G |
+/- 5% |
||
WIDTH |
98’’/118’’126’’(250cm/300cm/320cm) |
+/- 1% OR +/- 0.05 % |
||
STANDARD PUT UPS |
65 yds / 60 cm |
|
||
COATING |
PVC Warp: 30 threads/in Weft: 30 treads/in |
+/- 5% |
||
COLORS |
13 colors refer to RAL standard |
|||
Specifications |
Warp |
Weft |
Tolerance |
|
RESISTANCE TO INITIATED TEAR |
550N |
500N |
5% |
|
TENSILE STRENGTH |
4200N / 5 cm |
4000 N/ 5 cm |
5% |
|
THERMAL STABILITY |
-30°/+70° C |
|
0% |
|
FLAME RETARDANCY |
B2 |
0% |
||
FASTNESS TO LIGHT |
higher than 6 |
0% |
||
