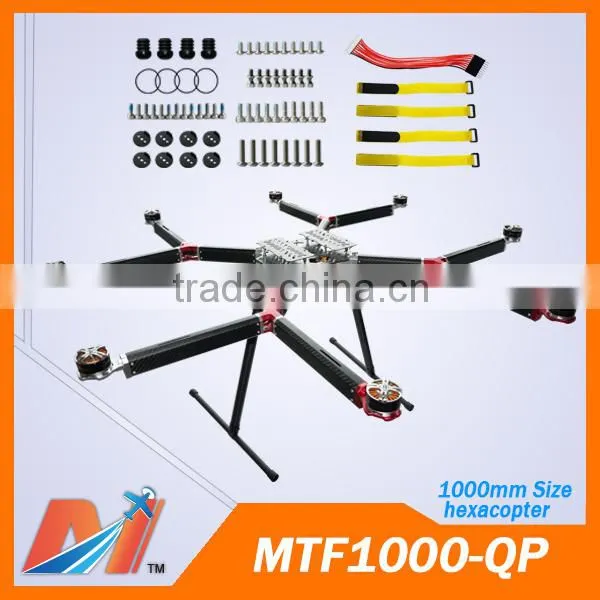

Help CenterMaytech Professional Drone 1000 Size Quick Installation With Motors ESCs Carbon Propellers
Related Products
-
Maytech New Released DJI Phantom3 9555 Cabon Firber PropellerUS$ 3 - 15MOQ: 1 Pair -
Maytech Simple Remote Controller for Electric SkateboardUS$ 30 - 50MOQ: 4 Pairs
-
Maytech Remote Control System for Electric BicycleUS$ 43 - 48MOQ: 6 Pieces
-
Maytech Remote Controller for 4 Wheel Electric SkateboardUS$ 43 - 48MOQ: 4 Pieces
-
Maytech Remote Controller for Sport Electric SkateboardUS$ 43 - 48MOQ: 2 Pieces
Price include frame, ESC, Motor, propeller, not include battery, flight
controller, etc.
Frame weight: 4.2KG
Take-off weight: 6-13KGS
Flight time: 16min @15000mAh & 10Kg
Diagonal wheelbase: 1100mm
Arm weight(including motors, ESCs, propellers): 800g
Center frame dimension: 240mm(L)*185mm(W)* 60(H)
Center frame weight(including landing gear and bracket):980g

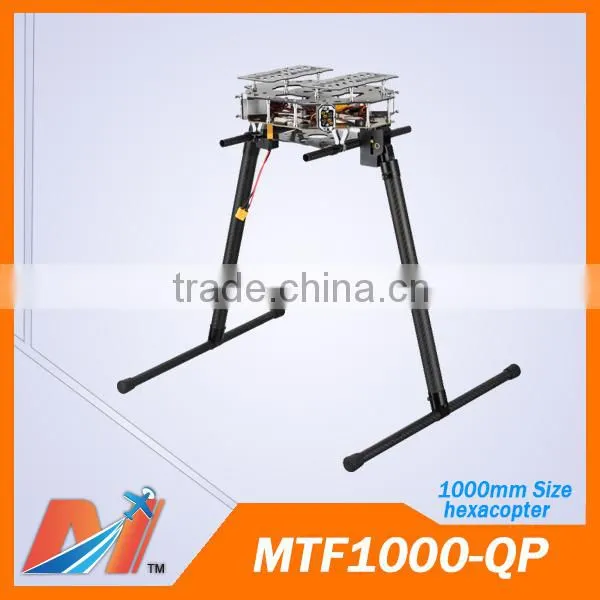

Landing gear
410mm(L)*470mm(BottomWidth)*430mm(H)(Top Width:260 mm)
Take-off weight 6.0Kg-13.0Kg
Total weight of frame 4.2Kg
Battery LiPo(6S,10000mAh-20000mAh,minimum 15C)
Motor: MTO4636-400-MK *4pcs
The max installing motor size: 65mm diameter
ESC: 40A ESC*4pcs
Propeller: Maytech 15x5.5inch carbon prop*2 pair
The max propeller size: 19inch
MaximumWatt: 4000W
Hovering Watt: 1500W @ 10Kg
Hovering time 16min15000mAh @ 10Kg
Recommended slight parameters:
A2 flight control:
Basic Gain: Roll 120%,Pitch 120%,Direction 120%
Attitude Gain: Roll 170%,Pitch 170%,Vertical 120%
WooKong-M flight control
