Home > Lights & Lighting > LED Interior Lighting > LED Ceiling Light > Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm)

Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm)

Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-1
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-2
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-3
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-4
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-5
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) thumbnail-6
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-1
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-2
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-3
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-4
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-5
Square Panel Light 50W SMD4014 CE RoHS TUV UL Approved(596*596mm, 598*598mm, 595*595mm) photo-6
US$ 30 - 50 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD4014
Install Style:
Other, Embeded, Surface mounted or Suspended
Input Voltage(V):
AC100~240V
Contact Supplier Request Quote Chat Now
Shenzhen Shinelong Technology Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD4014
Install Style Other, Embeded, Surface mounted or Suspended
Input Voltage(V) AC100~240V
Lamp Power(W) 50
Lamp Luminous Flux(lm) 4500-5500
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, WW3000-3500K/4000-4500K,PW5000-5500-6000K,CW>6000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Other, PMMA+Aluminum
IP Rating Other, IP20
Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Place of Origin Guangdong, China
Brand Name Shinelong
Model Number SL-P2250-X







Product Description

 600x600mm square LED Panel Light 50W FULL SPECIFICATIONS:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)



FEATURES:



1.High light effeciency 90-100LM/W;



2.Lifespan:more than 50,000H



3.Safety working voltage DC30~DC42V;



4.Installation: Built-in/Suspended/Surface/Wall Mounted



5.Ultra slim construction (thickness only 11mm)



6.Use high quality SMD4014 LED as light source, which is high brightness, long life and less heat



7.Flicker-Free Lighting: Eliminate eye strain and headaches



8.Energy-saving:saving 80% than the ordinary lamp



9.Self-developed constant-current power for power supply circuit greatly improve the stability of our products and increase light-emitting area



10.Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks



11.No Mercury Inside, No UV, No IR, good for your heathy.



12.TRIAC, PMW. O-10V, 1-10V dimmable and CCT dimming items can be done.



square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

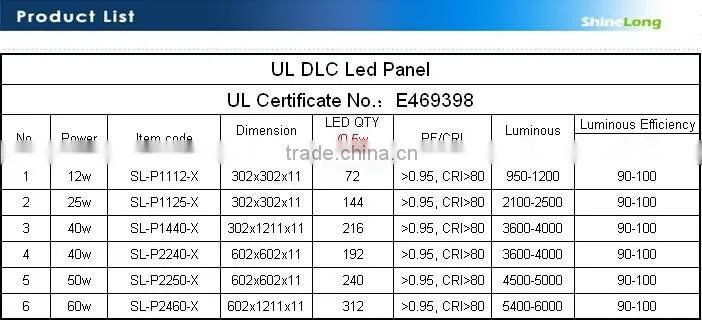

 ShineLong Panel lights size:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

ShineLong Panel lights Details:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

Panel light installation drawing:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)





Packaging & Shipping

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

ShineLong Factory Quality Control and Testing:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

 ShineLong products Application from Our customers:

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)

square Panel Light 50W SMD4014 CE RoHS TUV UL approved(596*596mm, 598*598mm, 595*595mm)



Thank you for your visiting on ShineLong websit! More informations, pls feel free to contact us at any time!
