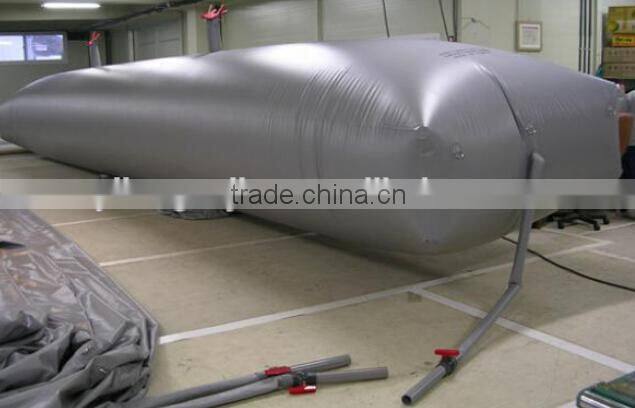

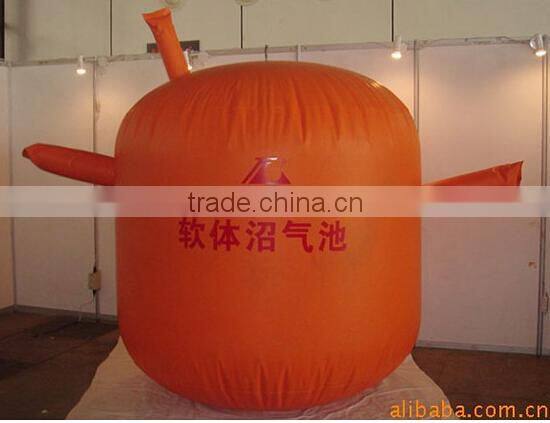

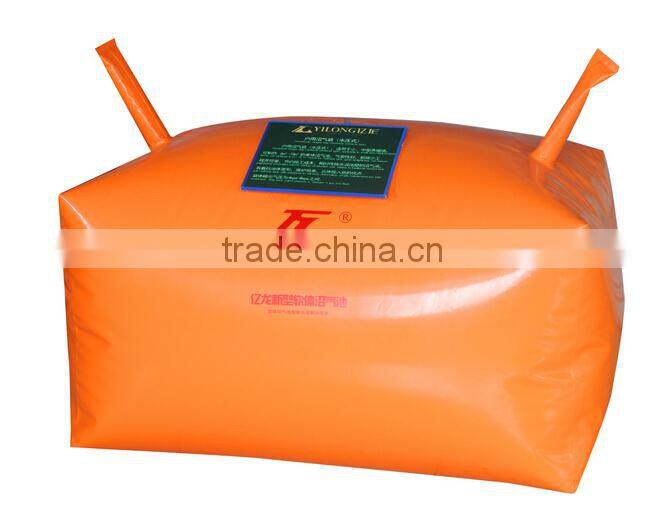

Advanced Pvc Fabric Biogas Equipment
pvc fabric biogas equipment
>>Material Parameter of PVC Coated Biogas Digester:
| Products Index Parameter | ||
| Product Model | 01054W2 | Ref.Test Method |
| Applications | Inflatable Material | |
| Material | PVC | |
| Grey Cloth | PES | DIN60001 |
| Dtex of Yarns(warp/weft) | 1100 Dtex | DIN EN ISO2060 |
| Weaving Type | L1:1 | DIN ISO9354 |
| Type of coating | PVC both sides | |
| Lacquering | No Lacquering | |
| Weight | 1050 g/m2 | DIN EN ISO 2286-2 |
| Width | 320cm | DIN EN ISO2286-1 |
| Tensile Strength(warp/weft) | 2600/2500 N/5cm | DN53354 |
| Tear Strength(warp/weft) | 350/300 N | DN53363 |
| Adhesion | 120 N/5cm | DIN55357 |
| Applicable Temperature | -30~+70°c | |
| Colors | Yellow,Red,Green,Blue,Grey | |
| Flame Retardancy | B2 | |
| Light Fastness | > 6 | DIN54004 |
| Environmental Management | ISO14001 | |
| Quality Management | ISO9001 | |
Normal packing length: 30m,50m per roll.(others can be customized)
Normal width: 320cm. 200cm-380cm is available.
Normal Volume: 750,900,1000,1500,4500,6000,7500,9000, 10500,12000,15000,18000 L etc.
Others could be customized.

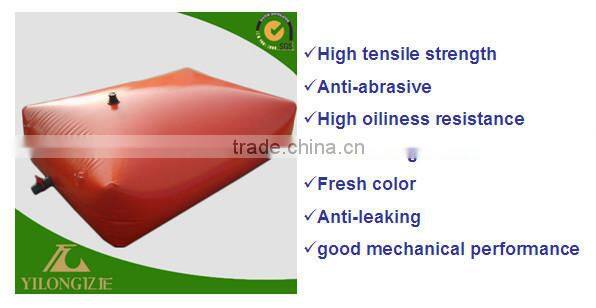

>>What are the features of our pvc coated fabric?

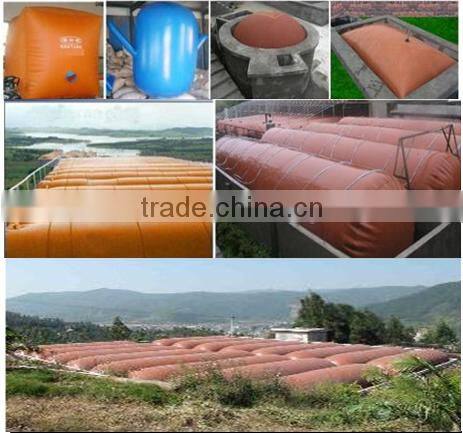

- Can make for 750-18000 L inflatable methane tank.
- Good air tightness,can reduce engineering excavated volume,saving construction cost,in comparison with the traditional cement tankwall methane tank.
- The advantage are resistance to cell body deformation,simple maintenance,low general input.
- Household Biogas Digester output pressure between 100 pa ~ 1000 pa

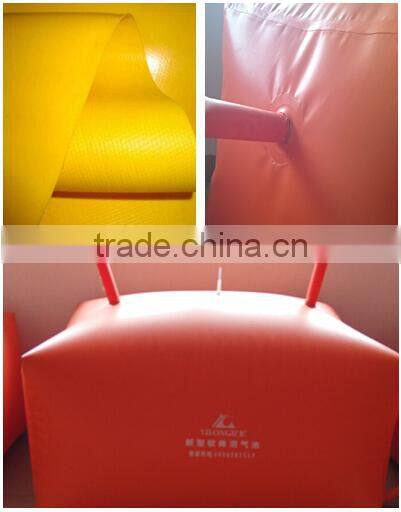

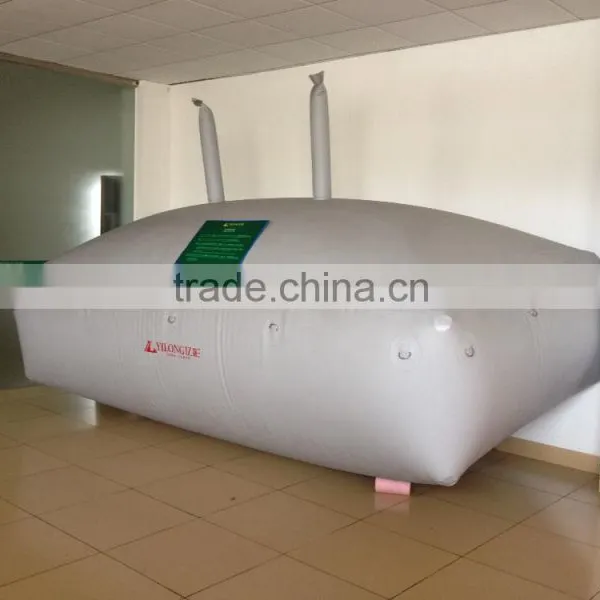

Product Details

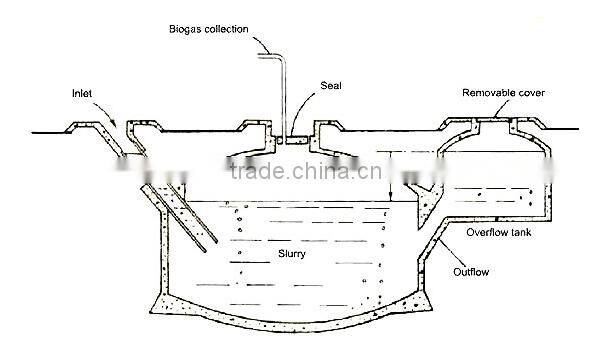

Schematic Diagram
>>Application of Our Products:

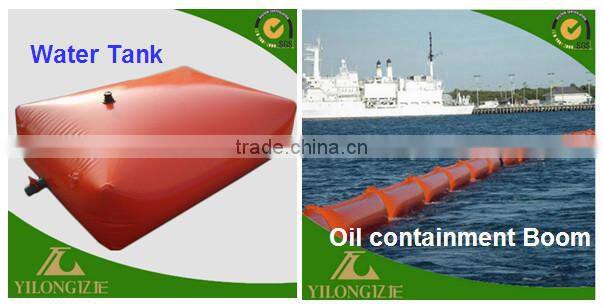

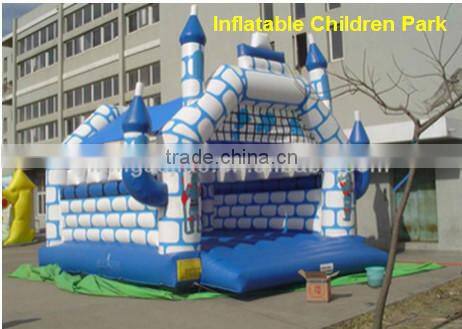

Widely used for inflatable biogas tank, water storage bladder, oil containment boom, inflatable boat, flexible swimming pool, inflatable children park, etc.
>>Packaging and Shipping
Packed with pvc material bag, any other package requirement can be discussed with factory.
11 YEAR PERSERVANCE AND EXPERIENCE

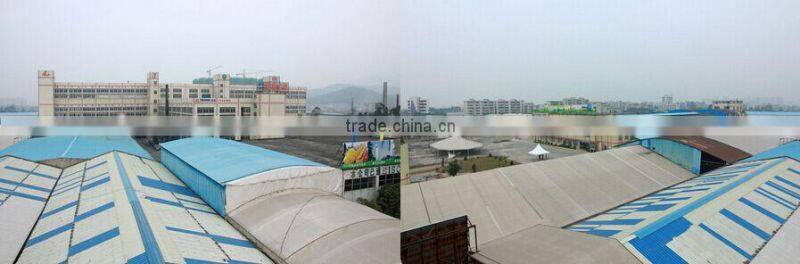

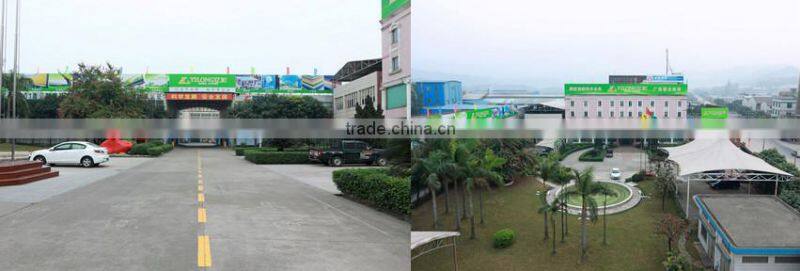

YiLong Advanced Material Technology Co., Ltd. was established in 2000, covering the area of more than 70,000 m2. Yilong company is a leading professional manufacturer who introduced European advanced pvc coated fabric technology into our own design. Every year, the annual pvc fabric producing capacity reach nearly 80 million square meters and 8000 tons of PS sheets. Our main products include construction membrane, tents, truck cover, pvc coated flex banner,inflatable material, pvc composite material, ps sheet etc. All of our products have passed certificates such as SGS,CE,ISO9001,ISO14001 etc.
>>Certificate of Our Products:
For more information, plz contact us. Sample is for FREE.
skype: choice0312
Cel: +86 13702952112
