Specifications
1.Convenient installation2.Light weight
3.Excelent quality
4.Long life span
Prefab steel structur workhouse
With the increasing development of industry, steel structrue has been widely applied in all kinds of building
construction. Thanks to mass manufacture, it has its price greatly lowered. In addition, the fast installation and
weather resistance allow a great reduction on construction cost and time. As a professional manufacturer of
steel structure building in China, we provide products for various application and have won wide appreciation.
Advantages:
With the color coated steel sheet as its main structure and various colors and shapes for the exterior and
interior roof panel and wall panel, our steel structure building displays an attractive appearance. It features
light weight, easy installation, heat and sound insulation, water and fire proof, impact resistance, fast
construction, low cost, recyclability and enviro
product discription:

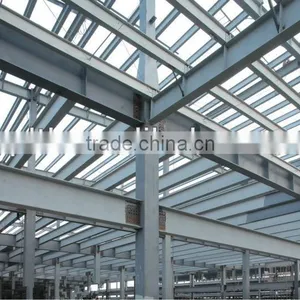

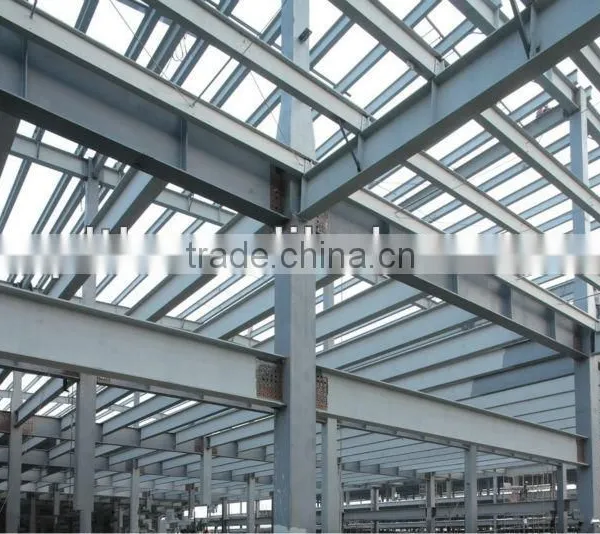

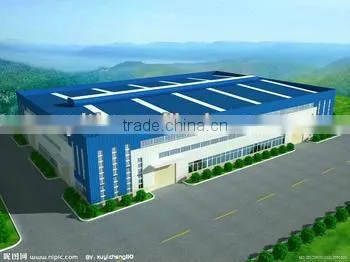

The steel structure workshop in the pictures were designed, constructed and installed by TAILONG who are
professional and practical in designing, processing and installing. You may give us your own drawings to
enable us construct as per your request or you might just give us your ideas, we can design the project based
on your ideas. Welcome to contact us for anything you needed.
1.size:
MOQ is 1000 square meter, length X width X eave height, roof slope
2.type:
single slope, double slope, muti-slope ;single span,
double-span ,Multi-span, single floor, double floors
3.base:
Concrete and steel foundation bolts
lumn and beam:
material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,straight cross-section or Variable cross-section
5.bracing:
X or V or other type bracing made from angle , round pipe etc.

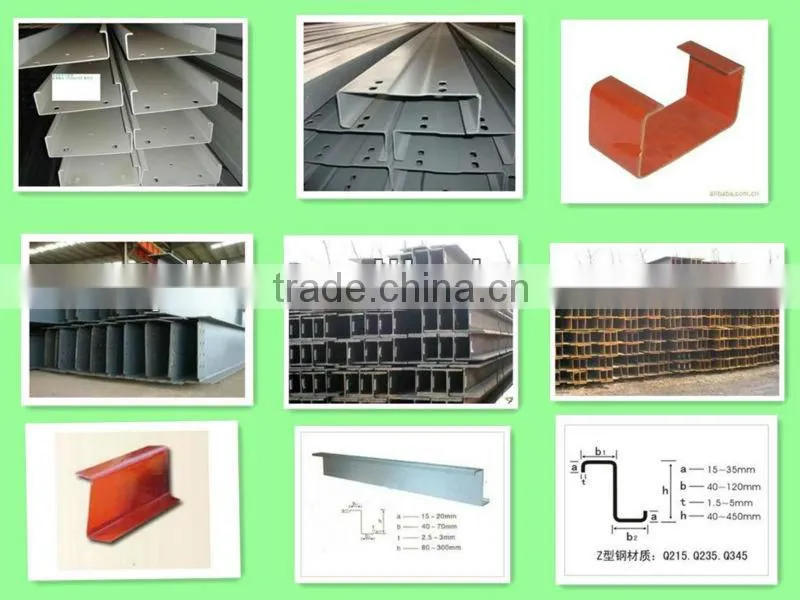

6.c or z purlin,
size from C100~C320,Z160~Z300
7.roof and wall panel:
single colorful corrugated steel sheet0.326~0.6mm thick ,YX26-205-820(820mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX15-225-900(900mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX35-125-750(750mm wide),
single colorful corrugated steel sheet0.376~0.6mm thick ,YX51-380-760(760mm wide),
single colorful corrugated steel sheet0.376~0.6mm
thick ,YX51-470(470mm wide),
sandwich panel with EPS, ROCK WOOL , PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!
8.accessories:
semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
9.surfrace:
Paint or hot dip galvanized
10.packing :
main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ
If you need we design for you, pls supply us the following parameter together with detail size:
load on roof(KN/M2), live load on second floor(KN/M2) if have
d speed(KM/H) or wind load(Kn/M2)
3.snow load (Kn/M2) if have
4.earthquake load if have
5.crane (if have): crane span, crane type, crane quantity, crane lift height, max lift capacity, max wheel pressure and min wheel pressure
nment-protection. In addition, various designs are available as per the request of clients
As one of the biggest steel structural manufacturers,
we know where we are and where we are going.
TRUST US, CHOOSE US, YOU WILL LIKE US.
