High quality plastic pvc pipe extrusion making machine price
PVC Pipe Machine Testing Videos:
https://youtu.be/6vYFRSRhejY?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs
https://youtu.be/3nOgfKQ46vs?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs
https://youtu.be/P1VGR423OY8
PVC Double Pipe Pipe Machine Testing Videos
https://youtu.be/nlb9TqWCKGI?list=PL5C0xwixgXY8Ldjujy1LsvGPKNjatQ9rs
https://youtu.be/P1VGR423OY8
PVC Pipe Machine-Technical Parameter
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
Process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

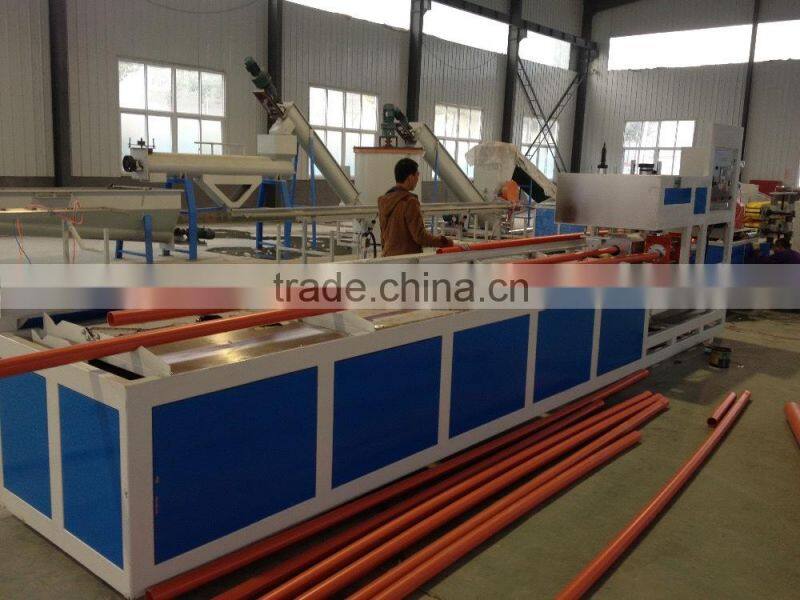

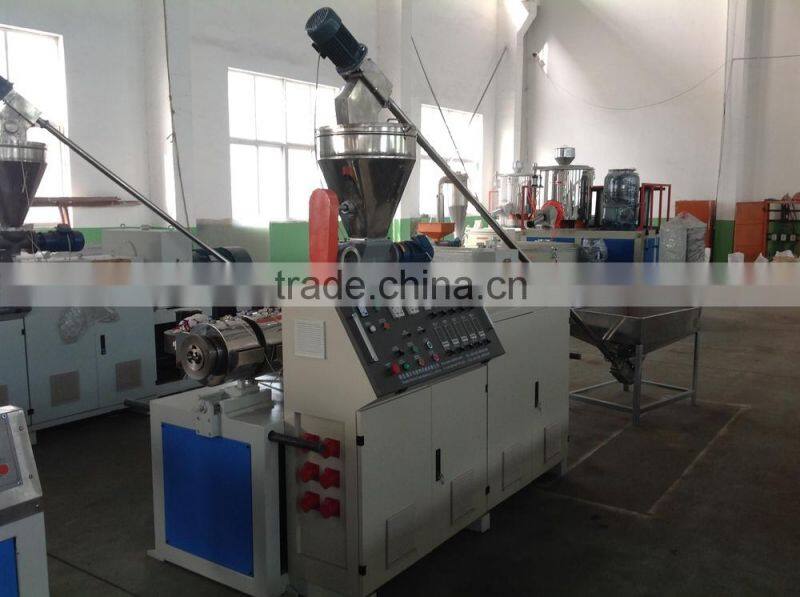

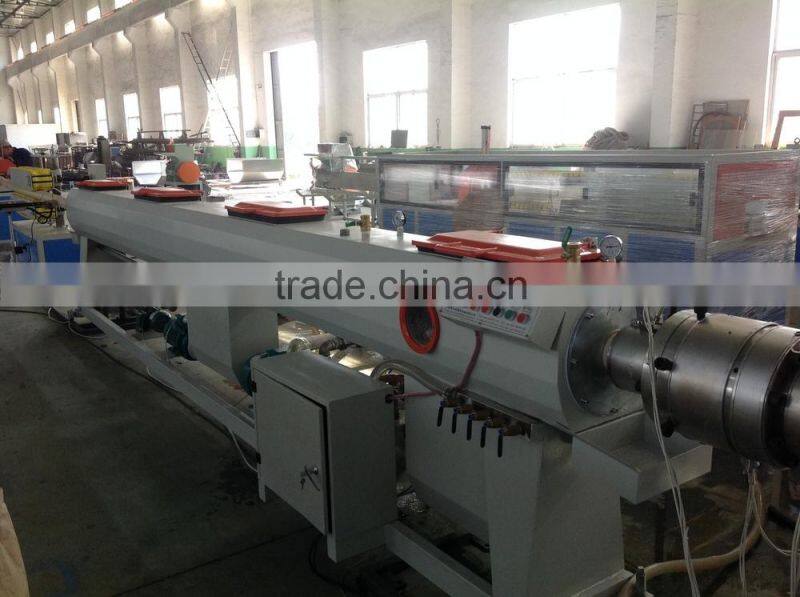

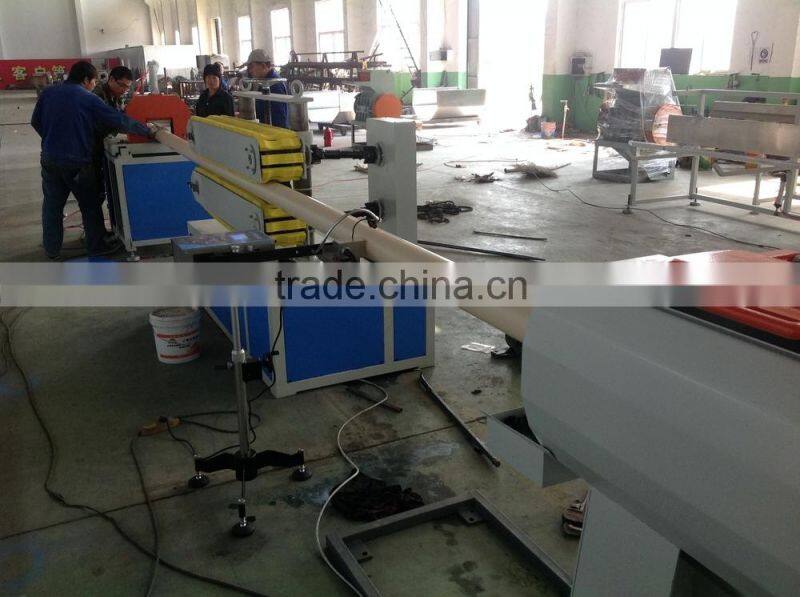

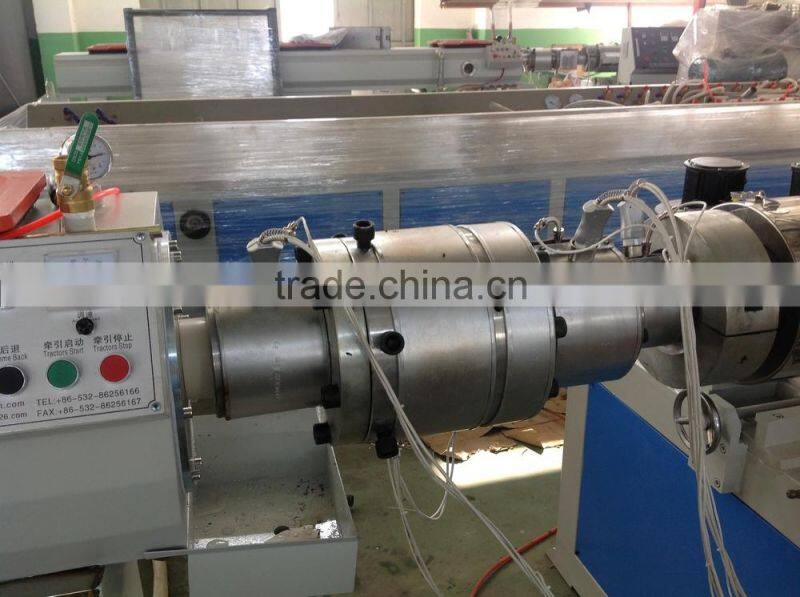

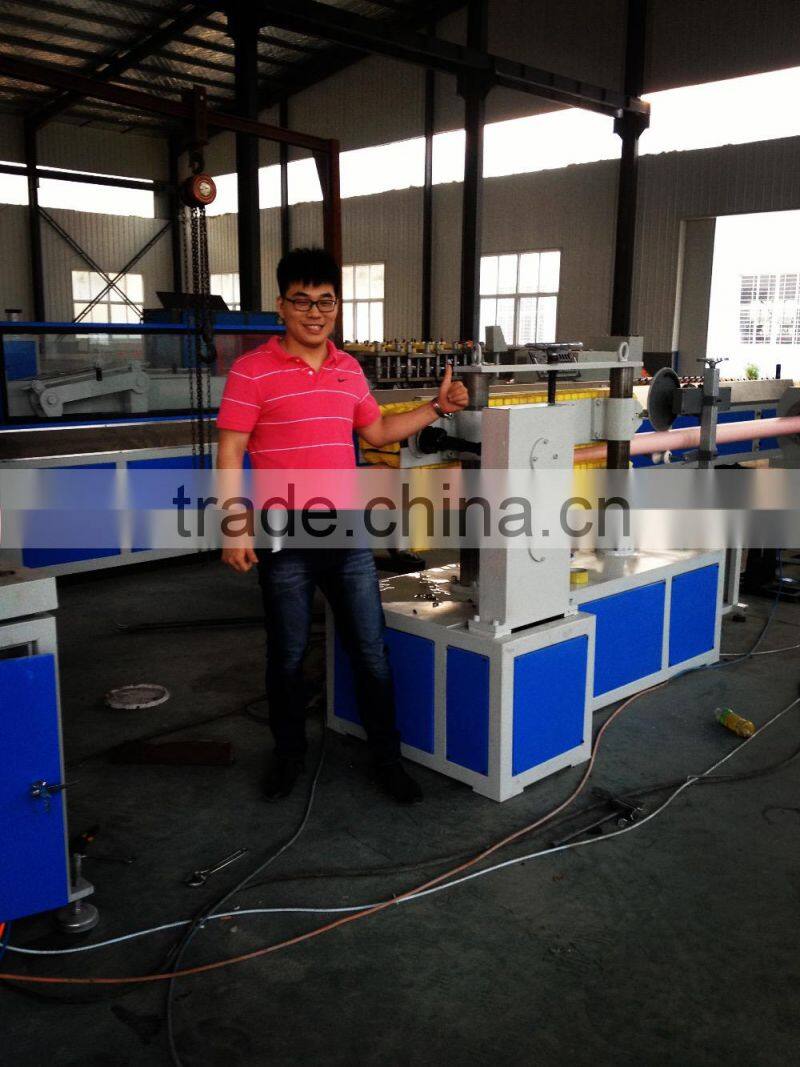

SJSZ65/132 PVC PIPE MACHINE which can produce PVC pipe diameters from 16-110mm-Machine photos:

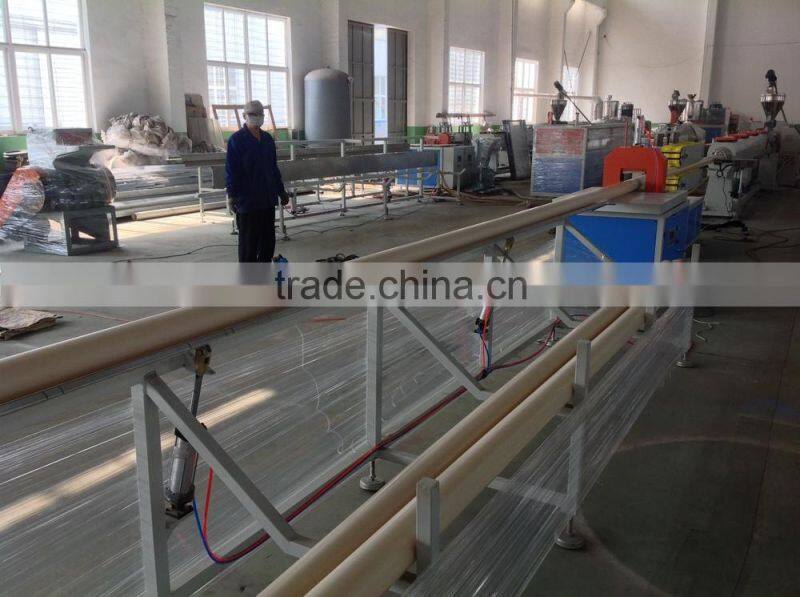

All of our PVC pipe making machine will be tested well before delivery. Please check our PVC pipe samples from our machine,you will find our machine produce very high quality PVC pipes
Auxiliary Machine

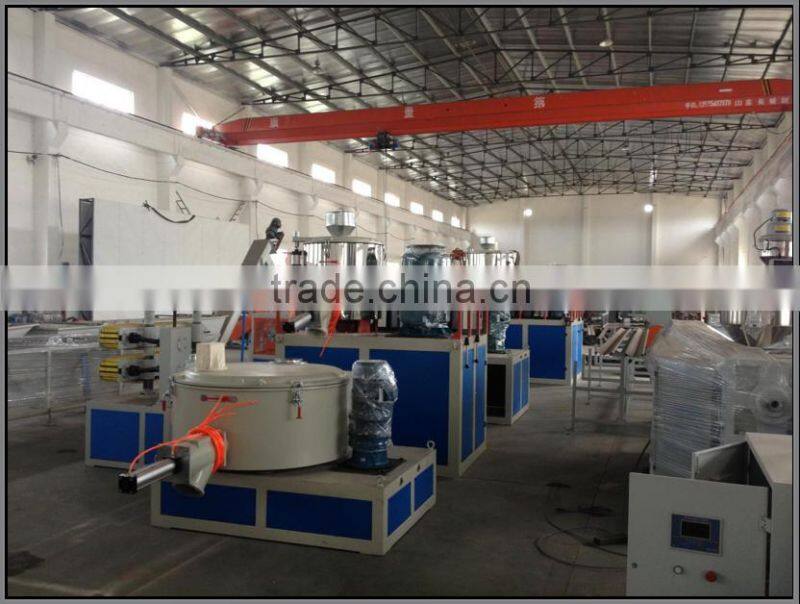

1.Heating &Cooling Mixing unit(We recommend use SRH-300/600 Mixer)-Mix PVC pipe formula

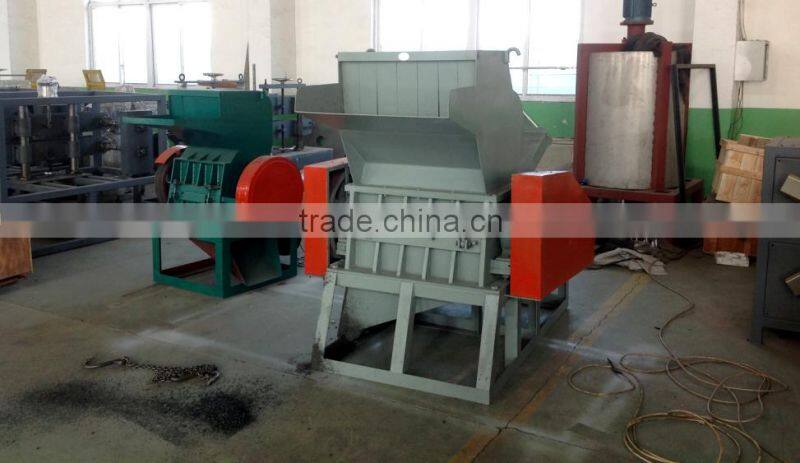

2. SWP-360 CRUSHER-Recycle pipes
3.500MILLING MACHINE-recycle pipes
4.AUTOMATIC PIPE BELLING MACHINE
GOOD QUALITY,GOOD SERVICE,GOOD PRICE-DEERMA FOCUS PVC PIPE MACHINE MORE THAN 10 YEARS!
Welcome u visit us to check our PVC pipe machine quality any time, we have different pipe machine orders in our workshop!
