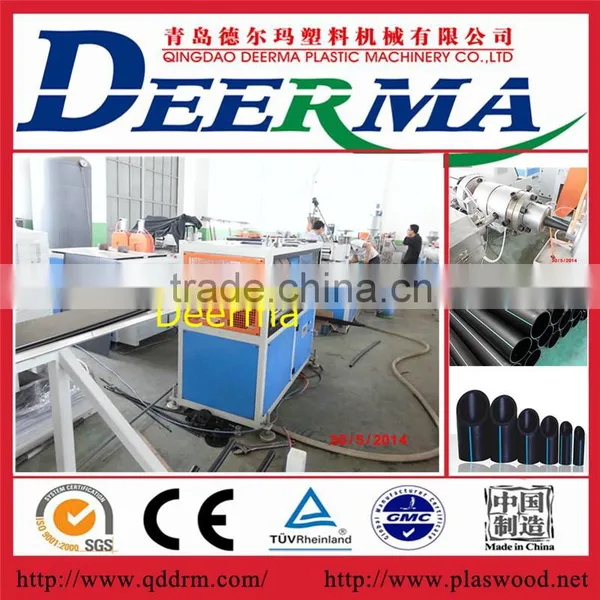

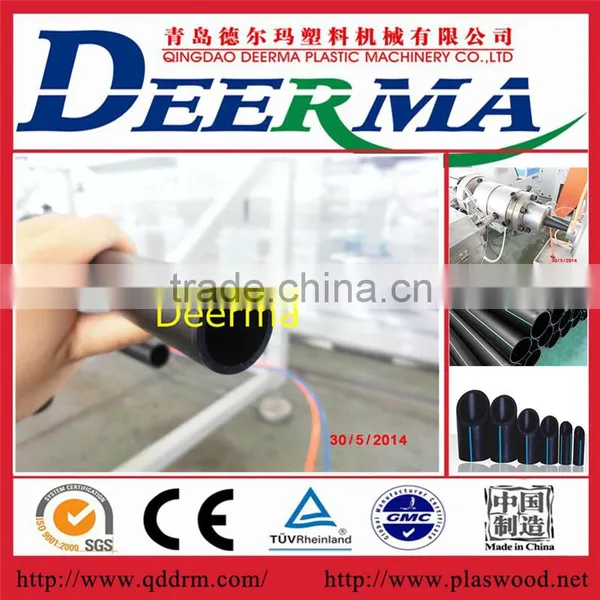

HDPE PPR Pipe Machine / PPR Pipe Making Machine / Production Line
Working process & Technical Parameters (It can produce 20-160mm PPR pipe )
- SJ-65×33 Single Screw Extruder with Vacuum Feeding Unit & Drying Machine (Two Set)

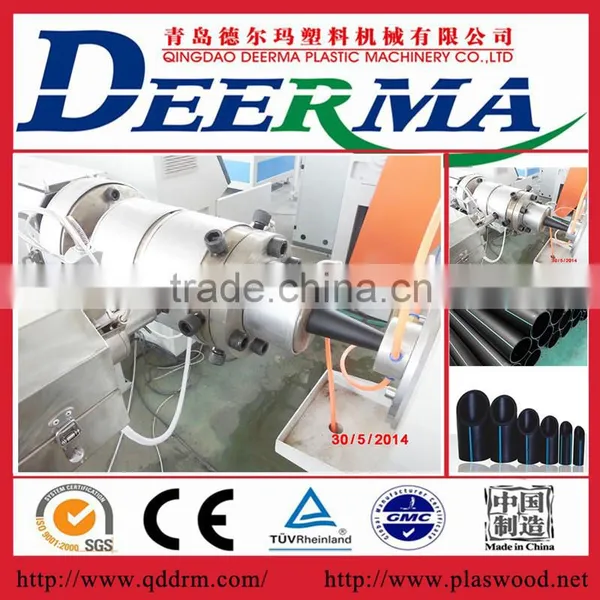

- Die and Moud
- Vacuum Calibration Device
- Spray Cooling Tanks

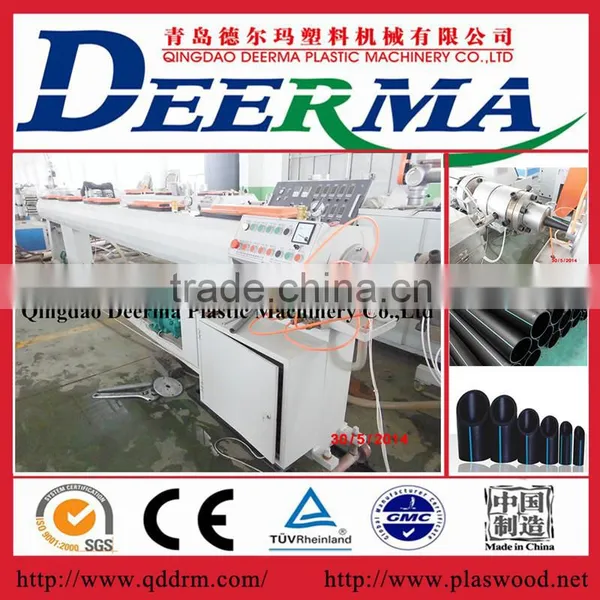

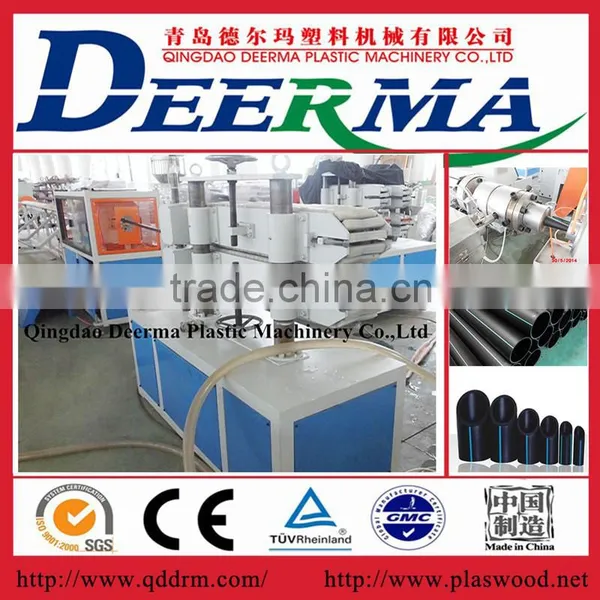

- Tractor
- No Dust Cutting Device

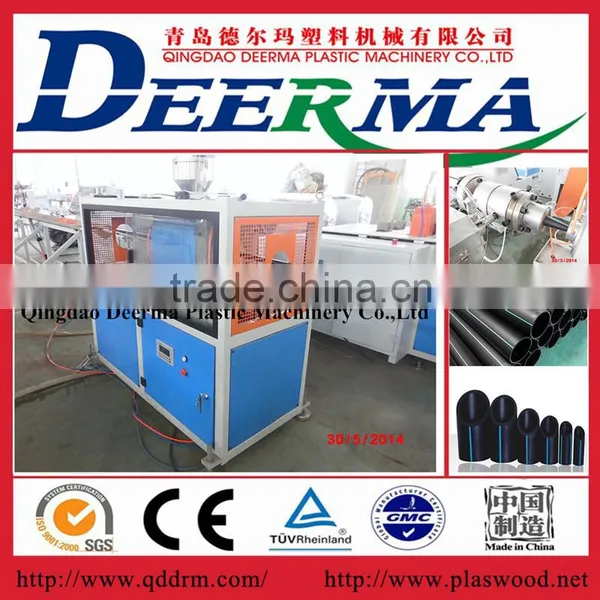

- Stacker
- Crusher
Item |
SJ65/30 |
SJ75/30 |
SJ90/30 |
Max Dia. Of pipe(mm) |
16-63MM |
20-110MM |
50-160MM |
Main machine |
SJ65/30+SJ25/25 |
SJ75/30+SJ25/25 |
SJ90/30+SJ25/25 |
Motor power(kw) |
37KW |
37KW |
55KW |
Max. capacity(kg/h) |
50-120KG/G |
70-140KG/H |
80-160KG/H |
Traction speed(m/min) |
0-12M/MIN |
0-8M/MIN |
0-8M/MIN |
length(mm) |
25000 |
34000 |
44000 |
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker
CERTIFICATE OF CONFORMITY AND ISO9001 QUALITY MANAGEMENT SYSTEM CERTFICATION
TUV -Supplier Assessment
Our company are professional manufacturer and leading company in plastic machinery industry.
Welcome to inquiry,looking forward to cooperating with you in long terms!!!
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
A: Deerma Company is an industry manufacture of Extrusion Machines.
Q:All of your products are made by your self or compacted via purchasing the others?
A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.
Q:Annual Production Capacity( Previous Year)
A: About 80 lines from 2014.1 to 2014.12 and total revenue is about USD 2500000
Q: Is there quality control on all production lines?
Yes, all production lines have adequate quality control
Q:Do the QA/QC inspectors work independently from the production line? Yes
Q:How many QA/QC inspectors in total? 4
