Product Description

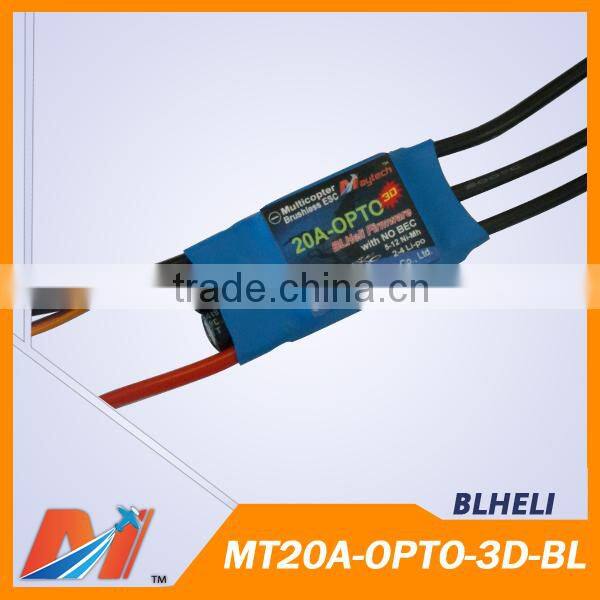

Maytech brushless esc reverse 20A 3D regler with BLHeli for rc propel quadcopter
Application |
Multicopters |
Firmware |
BLHELI |
Cont.Current |
20A |
Burst Current(10sec) |
30A |
Net Weight |
25g |
BEC |
NO BEC |
PCB Size(mm)(L x W x H) |
40*25*7 |
3D-Flight Functions:
Motors run CW in the area range from 51% to 100% throttle(1466-1860us), run CCW in the area ranges from 0% to 49% throttle(1067-1460us). The dead band ranges from 49% to 51%(1461-1465us) is the natural position.
Features:
With the slim shape, it can be easily placed to a carbon fiber tube with the inner diameter of 23mm.
High-performance aluminum heat sink combined with special structure of heat-conductive makes heat dissipation more effective.
Suitable for: Multicopters of 330~450mm Wheelbase, and Invertix 400 Aircrafts
Maytech Electronics Co., Ltd. is devoted in designing and manufacturing Brushless ESCs, Brushless motors, Propellers, Analog and Digital Servos for RC models, such as RC aircrafts, Helicopters, Boats, Cars and Truggies.
Special design requirement, OEM and ODM orders welcome!
