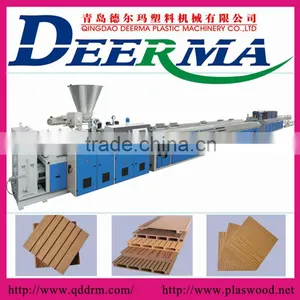

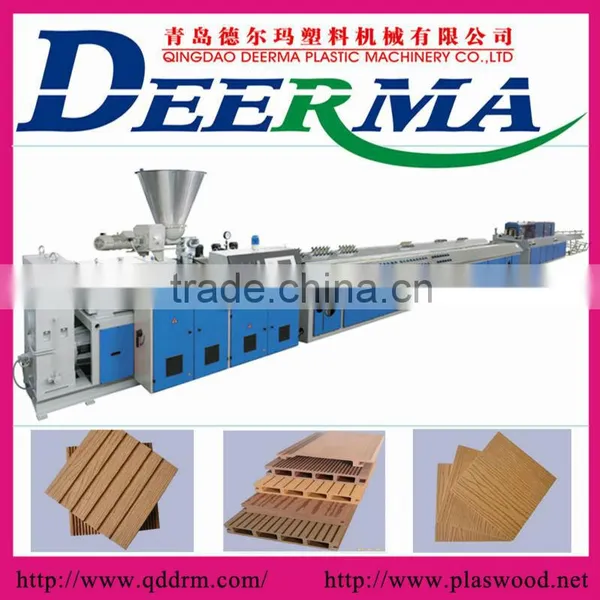

wood plastic wall panel machine/WPC cladding plastic machine
WPC profile production line
WPC profile extrusion line
WPC profile extrusion machinery
WPC profile machine
WPC profile extrusion machinery
WPC plastic machine
----------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Production Description | ||
|
Flow Process
1.PE/PP+wood extrusion line craft:
Wood milling(wood powder,rice husk)—— Mixer(plastic+wood)——Granulator——Wpc extrusion line+Auxiliary
2.PVC+wood extrusion line craft:
Wood milling(wood powder,rice husk)——Mixer(plastic+wood)——Wpc extrusion line+Auxiliary
Technical paramete
| Model | Unit | JG-MSX51/105 | JG-MSX65/132 |
| Screw Dia | mm | 51/105 | 65/132 |
| Screw Quantity | Piece | 2 | 3 |
| Rotational Speed | r/min | 1-40 | 1-38 |
| Main Extruder Power | kw | 22 | 37 |
| Heating Power (approx) | kw | 8 | 24 |
| Extrusion Output | kg/h | 50-150 | 80-200 |
Main composition
| Item | Quantity |
| 1.twin screw extruder | one set |
| 2.Nosae and Die mould | one set |
| 3. Vacuum calibration table | one set |
| 4.Haul-off unit | one set |
| 5.Cutting unit | one set |
| 6.Stacker | one set |
| 7.Electric control system | one set |
| 8.Spare parts list | one set |
Machine's Photos
1.Twin screw extruder -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose )
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2.Die mould
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

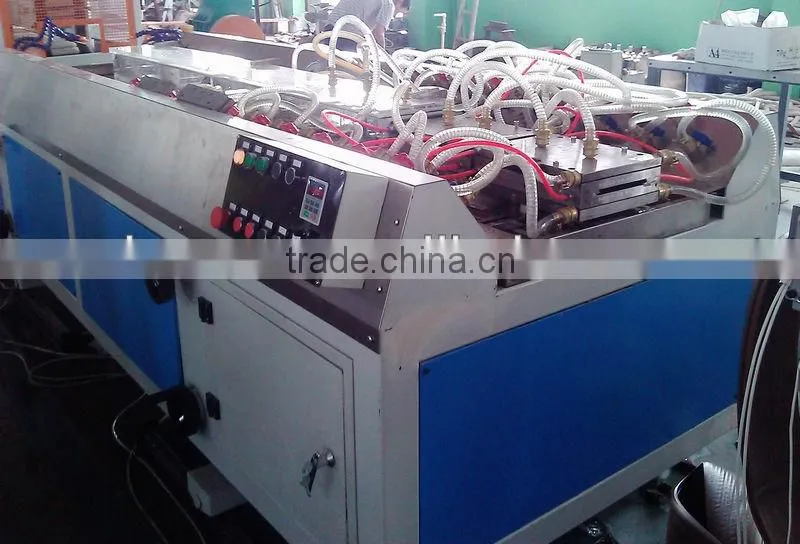

3.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
4.Haul-off unit and cutting unit
There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.

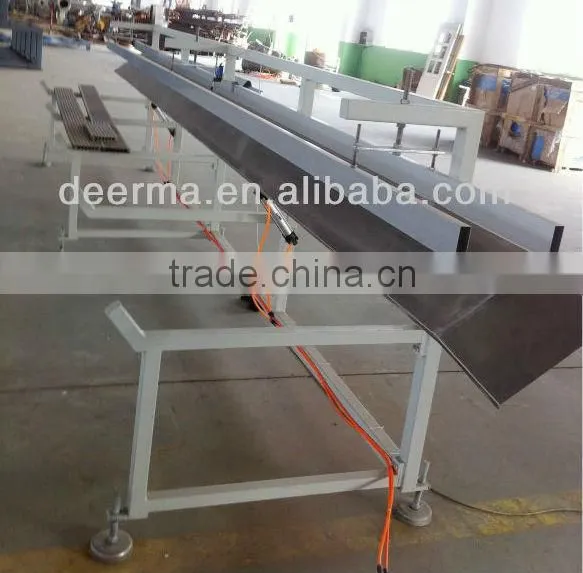

5.Stacker

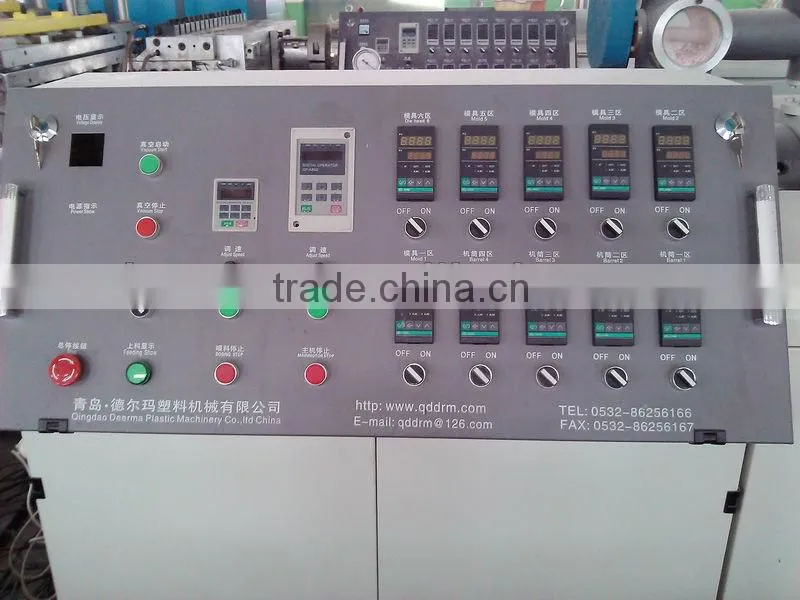

6.Electric control system

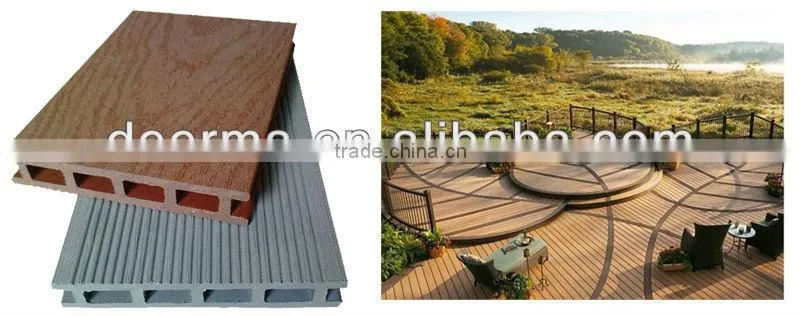

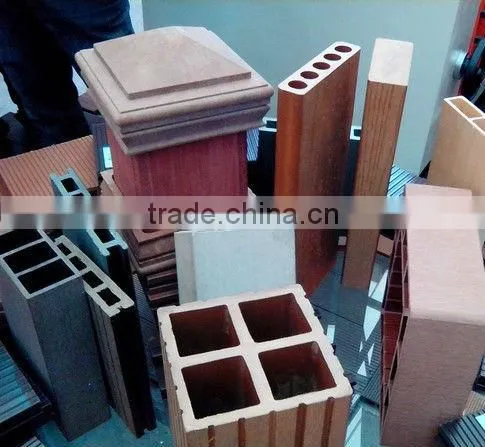

Application
wpc production line is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.
Certification
Services
1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.
3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
Our Partner
Our company
We have two this production lines in our showroom for other customer , welcome to visit our factory
