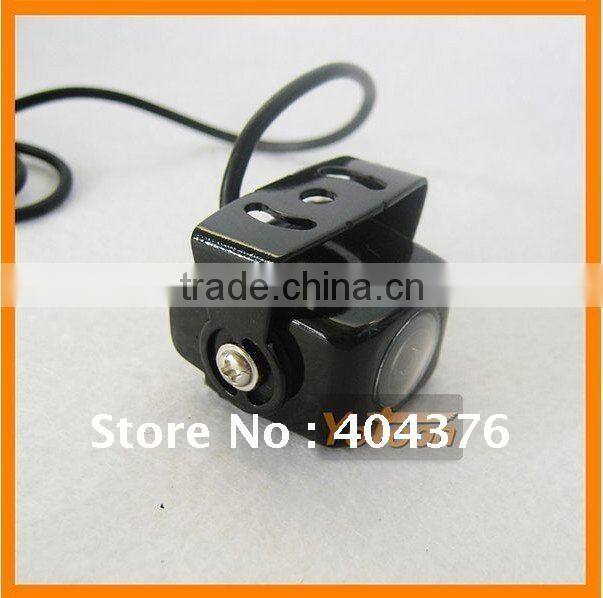

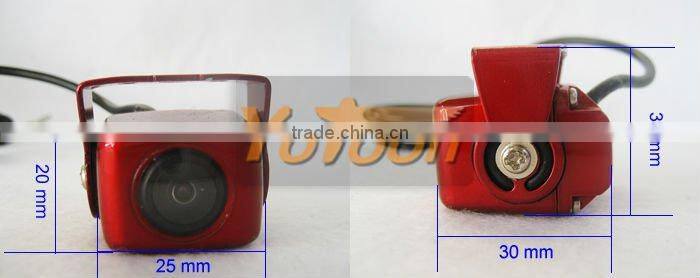

Rear Car Camera 170 Angle Camera Guard Line CCD Effect(black)

Rear car camera1.Waterproof performance is good

2.Small compact size

3.Power saving

4.high sensitivity design

Car Rear view camera with guard line function and CCD effect

Available in red,silver & black (Please select one of the colors when you win the bid,Thank you very much!)

Technical Data

Image Sensor: OV7950
Effective Pixels: NTSC: 656×492
Protection Category: IP67-IP68
Signal System: NTSC / PAL
Resolution: 420 TV Lines
Shutter Speed: 1/50-60~1/15000 second
S/N Ratio: ≥48db
Minimum Illumination: <0.2Lux
Video Output: 1.0Vp-p, 75 OHM
Power Supply: DC12V ± 20%
Current Consumption: Max. 70mA
Operating Temperature: -20°C ~ 65°C
Lens Angle: 170 deg.
Reversing Guard line: Available

Main Features

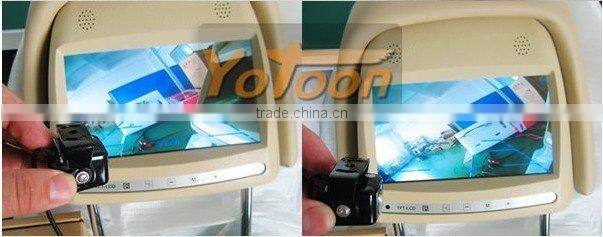

Displays a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror
The best solution to replace that poor rear view visibility on your car, boat, trailer, camper, truck etc.
Connect to any type of monitor with a composite yellow RCA jack for the clear image
Small compact size, Power saving and high sensitivity design
Waterproof performance is good
can be installed easily
Long lines, 5M

Installations

1 setp. Mount the camera at the back of the car(on the license plate,or other place)
2 setp. Connect the yellow video output connector to terminal display device
3 setp. Connect the black power input connector to power output device

Package included

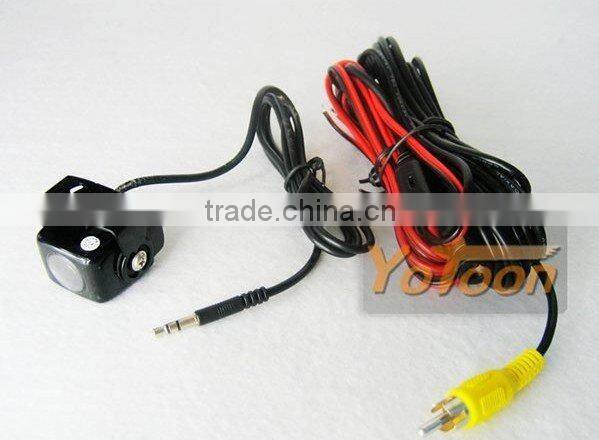

1 X Car Rear View Camera
1 X DC power cable

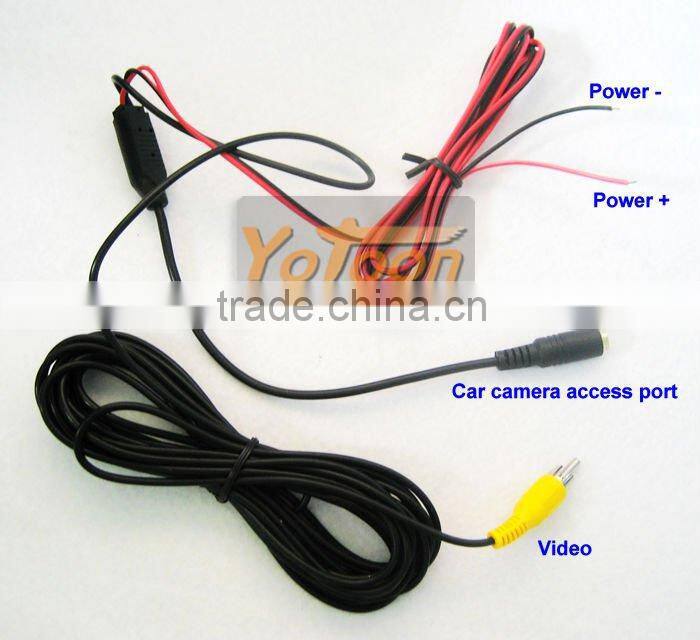

1 X 5M AV cable
1 X Manual
