Car Rear view camera with guard line function and CCD effect

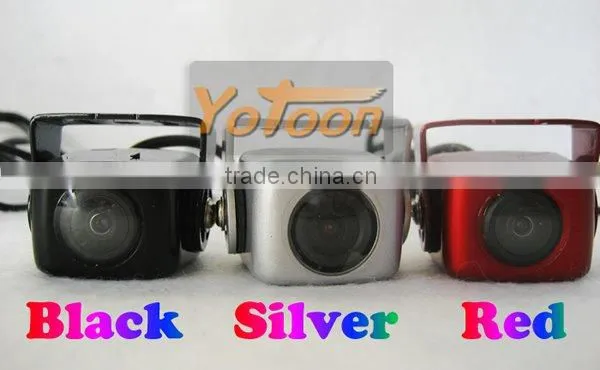

Available in red,silver & black
(Please select one of the colors when you win the bid,Thank you very much!)
Technical Data
Image Sensor: OV7950
Effective Pixels: NTSC: 656×492
Protection Category: IP67-IP68
Signal System: NTSC / PAL
Resolution: 420 TV Lines
Shutter Speed: 1/50-60~1/15000 second
S/N Ratio: ≥48db
Minimum Illumination: <0.2Lux
Video Output: 1.0Vp-p, 75 OHM
Power Supply: DC12V ± 20%
Current Consumption: Max. 70mA
Operating Temperature: -20°C ~ 65°C
Lens Angle: 170 deg.
Reversing Guard line: Available
Main Features
Displays a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror
The best solution to replace that poor rear view visibility on your car, boat, trailer, camper, truck etc.
Connect to any type of monitor with a composite yellow RCA jack for the clear image
Small compact size, Power saving and high sensitivity design
Waterproof performance is good
can be installed easily
Long lines, 5M
Installations
1 setp. Mount the camera at the back of the car(on the license plate,or other place)

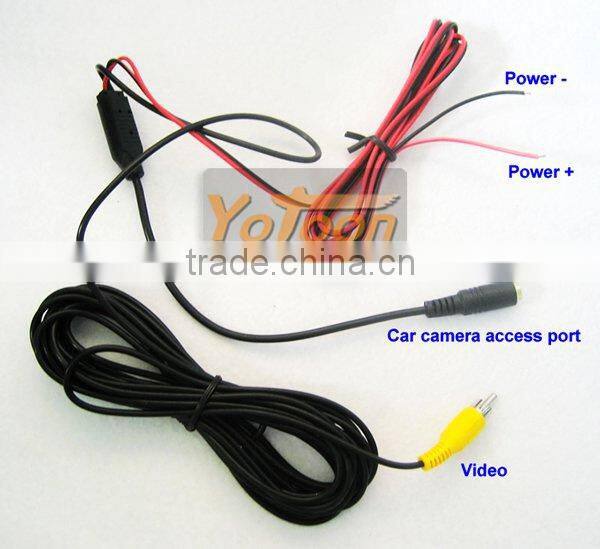

2 setp. Connect the yellow video output connector to terminal display device
3 setp. Connect the black power input connector to power output device

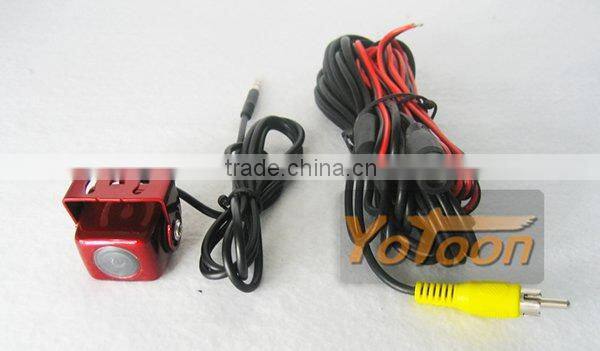

Package included
1 X Car Rear View Camera
1 X DC power cable
1 X 5M AV cable
1 X Manual
