Metal Craft Dragon

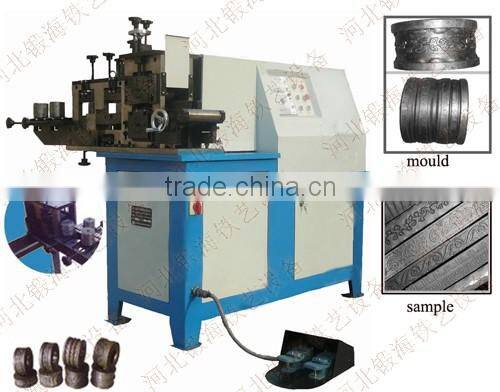

Cold Rolling Embossing Machine

Max

Working

Ability

DH-DL60A

DH-DL60C

DH-DL100D

Flat iron

≤10X60mm

≤10X60mm

≤10X80mm

Square steel

≤40X40mm

≤40X40mm

≤40X40mm

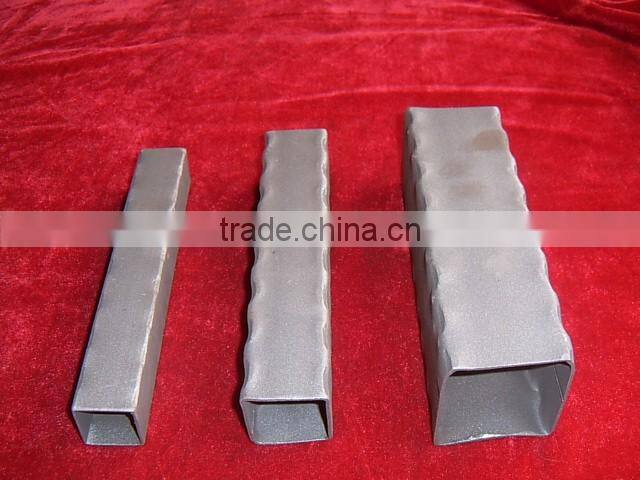

Square tube

≤60X60mm

≤60X60mm

≤100X100mm

Round bar

≤30mm

≤30mm

≤30mm

Process speed

270 meters/hour

0-500 M/H

0-500 M/H

(Motor)

cycloidal planetary gear speed reducer

Constant speed

Stepless speed Variation

Stepless speed Variation

5.5kw 380v 50HZ

5.5kw 380v 50HZ

5.5kw 380v 50HZ

External dimension (LXWXH)mm

1800x1260x1350

1600x1260x1450

1600x1260x1530

Main features

DH-DL60A

l         This machine using modular composite structure, rational design and advanced technology

l         It adopt cycloidal planetary gear speed reducer, so running smooth, safe and reliable.

l         Excellent comprehensive processing performance, cold-rolled moderate speed, equip with leveling and straighten device apparatus

l         It designed both manual control and foot switch, high production efficiency.

DH-DL60C

l         This machine is the third generation of cold rolling embossing machine

l         The main difference is which adopt stepless variation motor.

l         The scope of speed adjust is more large, you can change the speed from 0-1250r/m

l         It make the working speed changing more easy and safe

l         In the structure of machine, more smaller ,so save the shipping cost much.

DH-DL100D

l         This machine was developed from DH-DL60C.

l         So it possess all excellence of DH-DL60C

l         The main difference than DH-DL60C is the max working ability. Which is more larger. Please see the above <Max Working Ability
