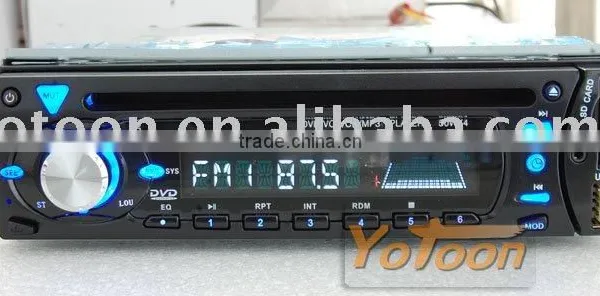

CAR DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT

Shenzhen CAR DVD Player/CD/MP3/USB/SD CARD AM/FM PLAYER+AUX INPUT

Specifications

General
power requirements:14.4V DC
load impedance:4Ω
Max.power output:50W×4
Tone controls:±8dB(Bass 100Hz,Treble10KHz)
Dimensions:Approx.192×178×50mm(d×w×h)
Mounting Dimensions:Approx.169×182×53mm(d×w×h)
Weight:Approx.1.75kg

DVD Deck Section

Discs Played:DVD,VCD 1.0/1.1/2.0/3.0,MP3,CD CD-R,CD-RW,PICTUER-CD
Video System:AUTO/PAL/NTSC
Mounting Angle:0to+/-30

Video Section

Video System:4:3 letter Box and 4:3 Pan Scan
video output level:1.0Vp-p 75 ohms
Horizontal Resolution:500

Audio Section

Maximum outputlevel:2Vrms(+/-3dB)
Frequency Response:20 to 20 Khz
Signal-to-noise ratio:85dB
Separation:80dB

AM Tuner Section

Frequency Range:522-1620(Europe/china),530-1710(u.s.a)
IF Range:450KHz
Usable Sensitivity(-20db):25db

FM tuner section

Tuning Range:87.5-108
IF Range:10.7MHz
Usable Sensitivity(-30dB):15dB
Signal-to-noise Ratio:60dB
Stereo Separation:30dB(1KHz)
Frequency Response:30-15000H
