Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Storage & Transportation Equipment > Milk Cooling Tank

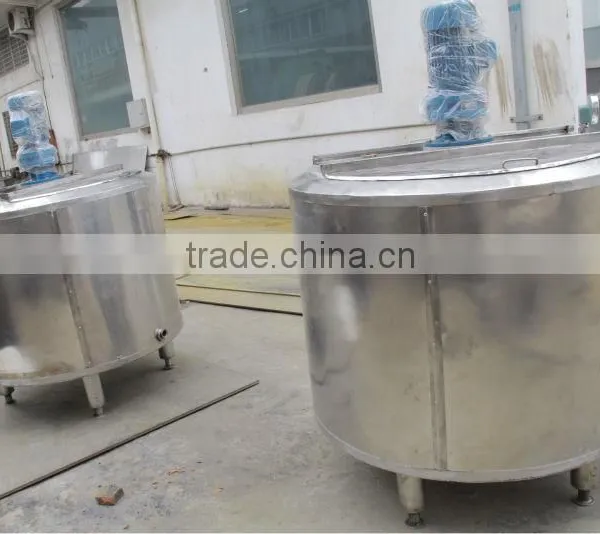

Milk Cooling Tank

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2013

Factory Size:

3,000-5,000 square meters

Contact Supplier Request Quote Chat Now

Wenzhou Huayou Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Specifications

1. Energy-Saving
2. Noise Reduction
3. Corrosion Resistance
4. Strong Production Capacity
5. Easy Clean

Usages

Cold and hot tank is also known as aging tank ,It is widely used in dairy industry, food, pharmaceutical, chemical, beverage and other industrial departments to heat, cool, insulate sterilization processing or store slurry. Especially suitable for the pasteurized milk, and is the necessary equipment in ice cream production line.

Classification

1. According to Structure: opening on the head & ramp bottom, opening on the head & conical sealed head on the bottom

2. According to Heating Type: there are Steam Heating and Electric Heating

3. According to Volume: there are 100L-10000L, also can design and facture in accordance with customers’ requirements.

Structure

Structure: the interior, jacket, insulation layer, the outer foreskin, speed reducer, agitator, thermometer and so on.

The interior: stainless steel SUS304, mirror-polished surface.

Jacket: the A3 or 1Cr18Ni9Ti steel plate, strengthen circle spiral device, the cold water from bottom to top (without pressure), to achieve the best heating and cooling purposes.

Insulation group: stainless steel plate cast into scales, insulation layer use polyurethane or mineral wool to keep the temperature, achieve insulation effect.

Speed reducer:cycloid planetary reducer, fixed in the tray of the beam, a shaft gear wheel connect with the impeller flexibly for easy removal and cleaning.

Thermometer: specification 100C-1000C, installed on the beam, straight out to minimum medium position, makes sure that can indicate temperature even when the liquid material to the lowest position, to achieve sterilization and aging purposes.

Technical Parameters

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter(mm)	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body Height(mm)	600	800	800	800	1000	1220	1220	1500	1500
Motor Power(kw)	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring Speed(rpm)	36r/min
Working Pressure	≤0.09Mpa
Working Temperature	<100°C
Accessories	Thermometer,safety valve,pressure gauge

Notes

1. The nominal capacity and size in the chart is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
