Specifications
300L steam cooking kettle without agitator1. big being heated area
2. high thermal efficiency
3. heating evenly
300L steam cooking kettle without agitator
Vertical jacketed kettle alternate name is vertical steam kettle,vertical steam cooking kettle,vertical steam jacketed kettle, mainly composed of pot and tilting frame, usually suitable for liquid materials.
Vertical jacketed kettle usual have big being heated area, high thermal efficiency, heating evenly, being short time of boiling, easy control of the heating temperature, beauty appearance, easy install, easy to operate, safe and reliable etc.
300L steam cooking kettle without agitator characteristics:
- Vertical jacketed kettle not only can certain pressure steam as heat source, heat conduction oil or gas can also be used as heat source.
- Vertical jacketed kettle usual have big being heated area, high thermal efficiency, heating evenly, being short time of boiling, easy control of the heating temperature, beauty appearance, easy install, easy to operate, safe and reliable etc.
300L steam cooking kettle without agitator technical parameters:
Metric volume(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
Caliber (mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 | Φ1200 | Φ1300 | Φ1400 | |
Depth of pot(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 | |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 | |
Pipe size | Steam pipe | 3/4” | 1” | 2” | ||||||
Condensate pipe | 3/4” | 1” | ||||||||
Interlayer work pressure | ≤0.09Mpa(can be adapted according to customer requirement) | |||||||||
Mixing speed | 36 r/min(can be adapted according to customer requirement) | |||||||||
Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | |

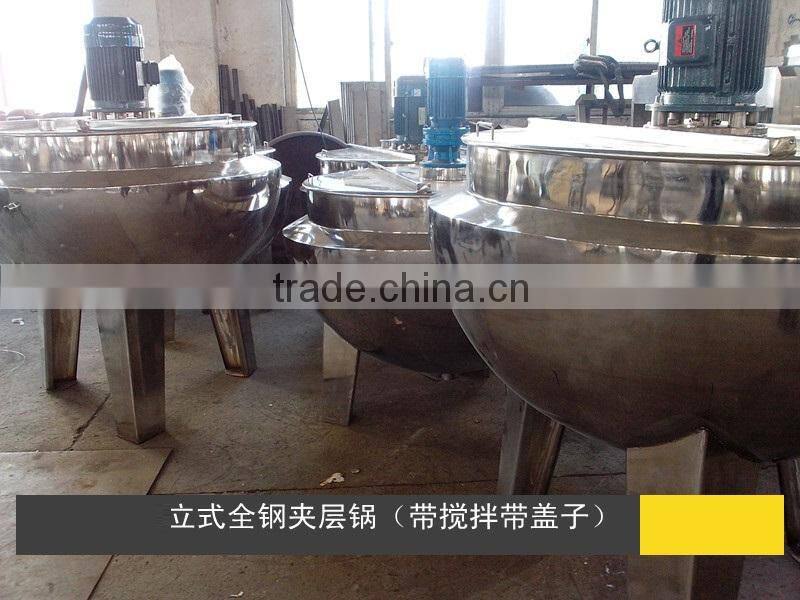

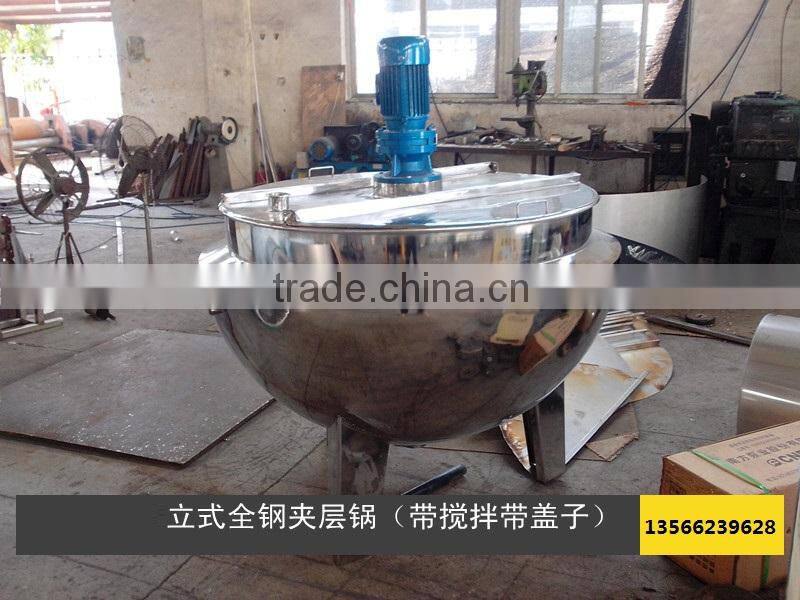

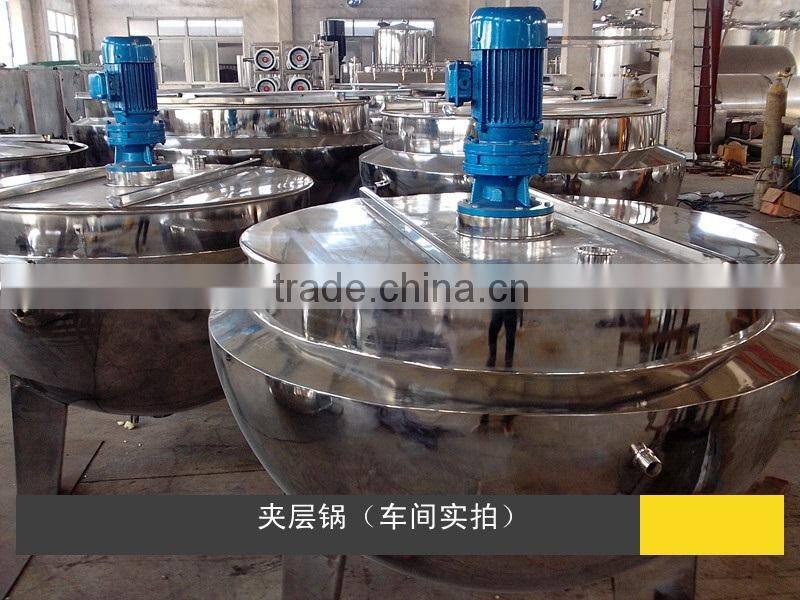

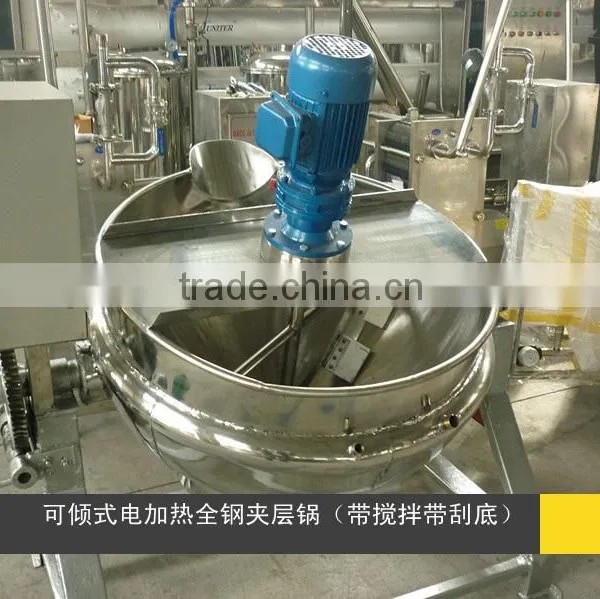

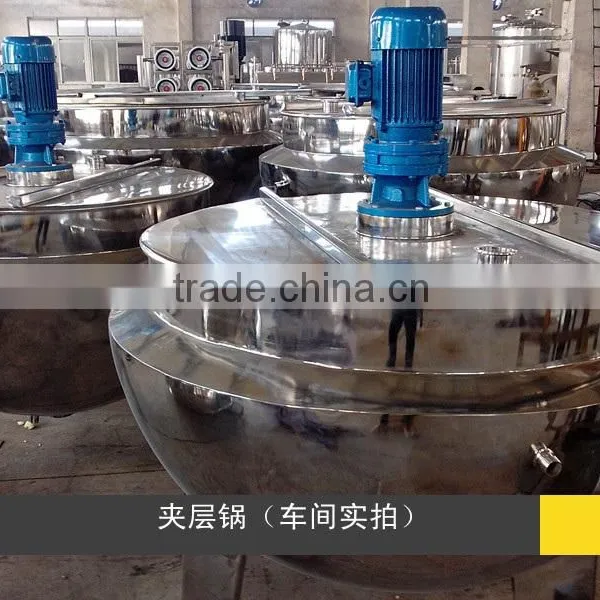

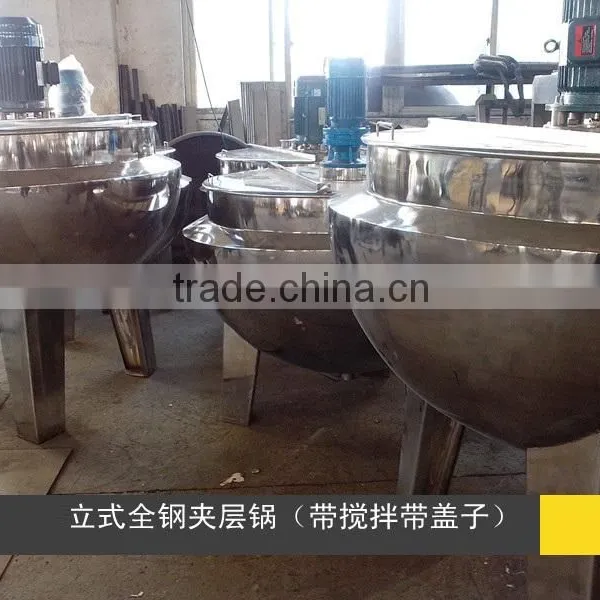

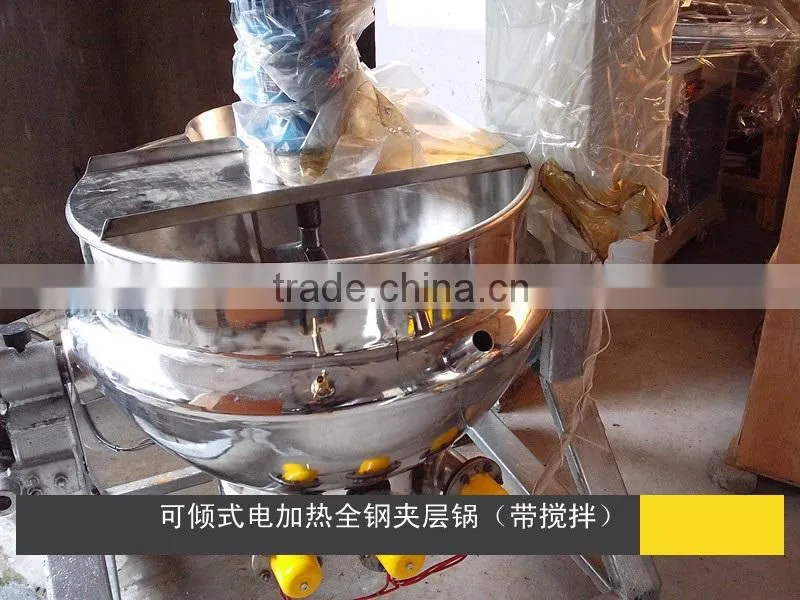

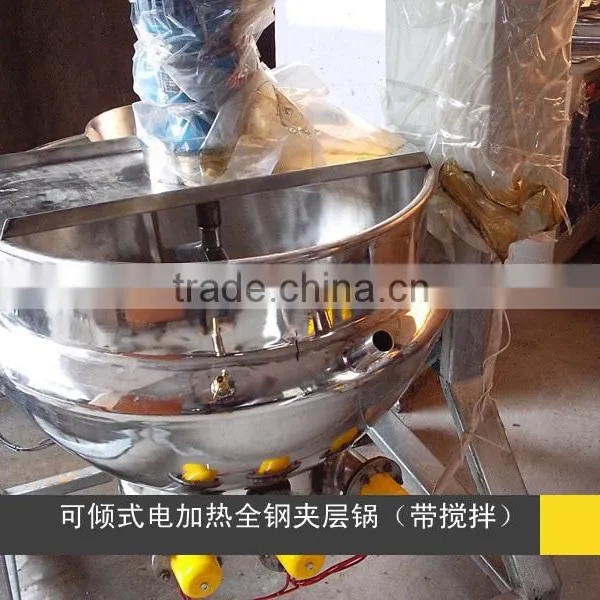

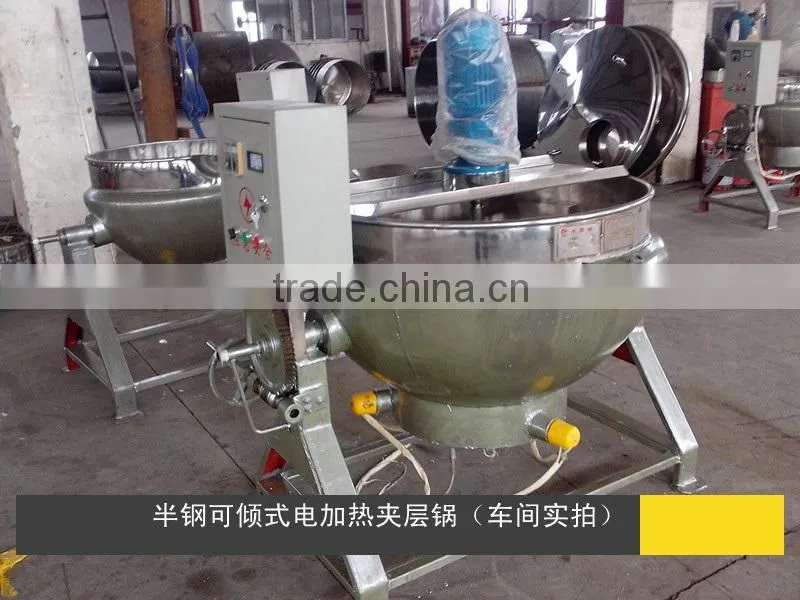

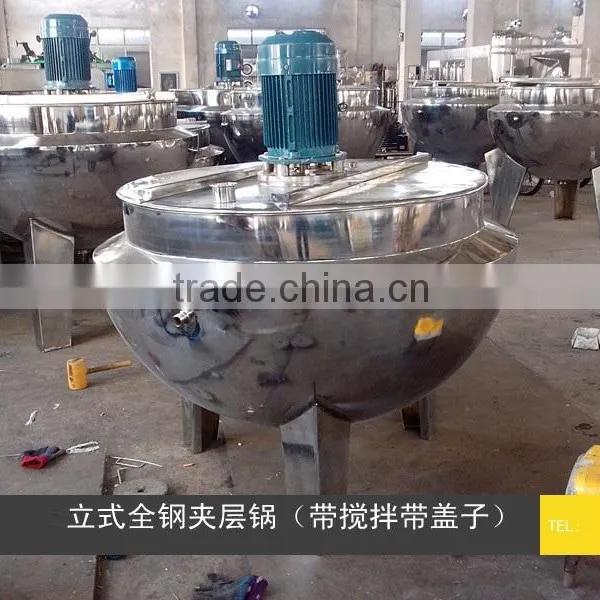

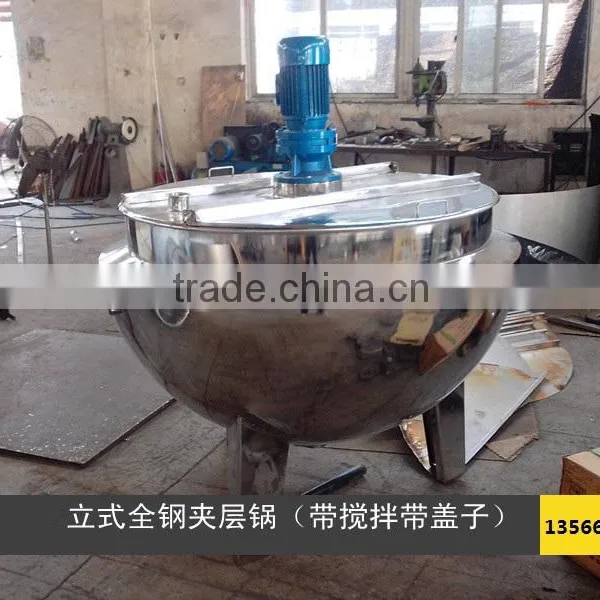

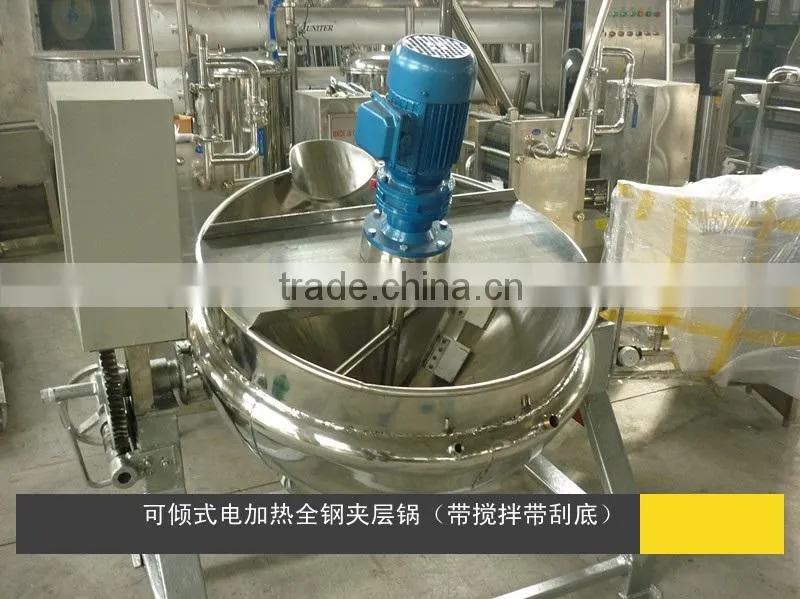

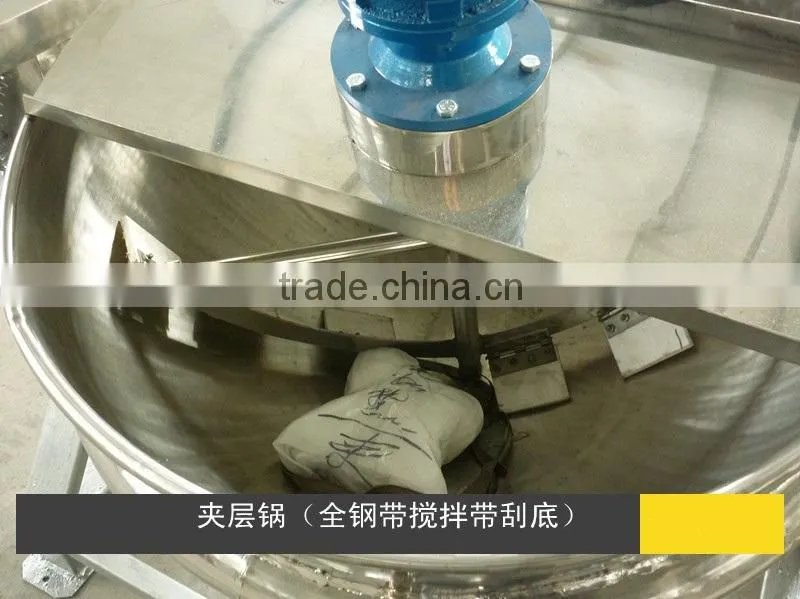

This type is with agitator
It can be used to boil soup, cook, stew and porridge in some large restaurants and canteens
This type is without agitator ,if needs we can do cover.
