Specifications
Tilting&Agitation Jacketed Kettle,steam heating ,electrical heating, gas burner heating,tilting,vertical jacketed kettle.electric heating jacketed kettle
Our company 's jacketed kettle is made of SUS304 or SUS316L, it also can according to the customer requirements

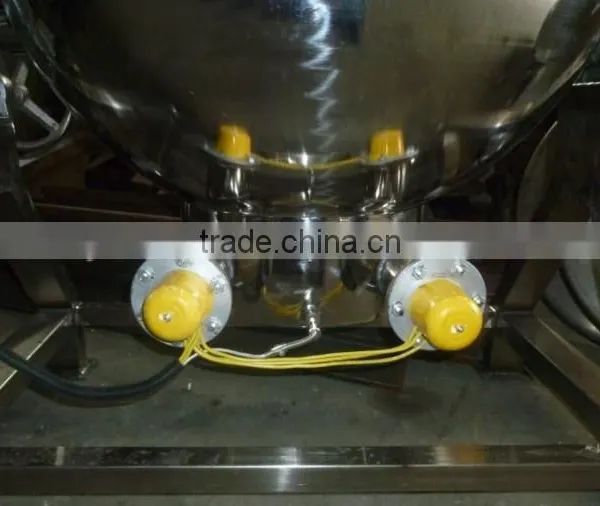

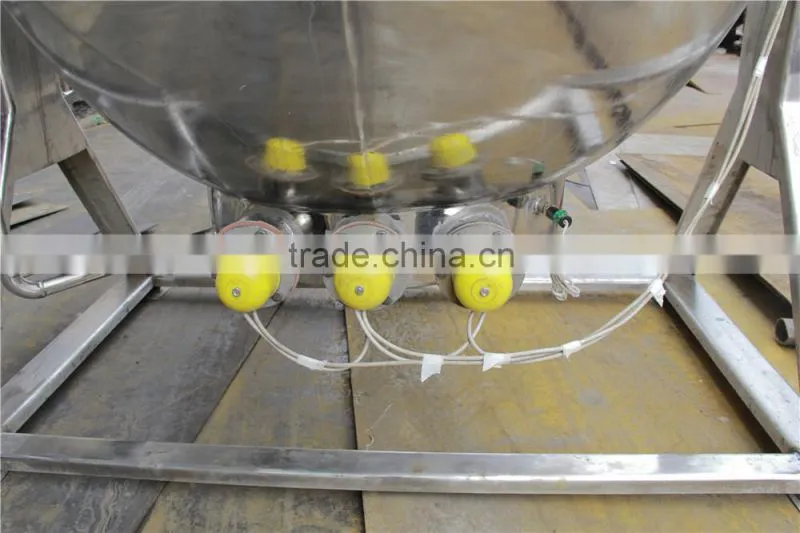

Electric heating jacketed kettle's heating power is electric

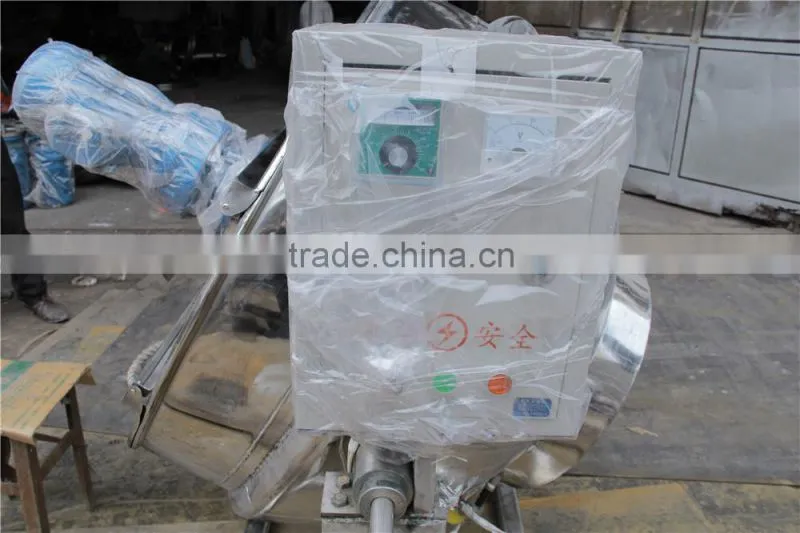

It control by the electric cabinet

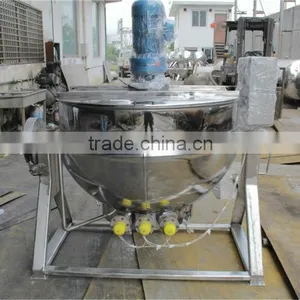

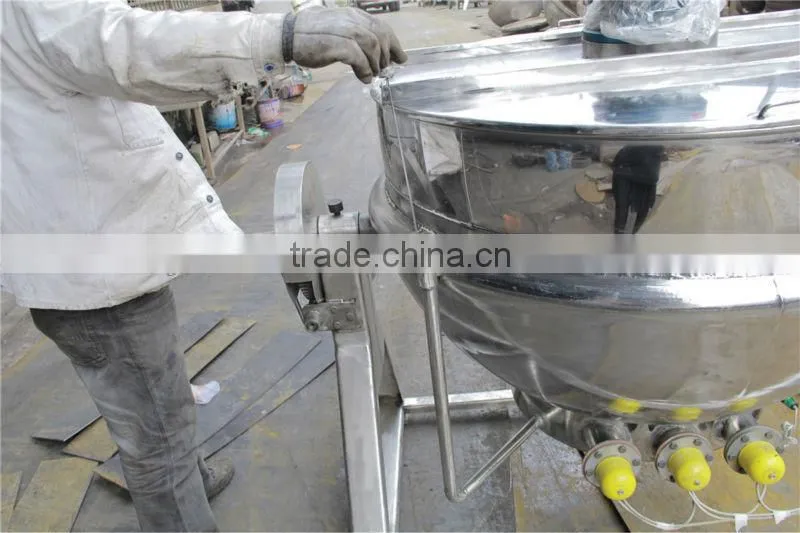

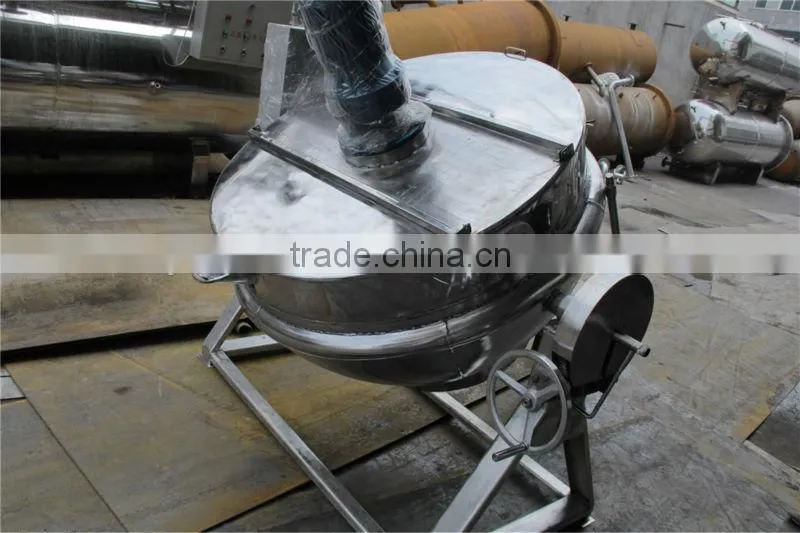

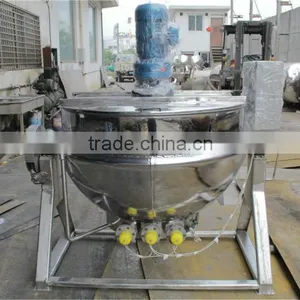

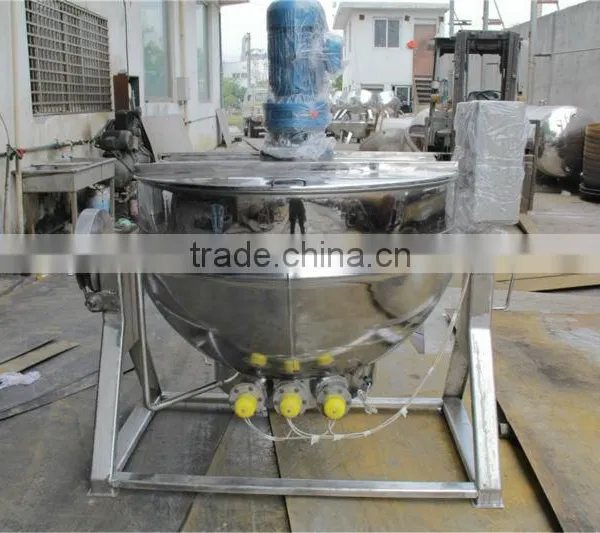

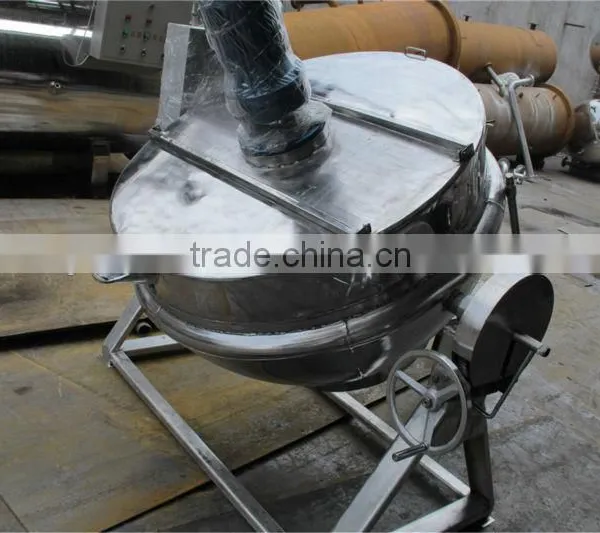

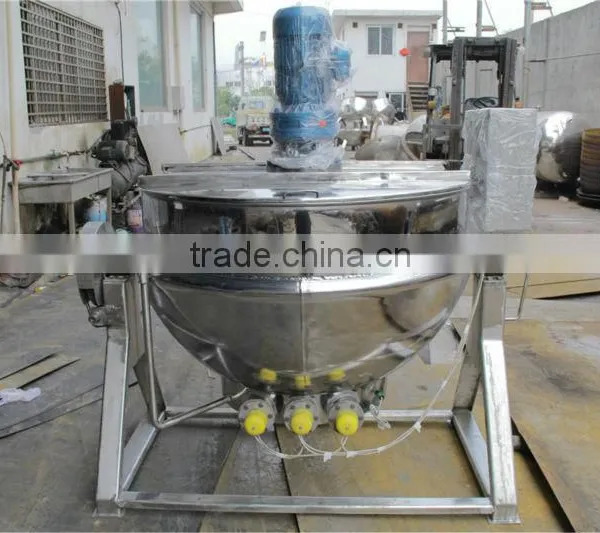

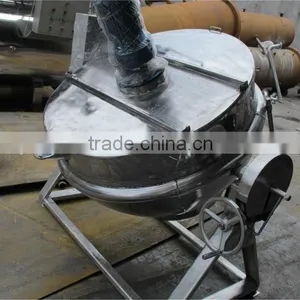

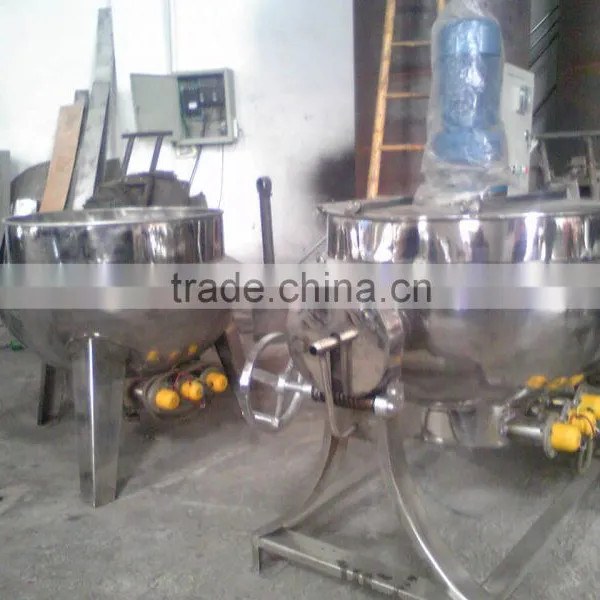

This tilting type is easy for material pour-out

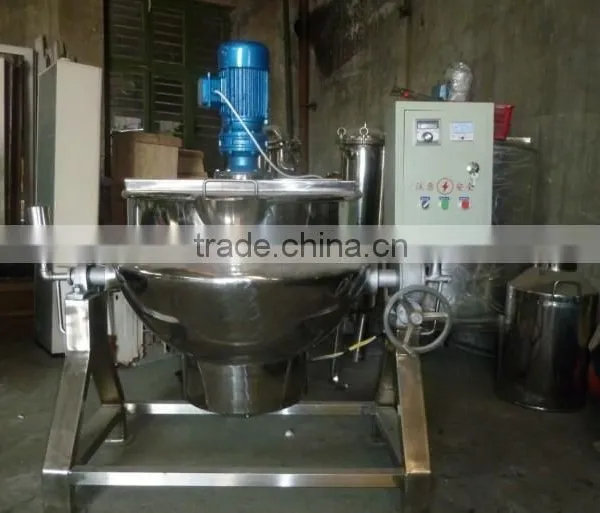

Tilting jacketed kettle made of acid and heat-resisting stainless steel 304, equipped with a pressure gauge and relief valve, electric cabinet. Equipment is beautiful, easy installation, convenient operation, safe and reliable. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc. It can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
300L Tilting jacketed kettle characteristics
Tilting jacketed kettle has the characteristics of heating efficient, safe and convenient. It is suitable for block material, such as chicken, chicken feet and other granular material.
300L Tilting jacketed kettle Technical parameters:
Metric volume(L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
||||||||
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1300 |
Φ1400 |
||||||||
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
||||||||
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
||||||||
Heater Power(kw) |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 |
||||||||
Heat conduction oil(L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
||||||||
Interlayer work pressure |
≤0.09Mpa(can be adapted according to customer requirement) |
||||||||||||||||
Mixing speed |
36 r/min(can be adapted according to customer requirement) |
||||||||||||||||
Mixing power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
||||||||
