Help CenterCIP Rinsing Machine
Related Products
Specifications
Industrial CIP Washing Machine1.Cleaning in place
2.High sanitary level
3.Widely used in types of containers
4.With CE
|
Product Description
Industrial CIP Washing Machine 's Suitable Material
|
|
The Industrial CIP Washing Machine is widely used in 1.food ,drinks,wine, and medicine processing industries; 2.pre-process system, blending system, the pipeline, all kinds of storage tanks, heat exchanger,filling machine in dairy or beverages industry containers, etc.
CIP is locally known as in situ cleaning system, referring to CIP, also known as cleaning position or positional cleaning (cleaning in place). Cleaning in place means not open or move device, which is, using cleaning fluid which is high temperature and high concentration to impose force on device equipment, thus cleaning the contacting surfaces. It is suitable for cleaning and purity of production device which is of high demand to sanitary level.
|
| Industrial CIP Washing Machine 's Characteristics |
|
1.Economic operation, low cost, compact structure, small area, simple installation and maintenance.
2.Processed in confined equipment (tank containers and pipeline), thus greatly reducing the chance of secondary contamination.
3.Can clean several district at the same times, it also can clean during the production process. Thus greatly reduced the production time of the CIP cleaning.

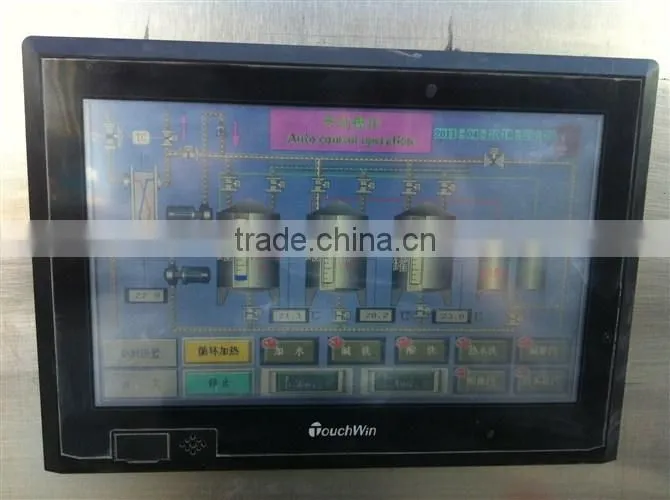

4. It can automatically switch process parameters and adjust cleaning time, PH, temperature and other parameters. Especially the automatic CIP can automatically detect, plus liquid, emissions, display and adjust to cleaning fluid. It is more in line with sanitary requirement and production environment demand of modern large-scale fluid drugs and food processing because its reliable operation, high automation, simple operation and good cleaning effect.
5. All operations can be recorded to facilitate GMP certification.
6. CIP Cleaning System divided into one-piece type, dual tanks and multi tanks. |
| Industrial CIP Washing Machine 's Material and Structure |
|
The Industrial CIP Washing Machine material from Wenzhou Huayou Machinery Manufacture Co., Ltd. usually uses SUS304 or SUS316L to make if the customer has no special requirements.
|

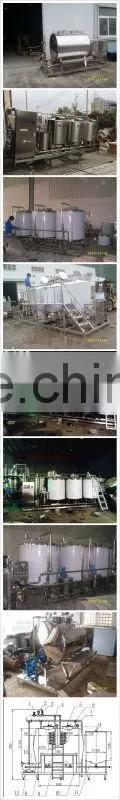

| Industrial CIP Washing Machine 's Detailed Picture |
|
|
| Industrial CIP Washing Machine 's Technical Parameter | ||||||||||||||||||||||||||||||||||||||||||
Notes:
1. The technical parameters in the chart are standard parameters, if customers have other requirements, please put forward.
2. The tank volume can be 500L-4000L or customized.
|
|
Our Services
Why Choosing Our Industrial CIP Washing Machine
|
| 1.Huayou machine have sales department, engineering department, after sales department, we are all service for you; 2. We are not competing for the price but the high quality and friendly service we competition 3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you; 4. The after sales colleague will service for you from place an order to the actual production; 5. 9 years of industry experience, industry leader; 6. Factory, office site visit. |
We design and manufacture a variety of CIP cleaning systems for you to choose!
Please tell us your detailed requirements, contact us at any time!
