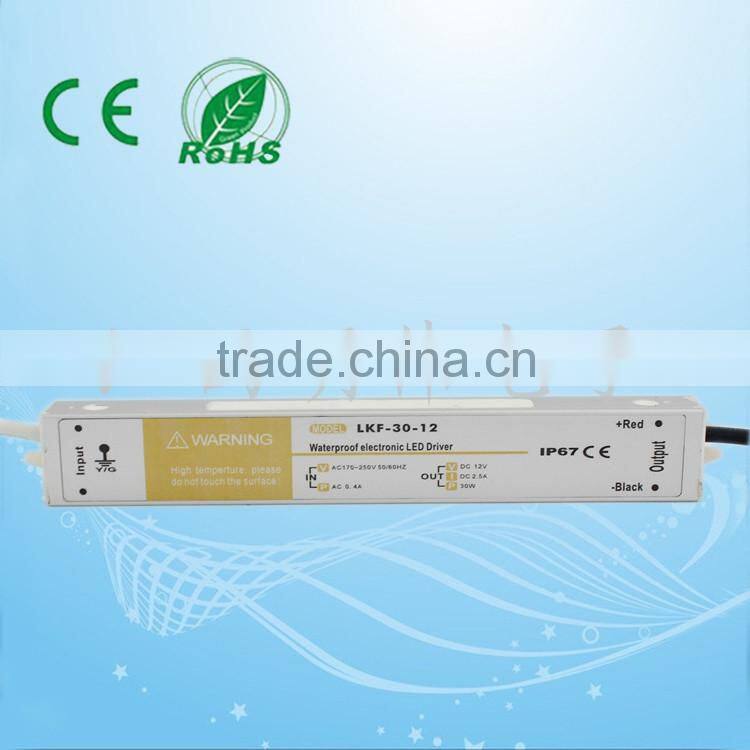

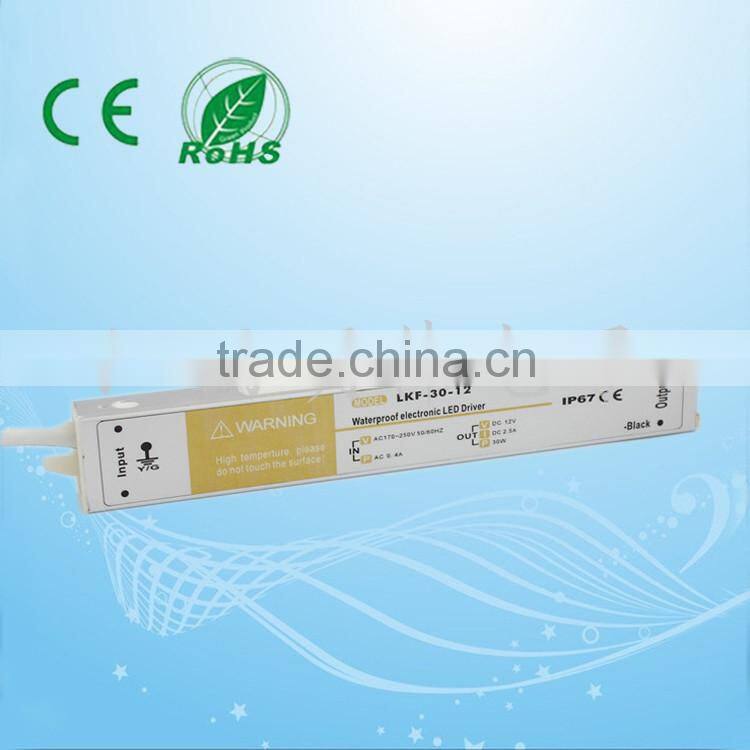

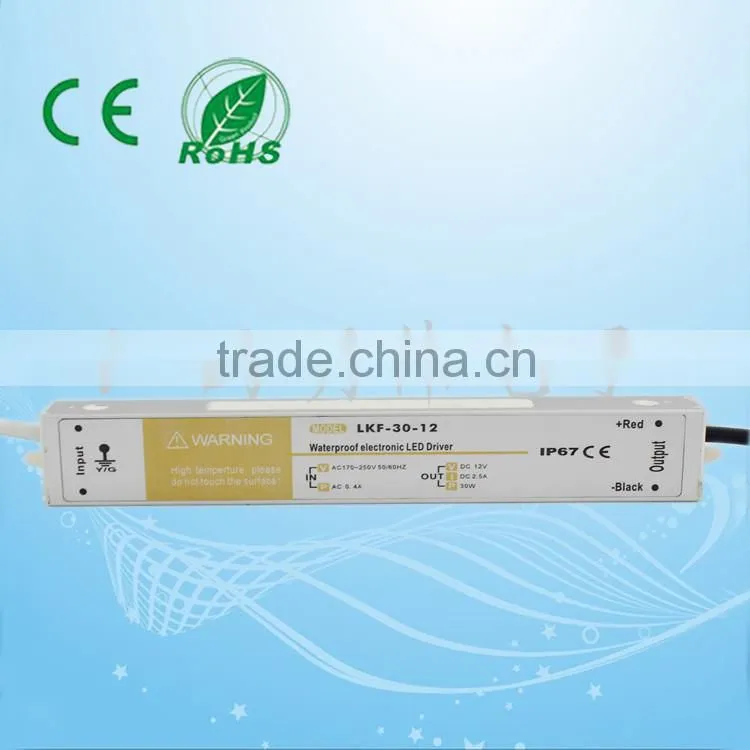

Welcome to visit our website,my friend! Glad to introduce ac to dc waterproof led power supply 12v . If you have any questions, please don't feel hesitate to ask me.
Product Features :
High efficiency up to 86%
85~132VAC or 176~264VAC input selectable by switch
Protection: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
Certificates: CE UL ROHS EMC
2 years warranty
| ITEM NO:FSPV-30W LED Waterproof Series | |||
| Connection: 20cm wire | |||
| AC Input:L(brown) N(blue) | |||
| DC Output:+V(red) -V(black) | |||
| CASE:P24-12 222×30×20mm | |||
| Model | FSPV-30-12 | FSPV-30-15 | FSPV-30-24 |
| performance | |||
| Output | 12V,0~2.5A | 15V,0~2A | 24V,0~1.3A |
| Error | ±5% | ±5% | ±5% |
| range | 100mV | 100mV | 150mV |
| Efficiency | 78% | 78% | 80% |
| AC input voltage range | 170~264VAC 47~63Hz 240~370VDC | ||
| Input current | 0.42A/230V | ||
| AC dash current | Cold-start current 30A/230V | ||
| Leakage current | <0.5mA/240VAC | ||
| Overload protection | 102~107%pulsing hiccup shutdown,auto-recovery | ||
| Over-voltage protection | |||
| High-temperature protection | ≥105℃ pulsing hiccup shutdown,auto-recovery | ||
| Waterproof level | IP67 | ||
| Startup .rise .retention time | 200ms 100ms 30ms | ||
| With standard voltage | I/P-O/P:1.5KvAC 1 minute I/P-FG:1.5KvAC 1 minute O/P-FG:0.5KvAC 1 minute | ||
| Working temperature and humidity | -10℃~+60℃,20%~90%RH | ||
| Weight /Packing | 0.25kg,80pcs/21kg | ||
| 222×30×20mm | |||
Our advantages:
Professional Production Experience:Professional manufacturer and have more than 11 years in this domain.
Quality Ensure: We have R&D department with more than 20 people to insure our product using advanced technology, based Preparation, operation, to ensure the quality of products to be in the industry leading level.
Quality Inspection: Mature quality control system, we have professional test team from the raw material to finished products.
On Time Delivery:With more than 1000workers and factory covering more than 21000 square meters, we can guarantee the great production and on-time delivery.
Various transportation: Different kinds of transportation are available .by sea, land and air(DHL.TNT.UPS FEDEX EMS)
Warranty and after-sales sevice :More than 2years warranty and good after-sales service .Reply to your questions in 24 hours.
product process
1.Q:Are you a factory or trading company?
A:We are a Factory,Distributor and export Company.
2.Q:Where is your factory located?How can i visit there?
A:Our factory and office is located in Ruijin City,China.You can fly to Ganzhou Airport, clients from home or abroad,are warmly welcome to visit us!
3.Q:How can i get some samples?
A:We are honored to offer you samples. Free sample charge .
4.How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the very end.Our factory has gained CE,ROHS,ISO9001 authentication.
5.How is your guarantee ?
A:All of our power supply products have 2 years guarantee.
