20W 12V mini size switch mode waterproof led power supply
| Model | LKF-20-12 | LKF-20-15 | LKF-20-24 |
| Output | 12V,0~1.7A | 15V,0~1.4A | 24V,0~0.8A |
| Error | ±5% | ±5% | ±5% |
| Range | 100mV | 100mV | 150mV |
| Efficiency | 78% | 78% | 80% |
| AC input voltage range | 170~264VAC 47~63Hz 240~370VDC | ||
| Input current | 0.28A/230V | ||
| AC inrush current | Cold-start current 30A/230V | ||
| Leakage current | Less than 0.5mA/240VAC | ||
| DC adjustable range | ± 10% rated output voltage | ||
| Over load protection | 115~135% cut off the output,auto-recovery | ||
| Waterproof level | IP67 | ||
| Setup rise hold up time | 200ms,100ms,30ms | ||
| Withsatand voltage |
I/P-O/P:3KVAC 1 minute I/P-FG:1.5KVAC 1 minute |
||
| Working temperature | -10 ° C~+60 ° C/20%~90%RH | ||
| Weight/Packing | 0.22KG, 182mm*30mm*20mm | ||

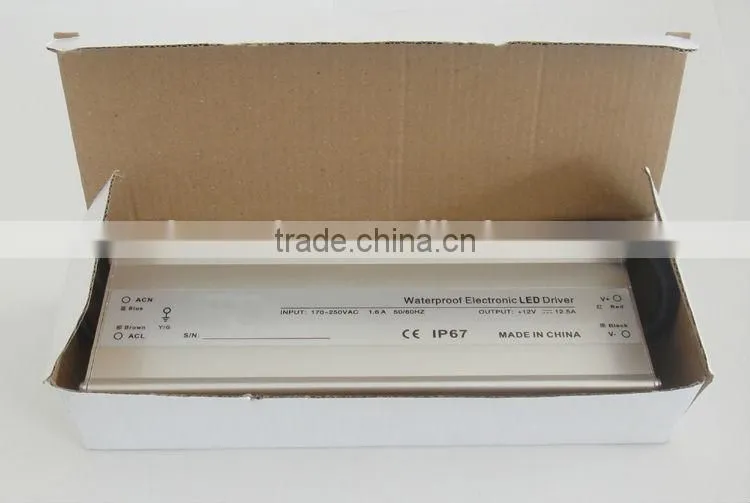

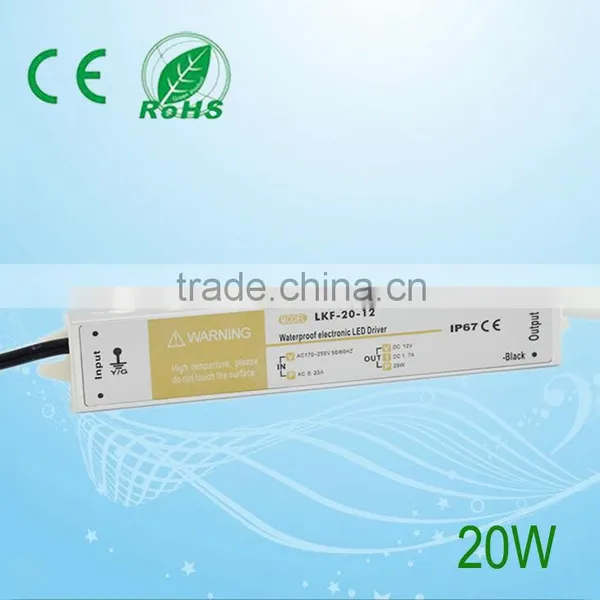

2,Product picture
3.Related certifications
7 Advantages
1,-Global leading professional inverter manufacturer
2,-Perfect product quality:100% full bum-in test
3,-Test report:CE,RoHS,UL,ISO9001-2008
4,-Monthly production capaciy:8,000 pcs
5,-Fast delivery:Usually in 7 days
6,-20,000 square meters workshop,200 skilled workers
7,-OEM & ODM both are warmly welcomed
Mingwei Corporation, founded in 2003,is recognized as the leading manufacturer of industrial switching powelies and inverters in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m²,factory building 20000m².The products include AC/DC&DC/DC standard, PFC, open frame, battary charger, din rail, LED driver and custom-design switching power supplies, over 5000 models showing greating flexibility. “Mingwei” has been a famous brand in China, and incresingly well-known in the world market.

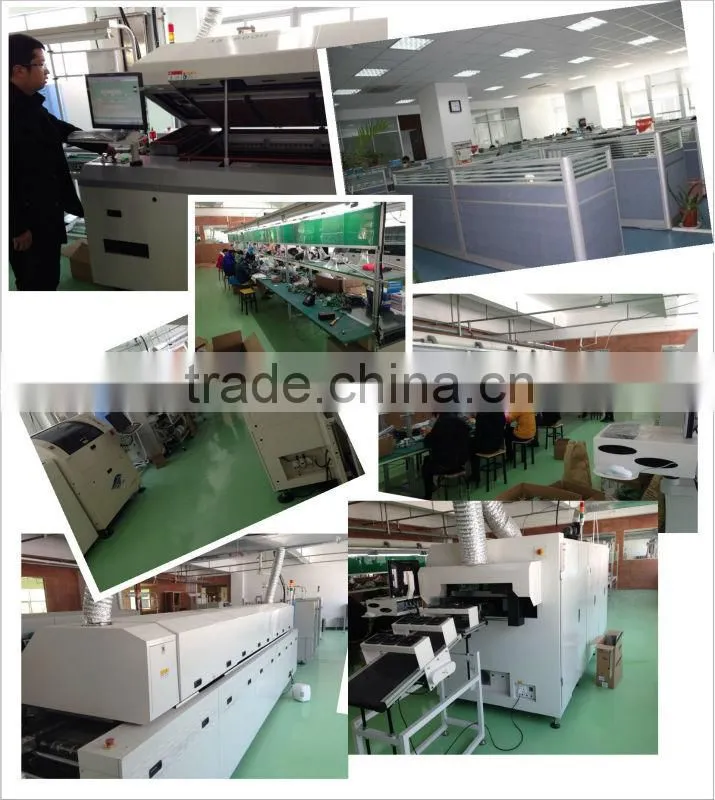

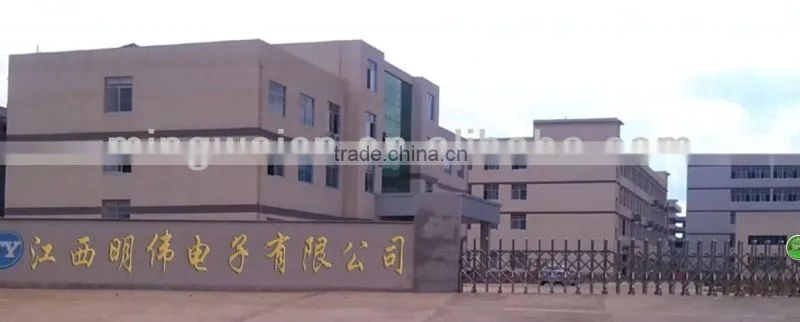

WELCOME TO VISIT OUR FACTORY!
