Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Single Output Type Ac220v 50/60hz Input Voltage 12v ac dc Power Supply 50w Waterprrof Switched Mode Power Supply

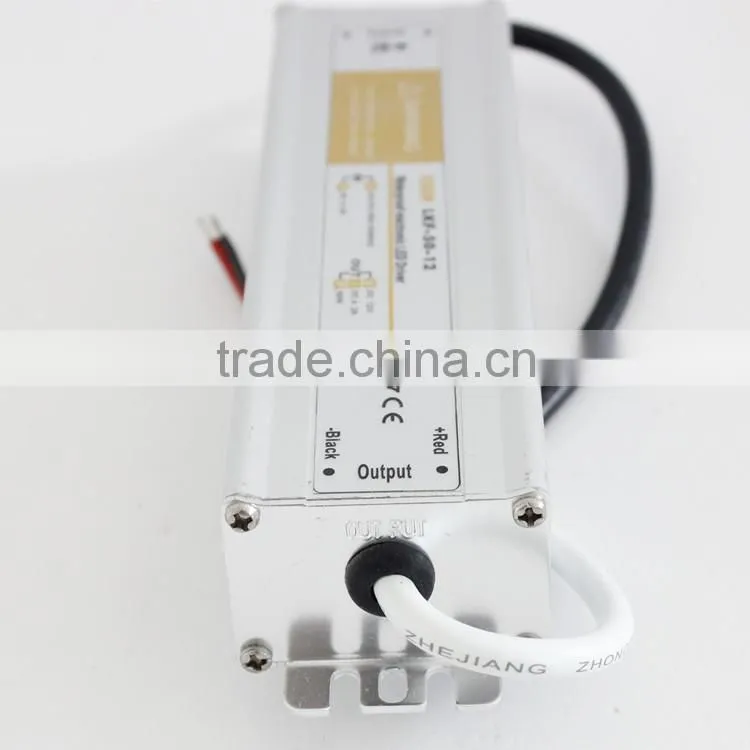

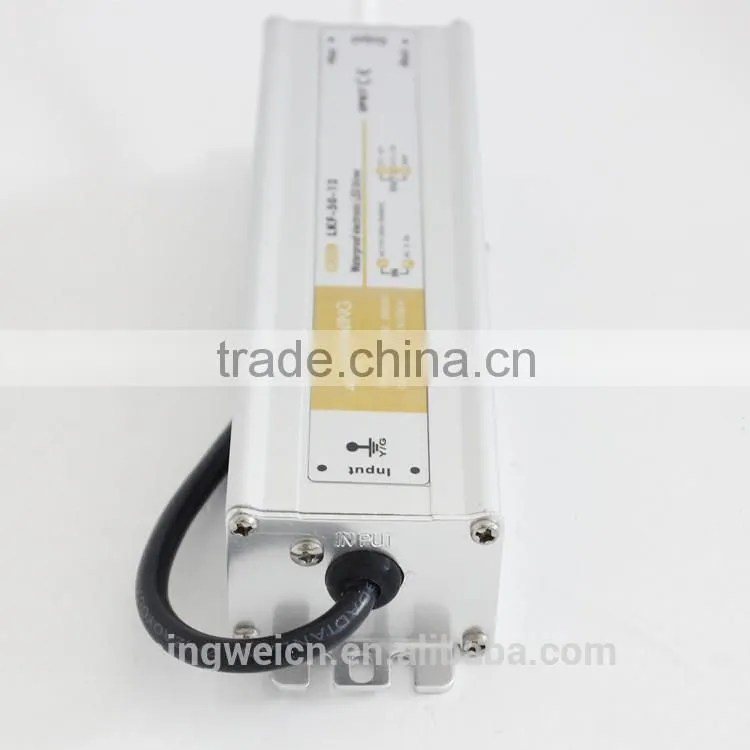

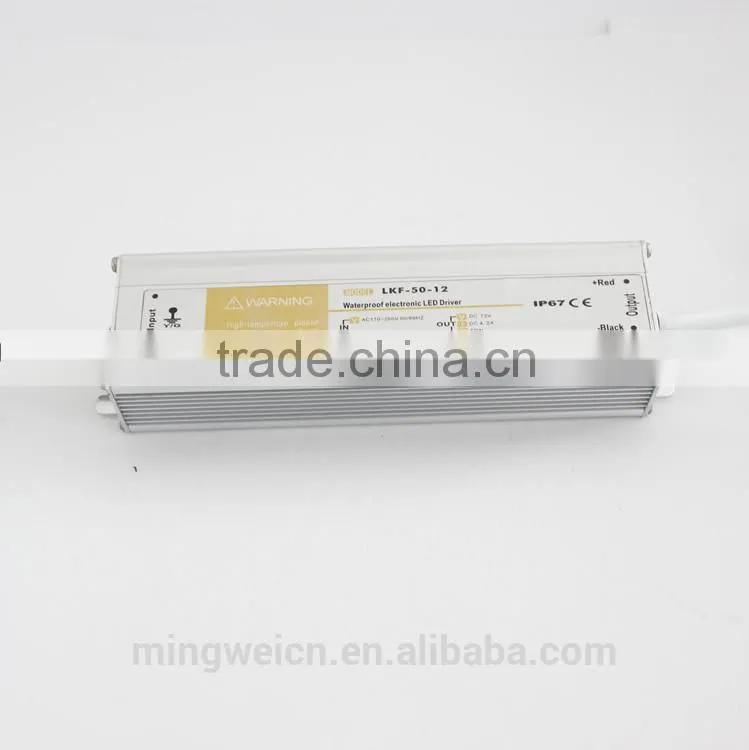

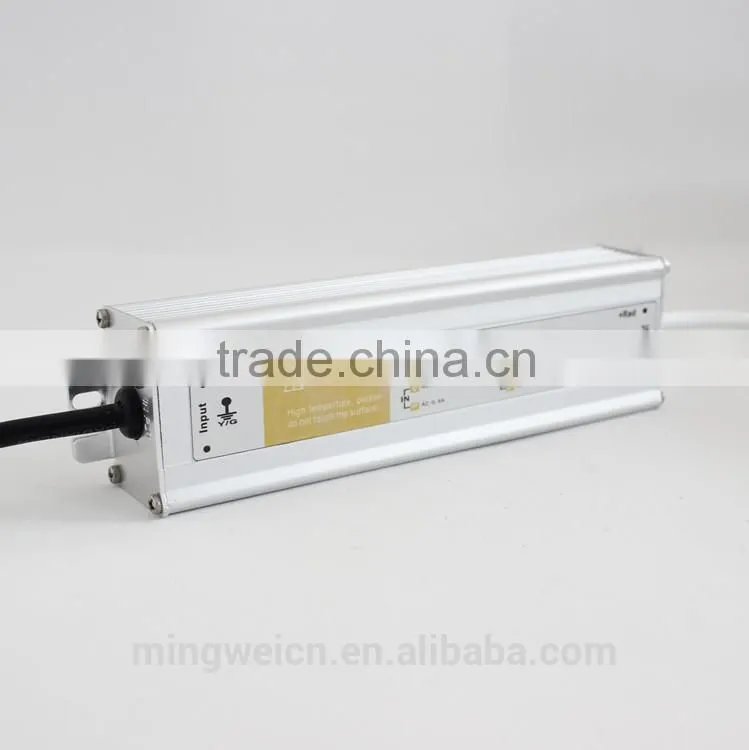

Single Output Type Ac220v 50/60hz Input Voltage 12v ac dc Power Supply 50w Waterprrof Switched Mode Power Supply

Negotiable MOQ: 50 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangxi, China

Brand Name:

MFW

Model Number:

LKF-50-12

Contact Supplier Request Quote Chat Now

Jiangxi Mingwei Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen or shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangxi, China

Brand Name MFW

Model Number LKF-50-12

Output Power Other, 50w

Output Type Single

Input Voltage Other, 220v

Output Voltage 12v

Output Frequency 50/60hz

Output Current 4.2a

LKF-50 series led waterproof power supply
model specification	LKF-50-12	LFK-50-15	LFK-50-24
DC output voltage	12v	15v	24v
Output voltage tolerance	±5%	±5%	±5%
Rated output current	2.5A	2A	1.3A
Output current range	0-2.5A	0-2A	0-1.3A
Ripple and noise	100mvp-p	150mvp-p	150mvp-p
DC output power	50w	50w	50w
Efficiency	78%	78%	80%
Adjustable range for DC voltage	170~264VAV ,47-63Hz ,240~370VDC
Input current	0.65A/230V
AC dash current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	115%~135% hiccup mode,auto-recovery
Over voltage protection	115%~135% cut off the output,auto-recovery
High-temperature protection	≥85°C cut off the output,auto-recovery
waterproof level	IP67
Startup .rise .retention time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC 1 minute I/P-FG:1.5KVAC 1 minute O/P-FG:0.5KVAC 1minute
Working temperature and humidity	-10°C- 60+°C,20%-90%RH
weight/packing	0.6kg/pc,30pcs/carton,19kg in all
dimension	1904838mm

What we can do :

1. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.

2. Support imprint your logo on products and let your logo shine anywhere.

3. OEM/ODM orders are warmly welcome!

Warranty and Return:

1. All products and accessories have been tested by 3 times before ship out.

2. All products have 2 year warranty ,if there is no man-made problem,we will replace or repair for your freely.

3. We own the best after-sale service ,if any problems happen, our team will do our best to solve for customers.

Founded in 2003, Mingwei Corporation has been recognized as the leading manufacturer of industrial switching power supply and inverters in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m2, and the factory building reach 20000m2. Our company offer products and services ranging from switching power supplies AC/DC&DC/DC standard, PFC, open frame, battery charger, din rail, LED driver to power inverter including mini car inverter, modified sine wave and pure sine wave inverter, battery charger, inverter with charger, domestic inverter, dc to dc converter, solar controller, solar power system, jump starters and other solar related products. Besides, more than 5000 models showing great flexibility. We have R&D department with more than 20 people to insure our product quality, with more than 500 workers guarantee on-time delivery.

Mingwei has been a famous brand in China, increasingly well-known in world market.

WELCOME TO VISIT OUR FACTORY!

TEL:+86-797-2322666 FAX:+ 86-595-2322777

Mob. & whatsapp: 86-13459596085 Winnie wang

Skype: winniewang2919

Note: We are always looking for distribution/ agents in many countries.
