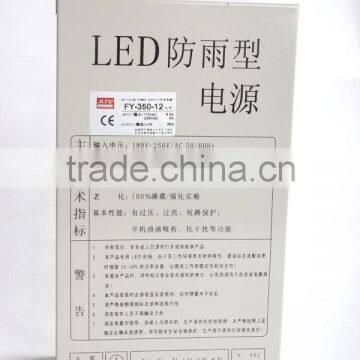

Good quality 350w constant current led driver 5v/12v/24v/36v/48v
Features:
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Cooling by free air convection
v Bult-in constant current limiting circuit
v LED indicator for power on
v 100% full load bult-in test
Applications:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
350 Series Rainproof Switching Power Supply, include output 5v, 12v, 15v, 24v ,36v and 48v power supply.
| Model | FY-350-12 | FY-350-15 | FY-350-24 | FY-350-48 |
| Performance | ||||
| Output | 12V 0~29A | 15V 0~23.2A | 24V 0~14.6A | 48V 0~7.3A |
| Error | ±1% | ±1% | ±1% | ±1% |
| Range | 150mV | 150mV | 150mV | 240mV |
| Efficiency | 80% | 80% | 82% | 84% |
| AC input voltage range | 170~264VAC 47~63Hz 240~370VDC | |||
| Input current | 4A/230V | |||
| AC dash current | Cold-start current 50A/230V | |||
| Leakage current | <3.5mA/240VAC | |||
| Overload protection | 105~150% pulsing hiccup shutdown,auto-recovery | |||
| Over-voltage protection | 115~135% cut off the output,auto-recovery | |||
| High-temperature protection | ≥85℃ cut off the output, auto-recovery | |||
| Waterproof level | IP44 | |||
| Startup .rise .retention time | 200ms 100ms 30ms | |||
| With standard voltage | I/P-O/P:1.5KvAC 1 minute I/P-FG:1.5KvAC 1 minute O/P-FG:0.5KvAC 1 minute | |||
| Working temperature and humidity | -10℃~60℃,20%~90%RH | |||
| Weight /Packing | 16PCS/CTN ; N.W/G.W:18/20KGS, Carton Size:51*31*29cm |
|||
| 242*140*60MM | ||||
16PCS/CTN ;
N.W/G.W:18/20KGS,
Carton Size:51*31*29cm
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port
- 1. Providing free samples for testing
- 2. The most authentic factoryprice.
- 3. We can use your logo and label on our products.
- 4. We can design and develop products according to your requirements.
- 5. We have longterm cooperation with our forwarder,so we can provide you the lowest freight and the fastest service..
- 6. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
- 7. All products and accessories have been tested by 3 times before ship out.
- 8. All products have 2 year warranty ,if there is no man-made problem,we will replace or repair for your freely.
- 9. We own the best after-sale service ,if any problems happen, our team will do
Mingwei Corporation has been recognized as the leading manufacturer of industrial switching power supply and inverters in China.
Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m2, and the factory building reach 20000m2. Our
company offer products and services ranging from switching power supplies AC/DC&DC/DC standard, PFC, open frame, battery charger,
din rail, LED driver to power inverter including mini car inverter, modified sine wave and pure sine wave inverter, battery charger, inverter
with charger, domestic inverter, dc to dc converter, solar controller, solar power system, jump starters and other solar related products.
Besides, more than 5000 models showing great flexibility. We have R&D department with more than 20 people to insure our product quality,
with more than 500 workers guarantee on-time delivery.
Ms.Bella
QQ: 1239279430
Skype: kitty.jully
E-mail:bella&
We are always looking for distribution / agents in many countries.
1.Q:Are you a factory or trading company?
A:We are a Factory,Distributor and export Company.
2.Q:Where is your factory located?How can i visit there?
A:Our factory and office is located in Ruijin City,China.You can fly to Ganzhou Airport, clients from home or abroad,are warmly welcome to visit us!
3.Q:How can i get some samples?
A:We are honored to offer you samples. Free sample charge .
4.How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the very end.Our factory has gained CE,ROHS,ISO9001 authentication.
5.How is your guarantee ?
A:All of our power supply products have 2 years guarantee.
