2000W mean well power supply inverter grid tie with free samples for home appliances
2000W mean well power supply inverter grid tie with free samples for home appliances

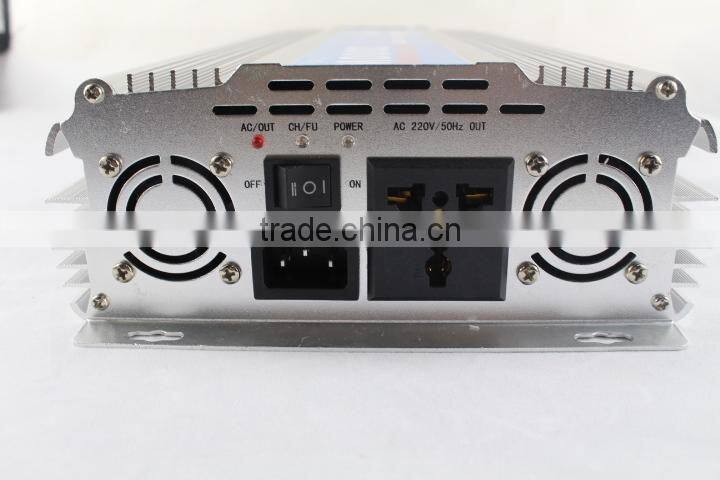

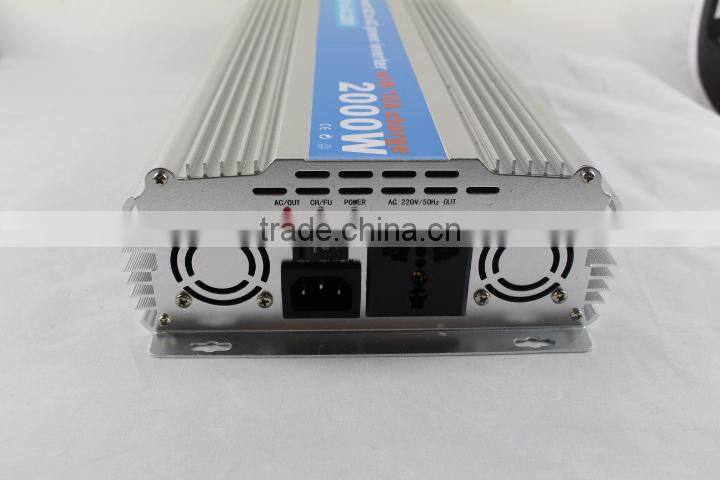

PRODUCT SHOW
Parameter Table
Rated Power | 2000W | |||||
Peak Power | 4000W | |||||
Output Voltage | 110V | 230V | 110V | 230V | 110V | 230V |
Frequency | 50/60Hz3 | |||||
USB Port | 5V,500mA(Optional) | |||||
Output Waveform | Pure Sine Wave | |||||
Protection Function | Bat.Low Voltage Alarm&Shut Down,OverLoad,Over Temperature,OverVoltage,ShortCicuit,Reverse Polarity | |||||
Input Voltage | 12V | 24V | 48V | |||
Dimension | 550*210*145mm(LWH) | |||||
N.M./unit | 9750g | |||||
QTY/Ctn | 6Pcs | |||||
Packing | Gift box | |||||
Meas./Ctn | 68.5*35*33.5cm | |||||
Warranty | 18 Months | |||||
2.Features
- High Surge: high surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads,
- Earth Fault Protection: The unit shutdown when the load has electric leakage.
- Soft start : smooth start-up of the appliances.
- Pure sine wave output waveform: clean power for sensitive loads.
- AC output identical to, and in some cases better than the power supplied by your utility
- Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
- Low total harmonic distortion: below 3%
3.Protection functions
- Low voltage alarm & Shutdown
- Over voltage protection
- Overload protection
- Over temperature protection
- Short circuit protection
- Reverse Polarity protection
- Soft start
- Auto. reset after being in protected
- Earth leakage protection
4.Applicable For:
- Power tools series: Electric Saw, Drill, Grinder, Sand blast machine, Punching machine, Air compressor etc
- Office series: Computer, Printer, LCD monitor, Scanner etc
- Household appliance series: Dust collector, Fan, Lighting, Sewing machine, TV, DVD player, Radio etc
- Kitchen appliance series: Microwave oven, Fridge, Freezer, Coffeemaker, Blander etc
Packing :
Every inverter packaging is contained necessary accessories in the same box. 2. The inverter is protected by the shaped foam, in case of the shape and hit in the process of transportation. 3. After packed by cardboard carton, we will sealed the carton by plastic film, in case of the humidity. 4. Finally, we will use packing belt to fix it.
Shipping :
7-10 working days
1.We will ship item to worldwide by DHL, FEDEX,TNT,UPS,EMS,AIR,SEA.
2.Item will be shipped out within 3 business days after cleared payment being received. After we deliver goods, we will give you tracking number.
3.Please leave us your phone number after payment and double check your shipping address,that is very helpful for shipping.
4.In order to ensure you receive you order tax free upon import, we will declare it as a 'GIFT' with a lower value. This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules. Any import charges or fees are the buyer's responsibility.
Mingwei Electronic Corporation, founded in 2003,is recognized as the leading manufacturer of industrial switching powelies in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m²,factory building 20000m².The products include AC/DC&DC/DC standard, PFC, open frame, battary charger, din rail, LED driver and custom-design switching power supplies, over 5000 models showing greating flexibility. “Mingwei” has been a famous brand in China, and incresingly well-known in world market.
OUR COMPANY
workshop
1. What are the difference between pure sine wave inverter and modified sine wave inverter?
A: The output waveform of pure sine wave inverter is as well as, even better than the 220v 50/60Hz electricity, which suitable for all electrical appliances, such as motor, refrigerator, compressor, washing machine, air conditioner etc. in addition, the pure sine wave inverter can supply stable and high quality AC with low EMI (electromagnetic interference), low noise, low THD (total harmonic distortion, less than 3%), it won’t affect the performance and life of load.
The modified sine wave inverter needs lower cost and technology, so it is cheaper .but it can’t load high power inductive load, such as motor, compressor, refrigerator, air conditioner. What’s more, the modified sine wave inverter will make the EMI for the precision equipments and communication equipments. And the THD ≤20%.
