Specifications
Bending machine
1.factory
2.Good quality
3.Very professional

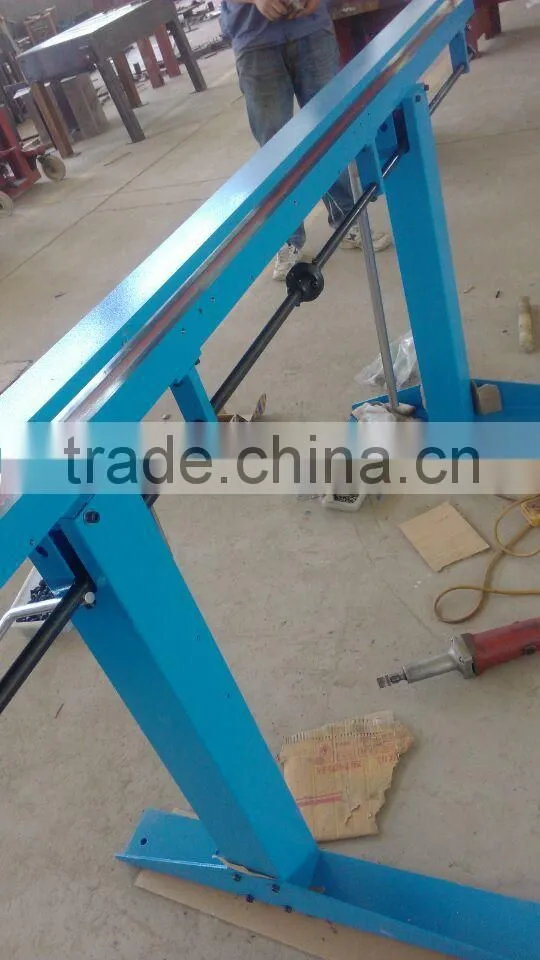

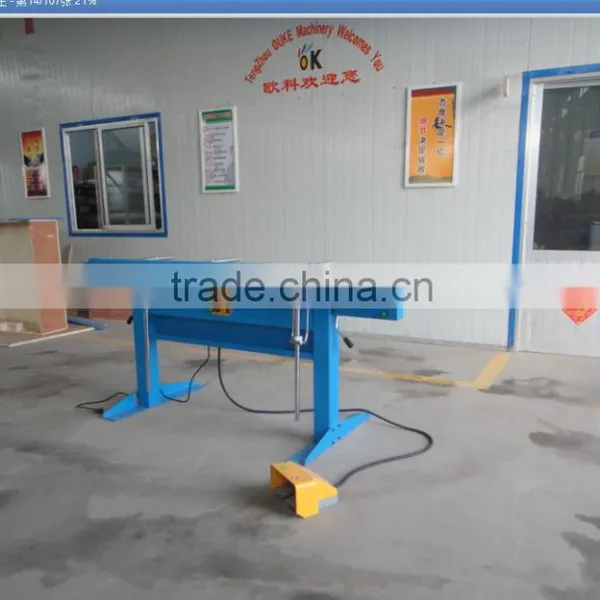

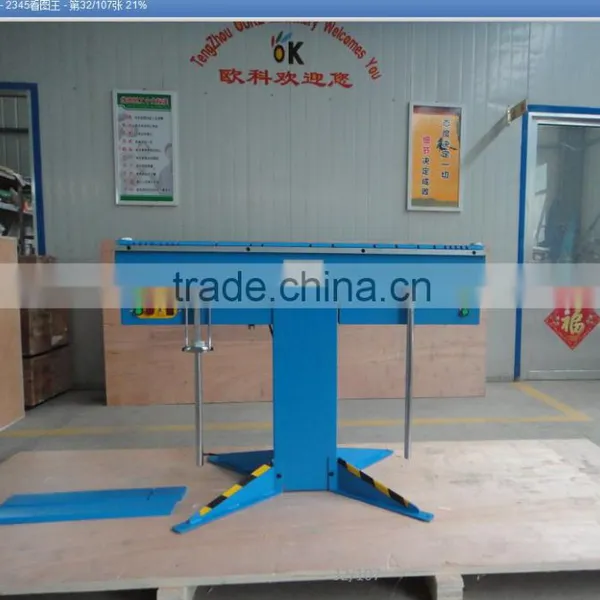

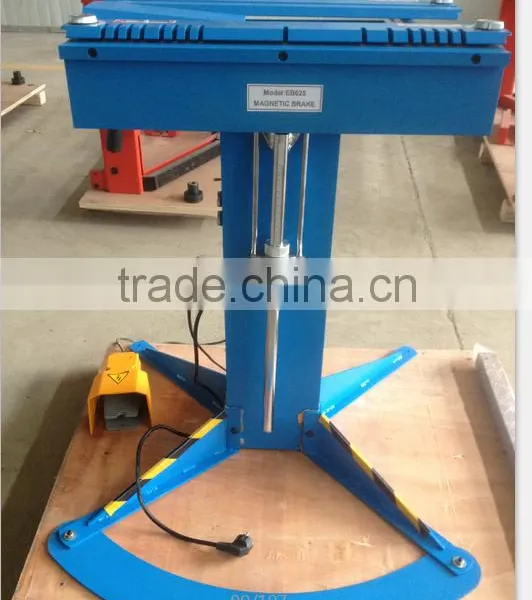

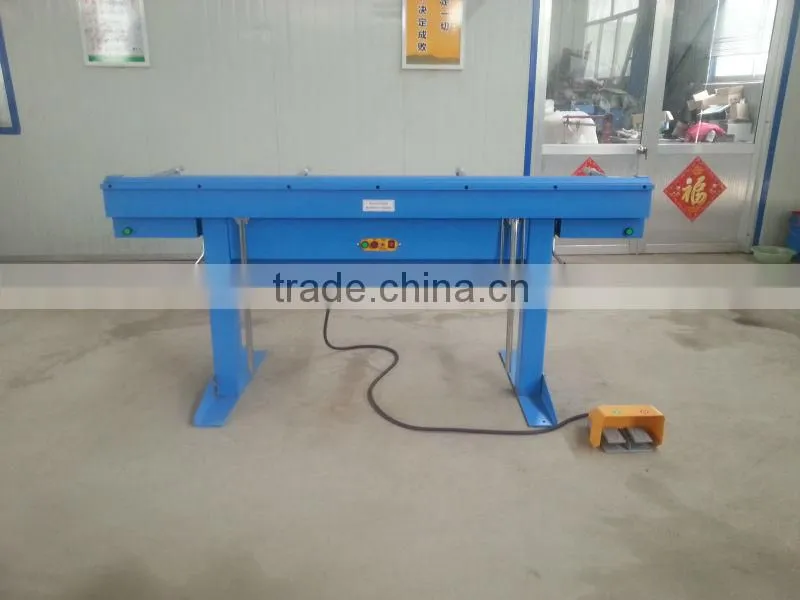

Electro magnetic bending machine EB1250 EB2500 EB3200
The fundamental principe of the MB machines models JEB 625 till JEB 3200is hat they use electromagnietic clamping. Magnetic clamping means that folding loads are taken right at the point where they are generated:forces do no have to be transferred to support structures at the ends of the machine. This in turn means that the clamping member does not need any structural bulk and hence can be made much more compact en less cumbersome. The thickniss of the clamp bar is determined only by its requirement to carry sufficient magnetic flux and not by structural considerations at all.
The unique centerless compound hinges which have been developed especially to the MB machines models.JEB 625-JEB 3200are distributed along the length of the bending beam and thus, like the clamp bar take folding loads close to where they are generated.
The combined effect of the magnetic clamping with the special centerless hinges means that the MB machnes is a very compact, space saving, machine with an extremely high strenght to weight ratio.
detailed information
Model |
EB625 |
EB1000 |
EB1250 |
EB2000 |
EB2500 |
EB3200 |
Max .length×thickness |
625×1.0mm |
1000×1.0mm |
1250×1.0mm |
2000×1.0mm |
2500×1.0mm |
3200×1.0mm |
Clamping force |
3 ton |
4.5 ton |
6 ton |
9 ton |
12 ton |
10ton |
Duty cycle |
30% |
30% |
30% |
30% |
30% |
30% |
Back gauge |
390mm |
640mm |
640mm |
640mm |
640mm |
640mm |
Foot switch |
no |
no |
standard |
standard |
standard |
standard |
Protection |
Thermal cut-out 70°C |
|||||
Nominal current |
4 amp |
6amp |
6amp |
12amp |
15amp |
15amp |
Bending -edge length |
670 |
1050 |
1300 |
2090 |
2590 |
3290 |
Distance between lifters |
630 |
1010 |
1260 |
2028 |
2528 |
3228 |
Packing size |
83×112×38cm |
120×112×38cm |
145×112×38cm |
220×112×38cm |
270×112×38cm |
340×112×38cm |
N.W/G.W |
102/127KG |
142/177KG |
175/220KG |
290/360KG |
330/420KG |
400/510KG |
Advantages:
- Much greater versatility than conventional sheet metal benders.
- No limitation to depth of boxes.
- Can form deep channels, and completely closed sections.
- Automatic clamping and unclamping means faster operation, less fatigue.
- Accurate and continuous indication of beam angle.
- Quick and accurate setting of angle stop.
- Unlimited throat depth.
- Infinite length bending in stages is possible.
- Open ended design allows folding of complex shapes.
- Machines can be ganged end-to-end for long bending.
- Adapts easily to customized tooling (clamp bars of special cross-sections).
- Self-protecting - machine cannot be overloaded.
- Neat, compact and modern design
