Specifications
1. The soft-switching inverter technology2. DSP digital control
3. The international advanced level
4. IGBT Digital Inverter
HSMH NBC(MIG/MAG) SERIES CO2 WELDING MACHINE
IGBT Inverter Mag Welding Machine (NBC)
1. Features
1. Adopt the soft switch technology, high efficiency, low power consumption.
2. Automatic protection from overcurrent, overheat, over/under voltage.
3. Support digital display and presetting of current and voltage, wide adjustment range of voltage.
4. Particular function of automatically removing melting-ball from the end of the welding wire.
5. Adopt the closed-loop system to control arc and waveform control system to adjust the arc force.
6. Suitable for low carbon steel and low alloy carbon with solid/flux-cored welding wires of different specifications.
7. Widely used in such areas as automobile, shipbuilding, bridge, petrol chemistry and construction, and so on.
8. Wire feeder is driven by four wheels, big power, and feeding wire stably.
9. Wide range of supply voltage, as wide as ±20%.
10. C type is the one with duty cycle of 100%
2. Parameter
Type Contents |
NBC-630 (MIG-630) |
Power source |
3-phase 380V/415V 50/60Hz |
Rated input current |
52A |
Rated input capacity |
34.2KVA |
Rated welding current/voltage |
630A/44V |
Welding current |
60% |
No-load voltage (MAX) |
63V |
Adjust. range of welding current |
40-630A |
Efficiency |
83% |
Power factor |
> 0.95 |
Dimensions (mm) |
651 × 356× 665 |
Time for pre-gas sending |
0~1S |
Time for delay gas sending |
0~4S |
Diameter of wire |
0.8~2.0mm solid/flux-cored wire |
Type of wire feeder |
SB-10 |
Weight of wire feeder |
6 Kg |
Length of welding torch |
3m |
Weight |
60Kg |
Air switch |
63A |
Input cable (mm 2 ) |
3× 6+1× 4 |
Protection class |
IP21 |
Insulation class |
F |

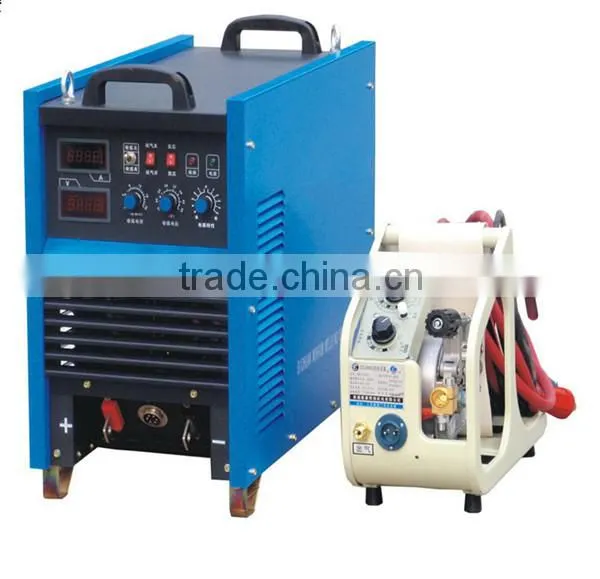

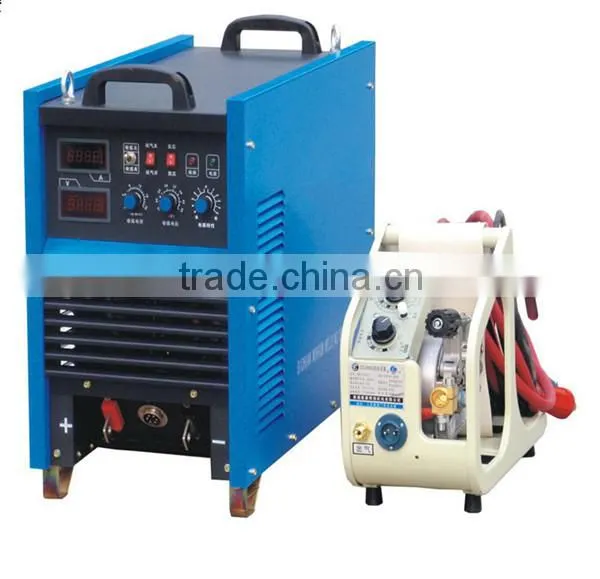

3. Product picture
4. Certificate
5. Why choose our products?
1. We mainly produce the international-advanced IGBT inverter all-digital air plasma welding machine, all-digital welding machine, industrial-level welding machine.
2. All of our products are produced in line with ISO9001:2008 quality system certificate and passed “CCC” certificate as well as the CE certificate.
3. All of these machines have such features as small in size, light in weight, energy saving, high reliability, and good welding quality, and so on.
4. We have an excellent R&D team, so we have independent IPR for all of our products. Now, we have developed many kinds of world-advanced welding machines.
5. We have developed 50 series and over 150 kinds of products. We have almost all kinds of products and can meet different requirements of different customers.
6. We have obtained the import-export operation right, and have successively exported products to Japan, India, Canada, Russia, Belarus, United Arab Emirates, Ukraine, South Africa and Vietnam, etc.
7. Our business philosophy of “Quality First, Performance First, and Service First”, we are dedicated to offering ideal welding equipment for domestic and overseas customers.
8. Support the inspection, factory inspection and welcome to visit our factory.
6. Tips for warmth
You give me a trust, I will let you surprise;
You give me a chance, I will let you satisfied;
You give me a doubt, I will warm to answer your questions;
You give me an order, I will to serve you and make you feel that your choice is correct.
7. Welcome to contact me
