Specifications
Specifications1.Japan Movt Quartz Watch Stainless Steel Back Welder2.1 year warranty
3.stable and easy to use
nical
Model:TIG160A/TIG160S/TIG200S/TIG200A/315A
AC/DC TIG200AC/DC TIG315
Mainstay invented stainless steel welder for many years, and we've never stopped developing ways to make the TIG welding better and easier.
Features:
1.small volume,light weight,it is the ideal portable double use welding equipment
2.high frequency welding arc starting and reliable arc starting performance
3.uniform and nice welding surface
4.excellent small current arc starting performance,sufficient stable welding current
5.wide working voltage range,strong resistance to power fluctuation ability.
Applications:
This hot sale TIG-315 stainless steel welder are widely used in stainless steel,aluminum,aluminum alloy,carbon steel and titanium welding,widely apply to applications such as kitchen utensils,metal furniture,chemical machinery,food machinery,medical machnery,environmental protection equipment,boiler,pressure container,vehicle making,machinery mainstain,mould making and maintaining.
Technical Data:
| Model | TIG-315A |
| Rated input voltage | AC380V±15%,3ph 50/60Hz |
| Rated Input Power | 12.8KVA |
| Rated output | 32.6V |
| Range of welding current regulation | 10-315A |
| No-load voltage | 70V |
| Duty cycle | 60% |
| Efficiency | 85% |
| Power factor | 0.93 |
| Outer covering protection rank | IP21 |
| Insulation grade | F |
| Outlook size | 540*205*305MM |
| Weight | 19KG |
| Striking the arc way | HF |
| Welding thickness | 0.3-14.0MM |
Standard parts

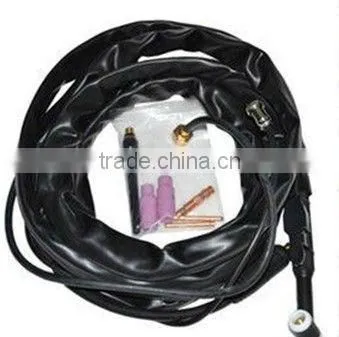

4 meters long WP-26 torch+3 meters earth clamp+holder
Options
Argon meter
Our Service:
1.with 1 year warranty for the stainless steel welder.
2.The average of our welding machine lasts between seven and eight years.If there were problems in seven days,we replace the new one for you.
