Specifications
1,Separate wire feeder2,Welding wire:1.0/1.2/1.6
3,Suitable forsolid core/flux wire

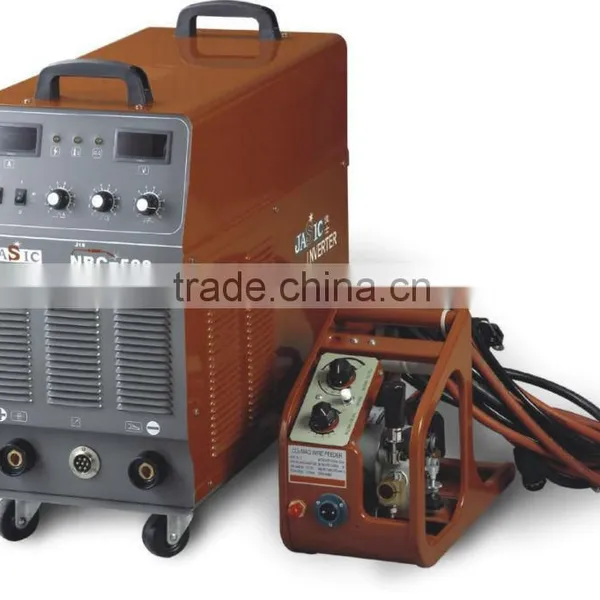

Name: MIG-250 IGBT Inverter CO2 MIG AC DC Welding Machine
| Model / Item | MIG250-- MIG Welder |
| Supply Voltage ( V ) | AC380V±10% 3ph 50/60Hz |
| Rated Intput Capacity ( KVA ) | 9.2 |
| Output Current Adjustment Range ( A ) | 50-250 |
| Output Voltage Adjustment Range ( V ) | 15-29 |
| No-load Voltage ( V ) | 50 |
| Rated Duty Cycle ( % ) | 60 |
| Type Of Wire Feeder | Intergrated |
| Speed Of Welding Wire ( m/min ) | 3-15 |
| Flow ( L/min ) | 15-20 |
| Overall Dimension ( mm ) | 510*273*440 |
| Weight ( kg ) | 26 |
| Suitable Welding Wire ( mm ) | 0.8-1.0 |
| Welding Thickness ( mm ) | 0.5-10 |
| No-load Loss ( W ) | 40 |
| Outer covering protection rank | IP21 |
| Power factor ( cos ) | 0.93 |
| Efficiency ( % ) | 85 |
| Insulation grade | B |
Details pictures:
Circuit Board:
The accessories:

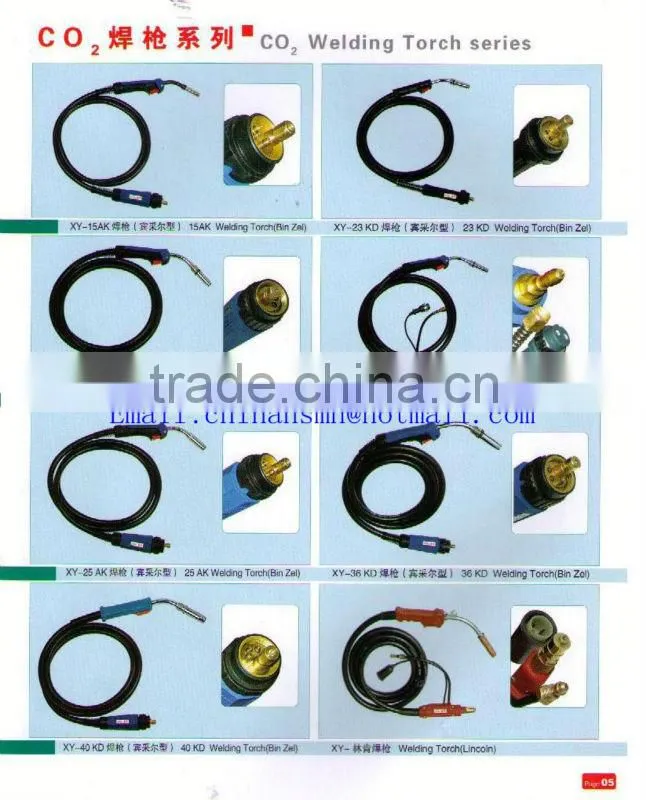

welding gun:
welding tips:
Material: Copper /CuCrZr M6 ( Φ0.6-Φ1.6)
Φ6.5*40MM
Φ6.5*45MM
Φ7.5*40MM
Φ7.5*45MM
Φ8.8*40MM
Φ8.8*45MM
Our Service:
1.with 1 year warranty for this Welder MIG .
2.The longevity is at least eight years. the Machines with quality problems can be
replaced after you purchased it within seven days
3. every parts can be provided.
Why choose HSMH welding machine?
1.We use all new components,TOSHIBA mosfet tube,FUJI rectifier,NICON capacitor and so on
imported components.
2.We are tig welding equipment MANUFACTURER factory,so we can offer better price and
after-sale service and shorter delivery date
3.We adopt SMT technology to decrease failure rate and it is convenient to repair the machine
and reduce the cost of repairing,we just have to change the bad pcb board.
4.We have successfully exported to Indonesia, Malaysia,Iran,Thailand and so on foreign
countries in all more than ten thousand of each tig welder model.We all get good
feedback.
5.For large order,our engineer can come to your country for Site Instruction.
6.We give customer 1% FREE SPARE PARTS (include pcbs with components andadditional
mosfet tube and components to support repairment.
7.We provide a FREE ONE YEAR WARRANTY for all our items
I hope I have enlightened you on some aspects of welding. If you have any
requirement,please no hesitatived to contact us.
