WELDING ELECTRODE E6013,J422,3.2mm E6013

Specifications

1)all position welding
2)a high titania potassium type coating
3)stable arc,lower spatter

 AWS welding rod E 6013

 We have various of welding wire



 1. Feature:



1)Excellent mechanical performance.

2)high depositiong speed.

3)excellent depositing efficiency.

4)Stable arc, little splash.

5)good welding seam.

6)Suitable for all-position welding work.



2.certificate



3. Application:



used fpr we;domg low carbon steel and low alloy steel structure,

such as ships, vehicles, bridges, boilers and buildings etc.



4. Specifications



1.Diameter: 2.5mm/3.2mm/4.0mm
2. Length: 300mm/350mm/400mm
3.Certificate: SGS/ BV/ISO9001-2008/ICQ/CE/SONCAP/COTECNA

Chemical Composition of the Deposited Weld Metal(%)
C	Mn	Si	S	P
≤0.12	0.30~0.60	≤0.30	≤0.035	≤0.040



Mechanical properties	Yield Point σs(MPa)	Tensile Strength σb(MPa)	Elongation δ5(%)	Akv Charpy V-notch Impact Value(J)
Typical	380	460	28	0°C	97
Specification	≥330	≥420	≥22		≥27





5. Picture for reference

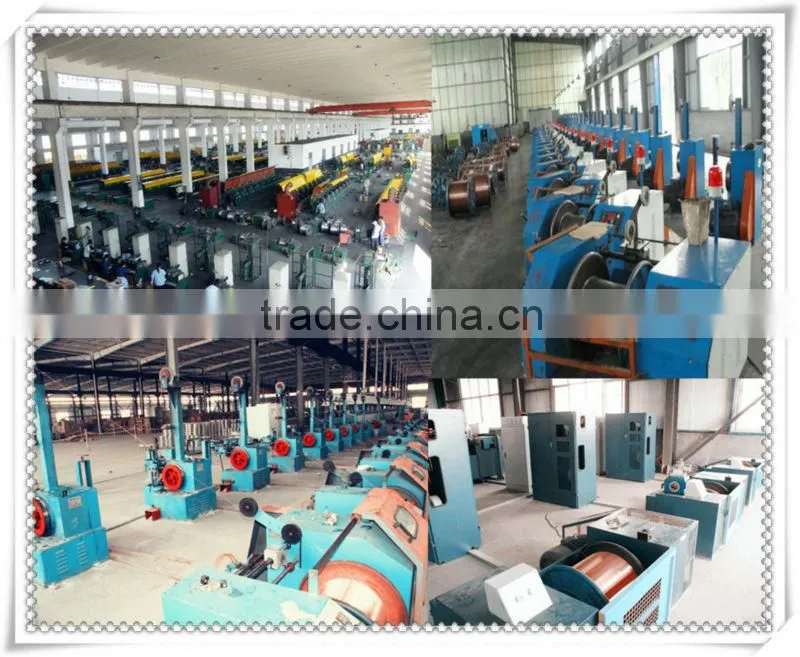

1)  factory

 2)  product



 3)  loading and transportation





4)  exhibition



6. Contact me
