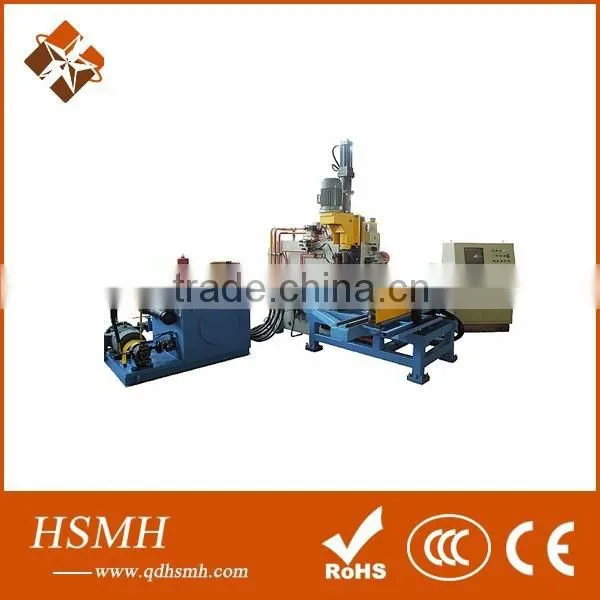

CNC Plate Punching, Marking & Drilling Machine Model PPD103

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Qingdao HSMH International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Shandong, China

Brand Name TC

Model Number PPD103

Power(W) 26kw

Weight 6700kg

Dimension(L*W*H) 3020*2522*2750mm

Certification ISO

Warranty 12 months from receiving date

After-sales Service Provided Engineers available to service machinery overseas

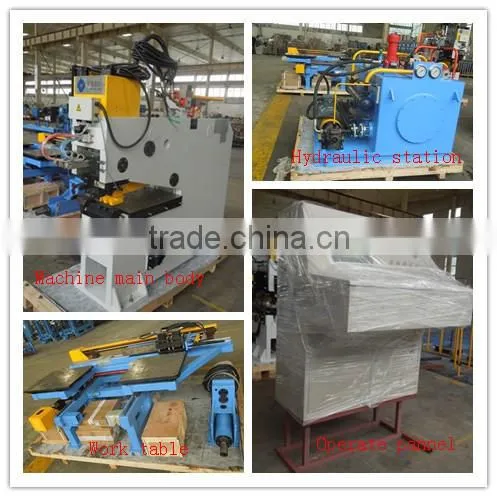

CNC Plate Punching, Marking & Drilling Machine Model PPD103

Application

Ø Mainly used in car parking system and steel towers connecting plates for drilling and punching process.
Ø The system has four working stations (two punching stations, one marking position and one drilling position). Automatic switching among this four working positions.
Ø High accuracy, speed and production efficiency for punching and drilling. Easy for transition.
Ø Applicable to single product trial-produce, also for large batch production.

Feature

Ø Open type machine main body, good rigidity and convenient for maintaining.
Ø The machine body by aging treatment, good rigidity for overall machine, not easy for deformation.
Ø Clamp system can adapt to different thickness plates.
Ø Equipped with benchmark zero block, the workpiece is supported by ball operation board.
Ø Plates were infeeded by servo motor, with high positioning accuracy.
Ø Adopt self-controlled stroke drilling power head, automatic switching between quick infeed and work infeed.
Ø Can realize the punching, drilling and marking process on one same plate, low labor tension, stable working accuracy.
Ø Mechanical, electrical, gas, hydraulic combined together, controlled by PLC, has fault self-diagnosis function.
Ø Manually programming or transfer from CAD/CAXA drawings.
