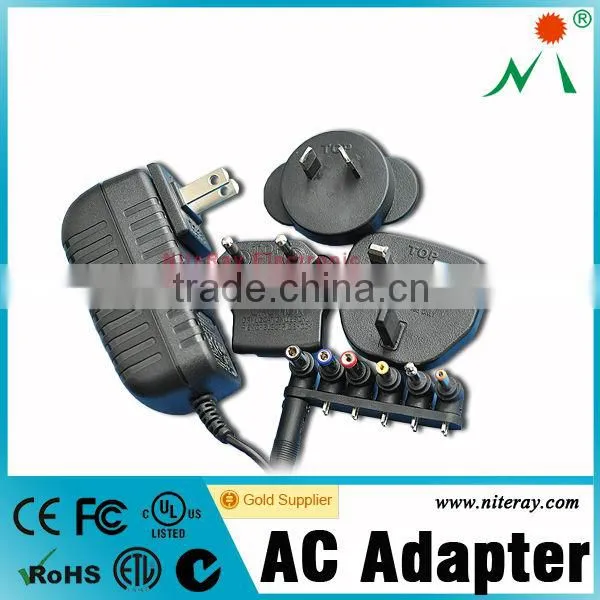

Interchange Plug ac dc Adapter 100-240v AC DC Power Adaptor 12V 2A

Interchange Plug ac dc Adapter 100-240v AC DC Power Adaptor 12V 2A thumbnail-1
Interchange Plug ac dc Adapter 100-240v AC DC Power Adaptor 12V 2A photo-1
US$ 2.5 - 5 MOQ: 1000 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiteRay
Model Number:
NR6035-INTER
Contact Supplier Request Quote Chat Now
Shenzhen NiteRay Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NiteRay
Model Number NR6035-INTER
Output Type DC
Connection Plug In

Specifications

1.interchangeable AC plug
2.EU/US/UK/AU plug
3.RoHS/CE/Ctick/UL

25W Universal Adapter with 4 types of AC pins

PRODUCT HIGHLIGHT.

  • Complete, inexpensive, self-contained
  • regulated power source
  • Super power supply, fixed frequency control circuit guarantees Stable ,long-lasting output required by any mobile Electronics, such as mobile phones , PDA, Digital camera , CDMA Digital phones, Walkie-talkie, tester machine, HUB, Modem, Scanner, Printer and much more
  • Extra safe design ,all with their respective
  • safety approvals
  • Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements
  • Light ,sleek ,and compact design
  • On-line LED power indicator
  • High efficiency circuitry that generates little heat B urn-in EMI filter

PROTECTION:

  • Short circuit protection
  • Over voltage protection
  • Over current protection
  • Thermal shutdown capability

RELIABILITY:

  • Burn-in : 100% full load ,40 ±5°C,4Hrs min
  • Leakage Current : 0.25mA max. at 254Vac
  • Withstanding Voltage :(between primary & secondary) 3000Vac 1 minute 10mA max
  • MTBF : meet MIL-HDBK-217F over 50K hours, full load,25 °C


SAFETY APPROVALS:

  • UL60950 3 rd edition CAN/CSA C22.2 NO.60950
  • EN60950:2000
  • CE(Low Voltage Directive)
  • AS/NZS 60950:2000
  • PSE IEC60950
  • GB4943-2001

EMISSIONS:

  • FCC Part15 class B
  • EN55022 class B
  • AS/NZS3548,AS/NZS4251.1 class B
  • VCCI class B
  • CNS13438 class B
  • GB9254-1998/GB17625.1-2003
  • CISPR22 class B

IMMUNITY:

  • EN55024/A1:2001
  • Electrostatic discharge:61000-4-2
  • Radiated electromagnetic fields:61000-4-3
  • Fast transients(burst):61000-4-4
  • Surge transients:61000-4-5
  • Conducted disturbance:61000-4-6
  • Voltage dips, interruptions&variations:61000-4-11

Electrical Specifications: (Absolute Maximum Rating)

Description Symbol Min Typ Max Units Comment
Input
Voltage V IN 90 120/240 264 V AC 2 Wire no Protective Ground
Frequency F LINE 47 50/60 63 Hz
No-load Input Power(230VAC)       0.5 W
Efficiency η   75   %
Inrush Current(240Vac) I   40   A Cold 25 o C
Environmental
Operating Temperature T 0 / 40 o C Free convection, Sea level
Non-operating temperature T -20 / 80 o C Free convection, Sea level
Operating humidity T 10 / 90 %RH Non condensing
Non-operating humidity T 10 / 90 %RH Non condensing

Typical model list:

INPUT CONDITION DC OUTPUTVOLTAGE DC OUTPUTCURRENT OUTPUT VOLTAGEPRECISION RIPPLE&NOISES REGULATION MAXIMALOUTPUTPOWER
LINE LOAD
Input voltage: 90-264VacFrepuency: 47-63Hz Inputcurrent: 0.6A 1 3.0-4.0V 0.1-4.0A 6% 100 mV ± 1% ± 5% 16W
2 4.1-6.0V 0.08-4.0A 6% 100 mV ± 1% ± 5% 24W
3 6.1-6.9V 0.07-4.1A 6% 100 mV ± 1% ± 5% 25W
4 7.0-8.0V 0.06-3.57A 5% 100 mV ± 1% ± 5% 25W
5 8.1-9.0V 0.055-3.09A 5% 100 mV ± 1% ± 5% 25W
6 9.1-10.0V 0.05-2.75A 5% 100 mV ± 1% ± 5% 25W
7 11.1-11.9V 0.04-2.25A 5% 100 mV ± 1% ± 5% 25W
8 12.0-17.9V 0.04-2.5A 5% 100 mV ± 1% ± 5% 30W
9 18.2-22.0V 0.035-1.67A 5% 100 mV ± 1% ± 5% 30W
10 22.1-30.0V 0.03-1.36A 5% 100 mV ± 1% ± 5% 30W
11 30.5-31.0V 0.025-0.98A 5% 150 mV ± 1% ± 5% 30W
12 31.5-48.0V 0.02-0.95A 5% 150 mV ± 1% ± 5% 30W
REMARK: ( ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1uF ceramic disk capacitor and a 10uF electrolytic Capacitor to simulate system loading.
