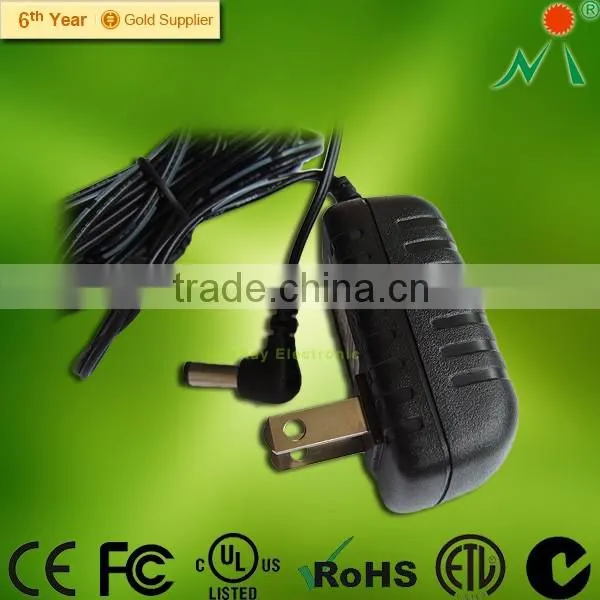

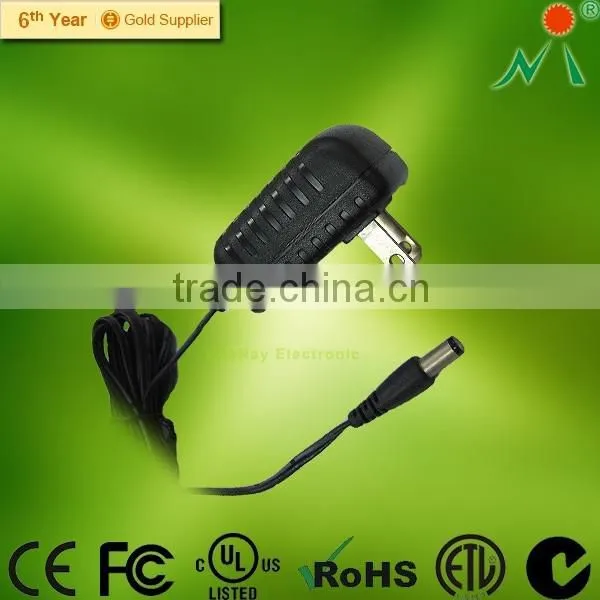

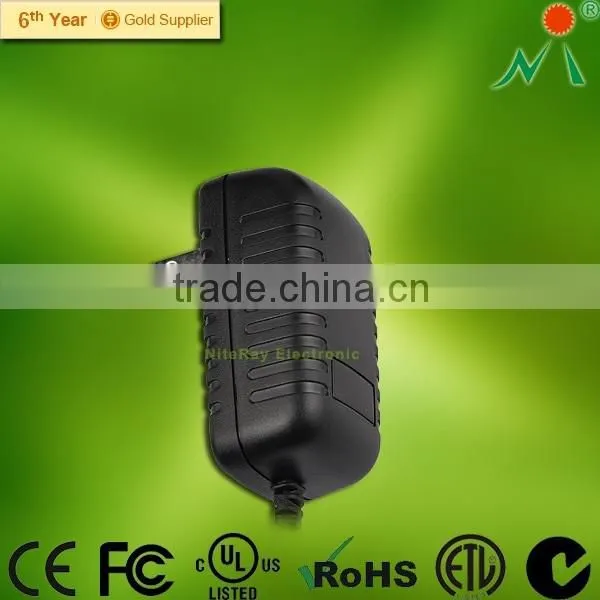

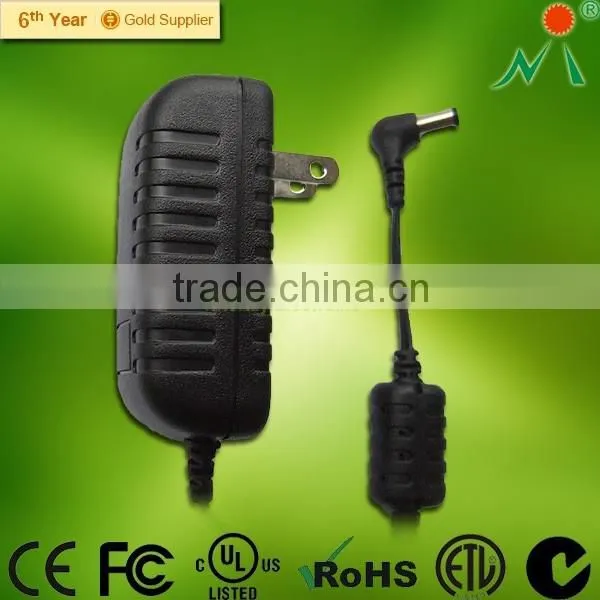

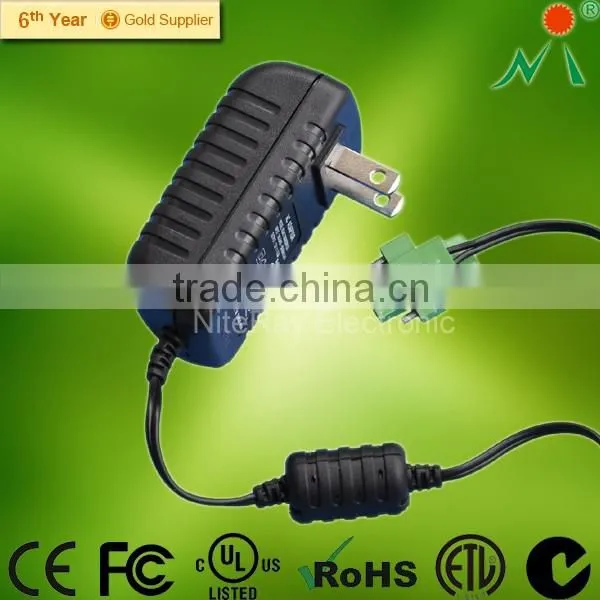

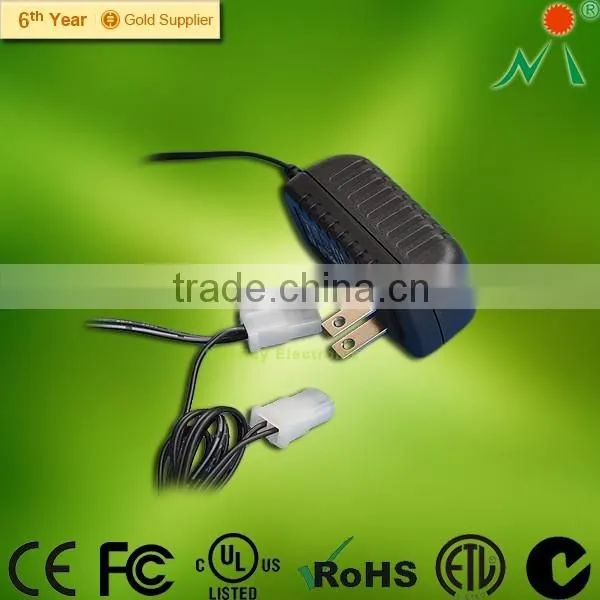

US plug AC Adapter
PRODUCT HIGHLIGHT:
PROTECTION:
RELIABILITY:
|
SAFETY APPROVALS:
EMISSIONS:
IMMUNITY:
|
Electrical Specifications: (Absolute Maximum Rating)
| Description | Symbol | Min | Typ | Max | Units | Comment | |
| Input | |||||||
| Voltage | VIN | 90 | 120/240 | 264 | VAC | 2 Wire no Protective Ground | |
| Frequency | FLINE | 47 | 50/60 | 63 | Hz | ||
| No-load Input Power(230VAC) | 0.3 | W | |||||
| Efficiency | η | 75 | % | ||||
| Inrush Current(240Vac) | I | 40 | A | ||||
| Environmental | |||||||
| Operating Temperature | T | 0 | / | 40 | oC | Free convection, Sea level | |
| Non-operating temperature | T | -20 | / | 80 | oC | Free convection, Sea level | |
| Operating humidity | T | 10 | / | 90 | %RH | Non condensing | |
| Non-operating humidity | T | 10 | / | 90 | %RH | Non condensing | |
Typical model list:
| INPUT CONDITION | DC OUTPUT VOLTAGE | DC OUTPUTCURRENT | OUTPUT VOLTAGE PRECISION | RIPPLE &NOISES | REGULATION | MAXIMALOUTPUT POWER | ||
| LINE | LOAD | |||||||
| Input Voltage: 90-264Vac Frequency: 47-63Hz Input current: 0.3A |
1 | 21-24V | 0-0.57A | 5% | 150mV | ±1% | ±5% | 12W |
| 2 | 16-20V | 0-0.75A | 5% | 150mV | ±1% | ±5% | 12W | |
| 3 | 10-15V | 0-1.2A | 5% | 100mV | ±1% | ±5% | 12W | |
| 4 | 9.4-9.9V | 0-1.06 A | 5% | 100mV | ±1% | ±5% | 10W | |
| 5 | 8.8-9.3V | 0-1.14A | 5% | 80mV | ±1% | ±5% | 10W | |
| 6 | 8.2-8.7V | 0-1.22A | 5% | 80mV | ±1% | ±5% | 10W | |
| 7 | 7.6-8.1V | 0-1.32A | 5% | 70mV | ±1% | ±5% | 10W | |
| 8 | 7.0-7.5V | 0-1.43A | 5% | 70mV | ±1% | ±5% | 10W | |
| 9 | 6.4-6.9V | 0-1.56A | 5% | 60mV | ±1% | ±5% | 10W | |
| 10 | 5.8-6.3V | 0-1.72A | 5% | 60mV | ±1% | ±5% | 10W | |
| 11 | 5.2-5.7V | 0-1.92A | 5% | 60mV | ±1% | ±5% | 10W | |
| 12 | 4.6-5.1V | 0-2.17 A | 5% | 50mV | ±1% | ±5% | 9.2W | |
| 13 | 4.0-4.5V | 0-2.0A | 5% | 50mV | ±1% | ±5% | 9W | |
| 14 | 3.4-3.9V | 0-2.0A | 5% | 50mV | ±1% | ±5% | 7.8W | |
| 15 | 2.8-3.3V | 0-2.0A | 5% | 50mV | ±1% | ±5% | 6.6W | |
| REMARK: (ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1u F ceramic disk capacitor and a 10u F electrolytic Capacitor to simulate system loading. | ||||||||
AC/DC power supply adapter, except U.K plug, EU, US,AU plugs are available :

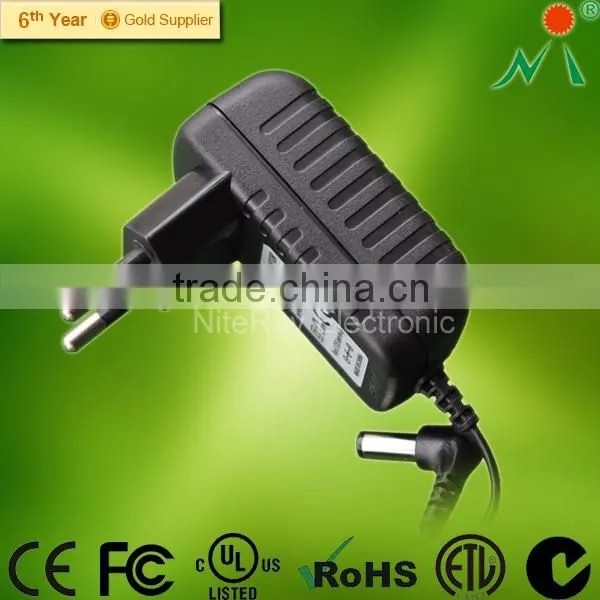

EU plug: CE approval,RoHs compliance, Efficiency VI :

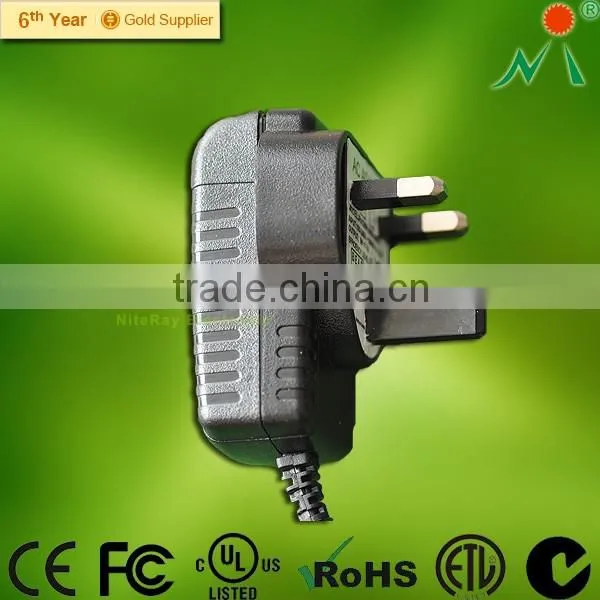

UK plug: BEAB approval,RoHs compliance, Efficiency VI :

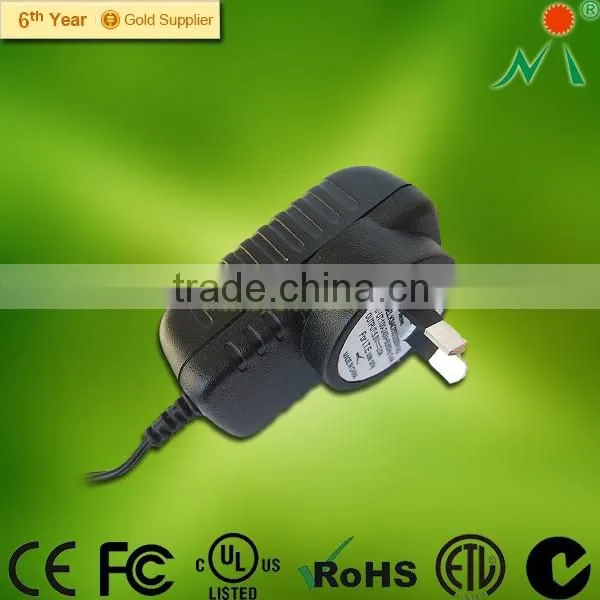

AU plug: SAA /C-Tick approval, RoHs compliance, Efficiency VI :

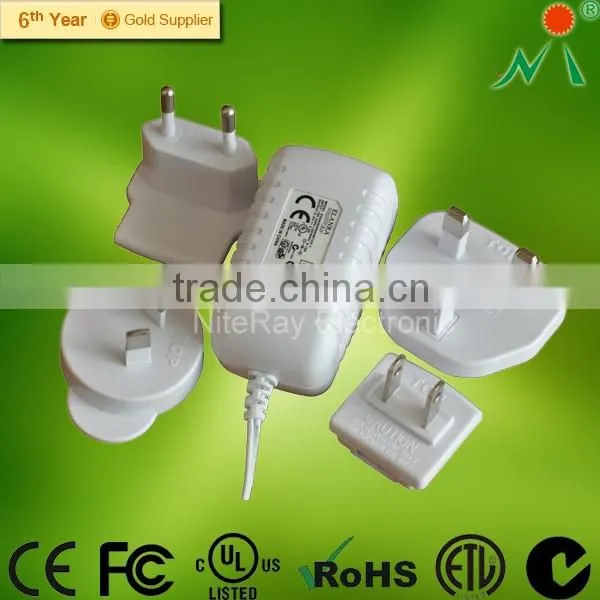

Or you may need one adapter with changeable plugs so that can use in any country , this is also our major product, with UL / FCC / CE / BEAB / SAA /C-Tick approval,RoHs compliance, Efficiency VI :

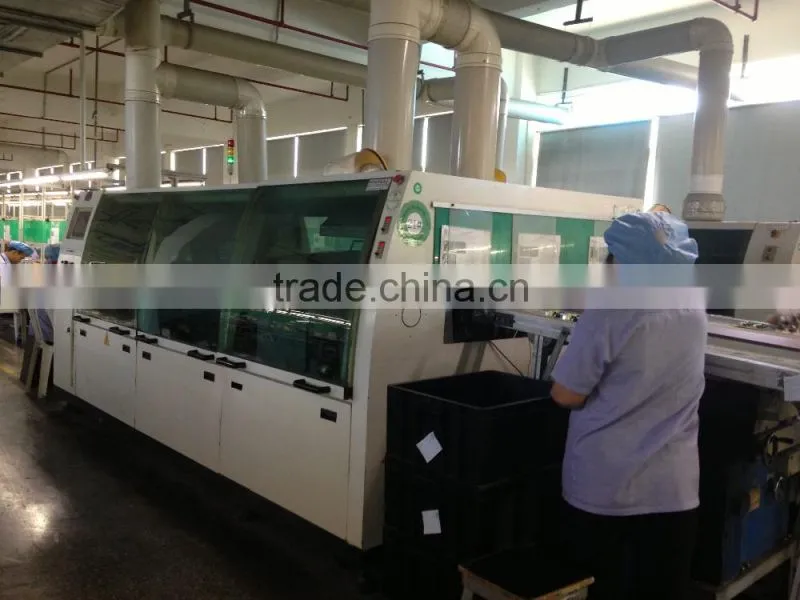

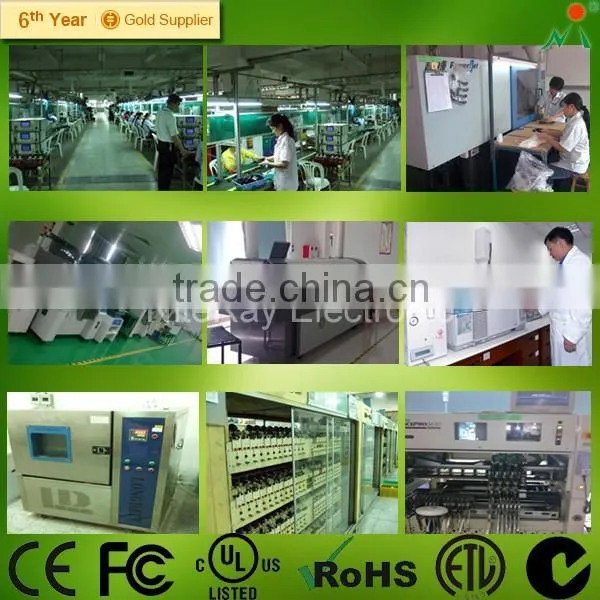

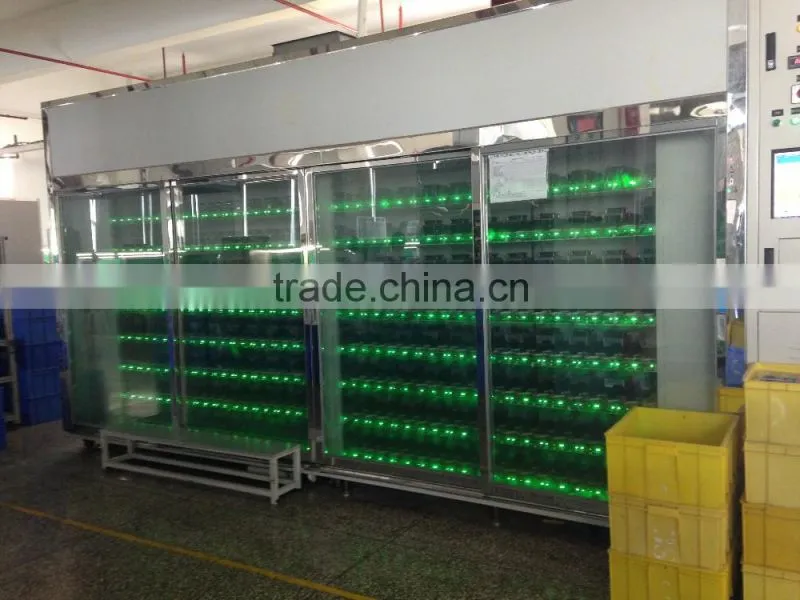

AC adapter manufacturer overview:
Packaging & Shipping
Packing Information
Plastic bag+White box, 100pcs in one carton, we also can offer customized packing requirements service.
Shipment Terms
1. All samples will be shipped out within 3- 5 working days after payment receive.
2. DHL / FEDEX / UPS / EMS / TNT / China Post .
Payment Terms
We accept T/T, PayPal, Western Union, MoneyGram and others
Our Services
Best After-Sales Service
Warranty: 1 year
Logo printing,OEM,ODM services available
Factory defective rate: around 0.3%
Made by pure material/copper
How to get samples?
1 If you have a DHL/Fedex/UPS/TNT account.Factory offer 1-3 free samples,If all orders quantity over 5K, we'll return you express fee.
2.If you don't have express account ,usually you need pay express fee to our Paypal account or T/T, we offer 1-3 free samples. If all orders quantity over 5K, we'll return you express fee.
3. If samples over 5pcs, it need charge samples cost, it's 1.1times base on quoation.
Company Information
NiteRay Electronic Co.Lted was founded in 2005, we are a professional manufacturer in AC/DC switching power supply adapter and DC/DC Car Charger / adapter, GPS Accessories. High quality is our obligation, all of products have gained CE / UL / ETL / FCC / BEAB / SAA / C-Tick / PSE / RoHS / REACH /efficiency VI etc. certificates. Main customers came from U.S.A, Brazil, U.K, Australia, Canada, EU countries . Our products enjoy a good reputation among our customers, We'll continuous provide a high quality products and perfect service for customers !
Main Products
AC/DC switching power supply adapter , DC/DC Car Charger / adapter, USB Home/ Wall Charger/Adapter, Power Adapter, USB travel charger, USB Car Charger/Adapter and GPS Mount,Car Holder,Friction Mount .
FAQ
Q1: What’s the difference between an adapter and a charger
A1: Basically, chargers and adapters do very similar things, but there is a difference. For example, laptops require chargers, as they usually require more power than USB adapters can provide.
Q2: What if I have a technical issue
A2: Any issues can be handled by contacting our customer support via the email provided or in our contact box on this page.
Q3: What warranty comes with the unit?
A3: All products come with a 12 months replacement warranty. In the unlikely event your unit fails within the first 12 months, return to us and we will replace providing authorized returns policies are met.
Q4: Can I print my brand logo on the chargers?
A4: Sure, OEM is available. Lazer printing and silk printing can be offered
Q5:What's your minimum order quantity?
A5: Our MOQ is 500 pcs per model. Welcome to test sample first. Less than 500pcs, we also can accept, but it need increase a little cost as sample treatment.
Q6: What package do you have for the products?
A6: PE bag,Zip Ploy bag,Sealed bubble bag, Blister package, Color window box package.
Customized package is available based on certain MOQ.
Q7: Which shipment available?
A7: Normally, we ship goods by sea, air and express (DHL,UPS,FEDEX,TNT,EMS....).
Special requirement also acceptable
