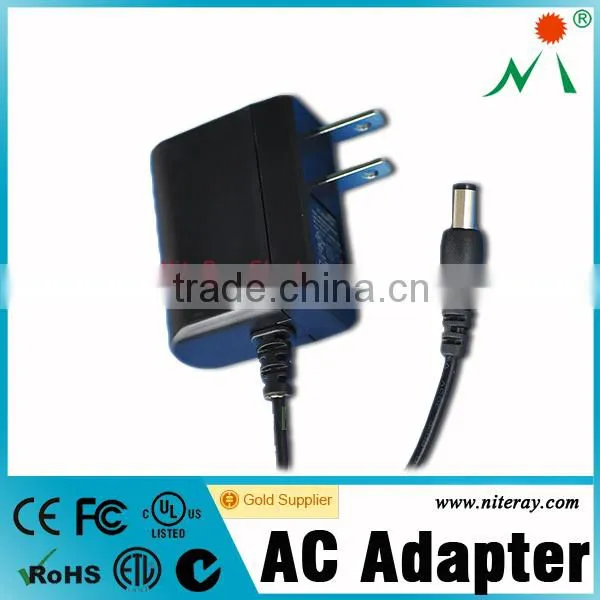

US AC PINS Travel Adapter Usb

US AC PINS Travel Adapter Usb thumbnail-1
US AC PINS Travel Adapter Usb photo-1
US$ 2.5 - 5 MOQ: 1000 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NiteRay
Model Number:
NR6035-INTER
Contact Supplier Request Quote Chat Now
Shenzhen NiteRay Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NiteRay
Model Number NR6035-INTER
Output Type DC
Connection Plug In

Specifications

1.Wall plug adapter
2.US plug
3.RoHS/UL

Wall plug 10W AC DC adapter

PRODUCT HIGHLIGHT:

  • Complete, inexpensive, self-contained regulated power source
  • Super power supply, fixed frequency control circuit guarantees Stable ,long-lasting output required by any mobile Electronics, such as mobile phones ,PDA, Digital camera , CD/MP3 player , Walkie-talkie, tester machine, HUB, Modem, Scanner, Printer and much more
  • Extra safe design ,all with their respective safety approvals
  • Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements.
  • Light ,sleek ,and compact design.
  • On-line LED power indicator.
  • High efficiency circuitry that generates little heat.
  • urn-in EMI filter.

PROTECTION:

  • Short circuit protection.
  • Over voltage protection.
  • Over current protection.
  • Thermal shutdown capability.

RELIABILITY:

  • Burn-in: 100% full load ,40±5°C,4Hrs min.
  • Leakage Current: 0.25mA max. at 254Vac.
  • Withstanding Voltage:
    3000Vac 1 minute 10mA max.
  • MTBF: meet HDBK-217F over 50K hours, full load,25°C

SAFETY APPROVALS:

  • UL60950 3rd editionCAN/CSA C22.2 NO.60950
  • EN60950:2000
  • CE(Low Voltage Directive)
  • AS/NZS 60950:2000
  • PSE IEC60950
  • GB4943-2001

EMISSIONS:

  • FCC Part15 class B
  • EN55022 class B
  • AS/NZS3548,AS/NZS4251.1 class B
  • VCCI class B
  • CNS13438 class B
  • GB9254-1998/GB17625.1-2003
  • ISPR22 class B

IMMUNITY:

  • EN55024/A1:2001
  • Electrostatic discharge:61000-4-2
  • Radiated electromagnetic fields:61000-4-3
  • Fast transients(burst):61000-4-4
  • Surge transients:61000-4-5
  • Conducted disturbance:61000-4-6
  • Voltage dips, interruptions & variations:61000-4-11


Electrical Specifications: (Absolute Maximum Rating)

Description Symbol Min Typ Max Units Comment
Input
Voltage VIN 90 120/240 264 VAC 2 Wire no Protective Ground
Frequency FLINE 47 50/60 63 Hz
No-load Input Power(230VAC)       0.3 W
Efficiency η   75   %
Inrush Current(240Vac) I   40   A
Environmental
Operating Temperature T 0 / 40 oC Free convection, Sea level
Non-operating temperature T -20 / 80 oC Free convection, Sea level
Operating humidity T 10 / 90 %RH Non condensing
Non-operating humidity T 10 / 90 %RH Non condensing


Typical model list:

INPUT CONDITION DC OUTPUT VOLTAGE DC OUTPUTCURRENT OUTPUT VOLTAGE PRECISION RIPPLE &NOISES REGULATION MAXIMALOUTPUT POWER
LINE LOAD
Input Voltage:
90-264Vac
Frequency:
47-63Hz
Input current:
0.3A		 1 21-24V 0-0.57A 5% 150mV ±1% ±5% 12W
2 16-20V 0-0.75A 5% 150mV ±1% ±5% 12W
3 10-15V 0-1.2A 5% 100mV ±1% ±5% 12W
4 9.4-9.9V 0-1.06 A 5% 100mV ±1% ±5% 10W
5 8.8-9.3V 0-1.14A 5% 80mV ±1% ±5% 10W
6 8.2-8.7V 0-1.22A 5% 80mV ±1% ±5% 10W
7 7.6-8.1V 0-1.32A 5% 70mV ±1% ±5% 10W
8 7.0-7.5V 0-1.43A 5% 70mV ±1% ±5% 10W
9 6.4-6.9V 0-1.56A 5% 60mV ±1% ±5% 10W
10 5.8-6.3V 0-1.72A 5% 60mV ±1% ±5% 10W
11 5.2-5.7V 0-1.92A 5% 60mV ±1% ±5% 10W
12 4.6-5.1V 0-2.17 A 5% 50mV ±1% ±5% 9.2W
13 4.0-4.5V 0-2.0A 5% 50mV ±1% ±5% 9W
14 3.4-3.9V 0-2.0A 5% 50mV ±1% ±5% 7.8W
15 2.8-3.3V 0-2.0A 5% 50mV ±1% ±5% 6.6W
REMARK: (ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1u F ceramic disk capacitor and a 10u F electrolytic Capacitor to simulate system loading.
